PARPAS – Milling Machine – ELECTRA

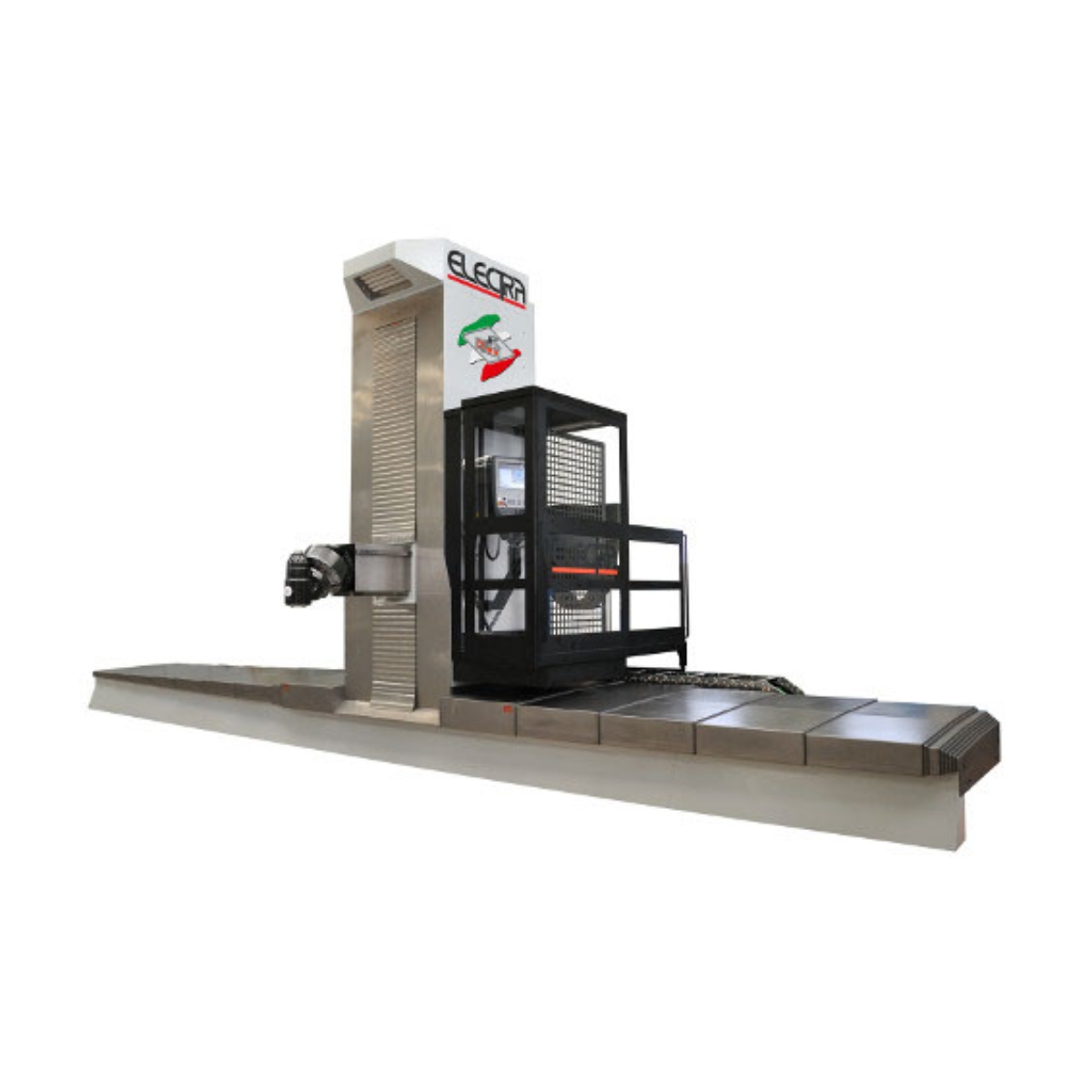

FORMULA floor type milling machine
Product Introduction
ELECTRA is a very versatile floor type high dynamic milling machine featuring high technology solutions. Wide range of configurations on multiple axis, modularity on travels and various accessories (milling heads, heads auto change, rotary tables, ATCs, automation). The machine is ideal for roughing and finishing operation on medium and large parts and can be installed in mould and die operations, aeronautic and power generation industry as well as in general job shops.
Thermal Management
Thanks to patented technological solutions, the thermal management system ensures a continuous and reliable level of precision in environments subject to thermal variations.
Mould & Dies
TMI:Head with 2 index axes every 2.5 °.Completely cooled with the field of the spindle speed up to 7000 rpm
TMT:Head-to-2-axis of new conception driven by torque motors withcontinuous and contemporary positioning (0.001°) to minimize the times of the working cycle. Completely cooled with the field of the spindle speed up to 7000 rpm
TPM:Head spindle extension 400 or 700 mm Diameter Ø 185 mm Cooled and with the field of the spindle speedup to 4000 rpm
Technical Specifications
| ELECTRA | |
|---|---|
| 横向行程 | 4000 – 14000 mm |
| 纵向行程 | 1400 mm |
| 垂直行程 | 2100 • 2600 mm |
| 进给 | 0 – 35000 mm/1′ |
| 主轴功率 | 30 • 63 Kw |
Key Features
Structures
High-speed milling machine with mobile column and high dynamics that offer innovative solutions and state-of-the-art performances.
The machine structures are engineered with the aid of powerful calculation and analysis software.
In order to provide a high dynamic control for the machine, its structures are built using steel alloys that offer higher rigidity, on an equal mass basis, compared to conventional materials such as cast iron. The result is a machine that combines high precision and rigidity together withoutstanding dynamics performances.
Every machine structure undergoes a stress relief heat treatment that helps eliminating the tensions deriving from manufacturing processes.
The linear guide ways, on which roller runner blocks glide, are generously dimensioned and anchored directly to the structure.
