Ortoalresa – Microcentrifuge – Biocen 22 & Biocen 22 R
The Biocen 22 centrifuge is our offer for users requiring a microcentrifuge with possible applications for microhematocrit and microtubes.
Available Models
The Biocen 22 centrifuge is our offer for users requiring a microcentrifuge with possible applications for microhematocrit and microtubes. Its small size, good performance and great versatility make it an essential tool. It gives the user complete control from the beginning of the process and many values can be customised according to the processes. Built to ensure the minimum increase of temperature inside the chamber due to the high-speed centrifugation process.
We know how important a sample is as a part of a process and therefore we try to interfere as little as possible to avoid interference and ensure a precise, exact, reliable and rapid result.
Key Features
LED screen
- Shows RPM/ RCF and time.
- Speed programming in 50 RPM/ 10 xg steps.
- Timer countdown/up from “0” or at “set RPM/RCF” for reproducible tests.
- Timer from 1 to 99 min. programmable in 1 min.steps and hold position.
- Acceleration and deceleration control in 3 steps:fast, soft and free.
- Acoustic and visual messages on screenshowing the user the status of the equipment.
Easy to use
- Microprocessor controlled.
- Induction motor maintenance free (brushless).
- Rotors list in memory.
- Noise level: below 60 dB.
- Start, stop, open lid and short spin with adjustablespeed buttons.
- Option of free/locked adjustment of RPM/ RCFalong the run.
- Automatic lid opening, programmable.
- Low height for easy access.
- Last values remain in memory.
- Over-speed protection.
Safety
- Lid provided with security systems:
– Automatic lid lock system, motorized.
– Emergency lid-lock release.
– Locking and protection against opening along the run.
– Lid dropping protection.
– Port in the lid for calibration and operation checking. - Ergonomic design that allows close the lid effortless.
- Unbalance detection and switch off.
- Protection safety ring between thecentrifugation chamber and the housing.
- Chamber of centrifugation in stainless steel(easy cleaning).
- Rotors can be removed with the lid closed.Hermetic lids.
- Rotors and adapters autoclavable, easy toinstall by the user.
- Forced ventilation to reduce temperatureincreasing
- Automatic disconnection for energy saving,with deactivation option.
Standards and Directives
- EU Directives: 2011/65/EU, 2012/19/EU, 2014/30/EU, 2014/35/EU, 98/79/EC.
- Standards: EN 61010-1, EN 61010-2-101, EN 61010- 2-020, EN 61326-2-6,EN 61326-1.

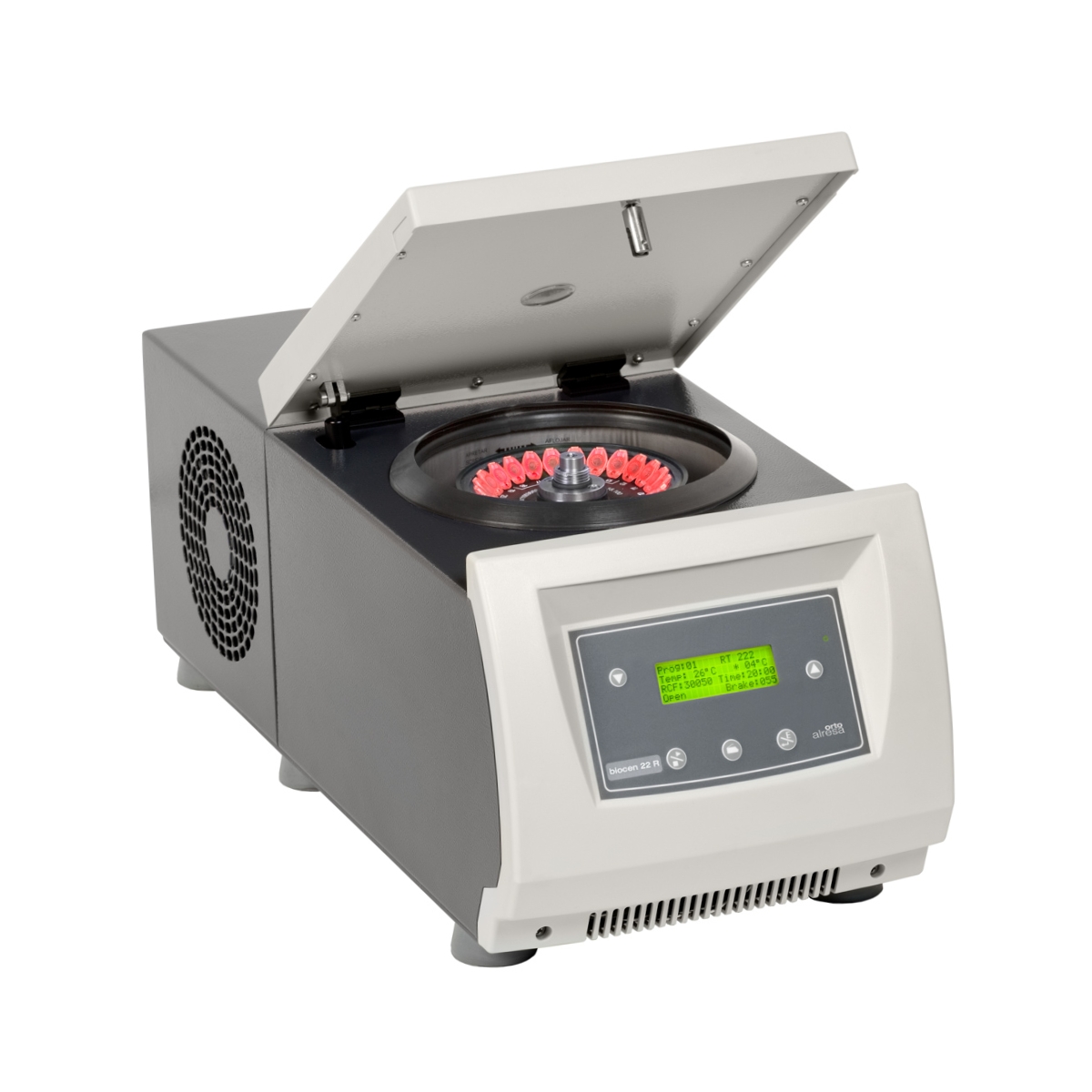

One of the best options when high speed and different tube formats are required. This refrigerated microcentrifuge, which has a wide range of rotors for a cooled centrifuge, can work with conical type tubes from 0,2 ml. to 15 ml. Dynamic cooling equipment keeps the desired temperature, reaching it in a short period of time and maintaining it stable throughout the whole cycle, regardless of the operation speed. Customisation of equipment options through the software enables you to adapt the work cycles to the process as well as the user preferences, thus optimising performance in your laboratory.
For Ortoalresa, the Biocen 22 R centrifuge is the culmination of its know-how in centrifugation, materialised for the user in a robust, versatile and efficient piece of equipment that integrates perfectly into any lab, highlighting its application in research and biotechnology.
Key Features
LCD screen
- Shows RPM and RCF, time, temperature and acceleration/deceleration (PCBS).
- Speed programming in 10 RPM/ 10 xg steps.
- Timer countdown/up from “0” or at “set RPM/RCF” for reproducible tests.
- Timer: from 5 sec. to 99 minutes or from 1 min. to99 hours and indefinite time.
- PCBS: Progressive controlled braking system upto 175 selectable ramps that prevents samplehomogenization after separation.
- 16 programmable memories.
- Several acoustic and visual messages showingthe user the situation of the device.
Easy to use
- Microprocessor controlled.
- Induction motor maintenance free (brushless).
- Rotors list in memory.
- Noise level: below 65 dB.
- Start, stop, open lid and short spin with adjustablespeed buttons.
- Option of free/locked adjustment of RPM/ RCFalong the run.
- Low height for easy access.
- Last values remain in memory.
- Automatic rotor recognition. Over-speedprotection.
Safety
- Lid provided with security systems:
– Automatic lid lock system, motorized with double lock.
– Emergency lid-lock release.
– Locking and protection against opening along the run.
– Lid dropping protection.
– Port in the lid for calibration and operation checking. - Ergonomic design that allows close the lid effortless.
- Unbalance detection and switch off.
- Protection safety ring between thecentrifugation chamber and the housing.
- Chamber of centrifugation in stainless steel(easy cleaning).
- Rotors can be removed with the lid closed.Hermetic lids.
- Rotors and adapters autoclavable, easy toinstall by the user.
- Automatic disconnection for energy saving up to 8 h.
Cooling
- Maintains the refrigeration after the centrifugation process.
- Precooling program with rotor spinning and selectable temperature.
- Guarantees 4 °C at maximum RPM.
- Temperature range from -20°C (-4°F) to 40°C (104°F) in 1°C steps.
- Temperature sensor inside the chamber.
- Gas R 449A HFO (CFC free).
Standards and Directives
- EU Directives: 2011/65/EU, 2012/19/EU, 2014/30/EU, 2014/35/EU, 98/79/EC.
- Regulation n°: (EC) 1005/2009, (EU) 517/2014.
- Standards: EN 61010-1, EN 61010-2-101, EN 61010- 2-020, EN 61326-2-6, EN 61326-1.
Available Models
The Biocen 22 centrifuge is our offer for users requiring a microcentrifuge with possible applications for microhematocrit and microtubes. Its small size, good performance and great versatility make it an essential tool. It gives the user complete control from the beginning of the process and many values can be customised according to the processes. Built to ensure the minimum increase of temperature inside the chamber due to the high-speed centrifugation process.
We know how important a sample is as a part of a process and therefore we try to interfere as little as possible to avoid interference and ensure a precise, exact, reliable and rapid result.
Key Features
LED screen
- Shows RPM/ RCF and time.
- Speed programming in 50 RPM/ 10 xg steps.
- Timer countdown/up from “0” or at “set RPM/RCF” for reproducible tests.
- Timer from 1 to 99 min. programmable in 1 min.steps and hold position.
- Acceleration and deceleration control in 3 steps:fast, soft and free.
- Acoustic and visual messages on screenshowing the user the status of the equipment.
Easy to use
- Microprocessor controlled.
- Induction motor maintenance free (brushless).
- Rotors list in memory.
- Noise level: below 60 dB.
- Start, stop, open lid and short spin with adjustablespeed buttons.
- Option of free/locked adjustment of RPM/ RCFalong the run.
- Automatic lid opening, programmable.
- Low height for easy access.
- Last values remain in memory.
- Over-speed protection.
Safety
- Lid provided with security systems:
– Automatic lid lock system, motorized.
– Emergency lid-lock release.
– Locking and protection against opening along the run.
– Lid dropping protection.
– Port in the lid for calibration and operation checking. - Ergonomic design that allows close the lid effortless.
- Unbalance detection and switch off.
- Protection safety ring between thecentrifugation chamber and the housing.
- Chamber of centrifugation in stainless steel(easy cleaning).
- Rotors can be removed with the lid closed.Hermetic lids.
- Rotors and adapters autoclavable, easy toinstall by the user.
- Forced ventilation to reduce temperatureincreasing
- Automatic disconnection for energy saving,with deactivation option.
Standards and Directives
- EU Directives: 2011/65/EU, 2012/19/EU, 2014/30/EU, 2014/35/EU, 98/79/EC.
- Standards: EN 61010-1, EN 61010-2-101, EN 61010- 2-020, EN 61326-2-6,EN 61326-1.
One of the best options when high speed and different tube formats are required. This refrigerated microcentrifuge, which has a wide range of rotors for a cooled centrifuge, can work with conical type tubes from 0,2 ml. to 15 ml. Dynamic cooling equipment keeps the desired temperature, reaching it in a short period of time and maintaining it stable throughout the whole cycle, regardless of the operation speed. Customisation of equipment options through the software enables you to adapt the work cycles to the process as well as the user preferences, thus optimising performance in your laboratory.
For Ortoalresa, the Biocen 22 R centrifuge is the culmination of its know-how in centrifugation, materialised for the user in a robust, versatile and efficient piece of equipment that integrates perfectly into any lab, highlighting its application in research and biotechnology.
Key Features
LCD screen
- Shows RPM and RCF, time, temperature and acceleration/deceleration (PCBS).
- Speed programming in 10 RPM/ 10 xg steps.
- Timer countdown/up from “0” or at “set RPM/RCF” for reproducible tests.
- Timer: from 5 sec. to 99 minutes or from 1 min. to99 hours and indefinite time.
- PCBS: Progressive controlled braking system upto 175 selectable ramps that prevents samplehomogenization after separation.
- 16 programmable memories.
- Several acoustic and visual messages showingthe user the situation of the device.
Easy to use
- Microprocessor controlled.
- Induction motor maintenance free (brushless).
- Rotors list in memory.
- Noise level: below 65 dB.
- Start, stop, open lid and short spin with adjustablespeed buttons.
- Option of free/locked adjustment of RPM/ RCFalong the run.
- Low height for easy access.
- Last values remain in memory.
- Automatic rotor recognition. Over-speedprotection.
Safety
- Lid provided with security systems:
– Automatic lid lock system, motorized with double lock.
– Emergency lid-lock release.
– Locking and protection against opening along the run.
– Lid dropping protection.
– Port in the lid for calibration and operation checking. - Ergonomic design that allows close the lid effortless.
- Unbalance detection and switch off.
- Protection safety ring between thecentrifugation chamber and the housing.
- Chamber of centrifugation in stainless steel(easy cleaning).
- Rotors can be removed with the lid closed.Hermetic lids.
- Rotors and adapters autoclavable, easy toinstall by the user.
- Automatic disconnection for energy saving up to 8 h.
Cooling
- Maintains the refrigeration after the centrifugation process.
- Precooling program with rotor spinning and selectable temperature.
- Guarantees 4 °C at maximum RPM.
- Temperature range from -20°C (-4°F) to 40°C (104°F) in 1°C steps.
- Temperature sensor inside the chamber.
- Gas R 449A HFO (CFC free).
Standards and Directives
- EU Directives: 2011/65/EU, 2012/19/EU, 2014/30/EU, 2014/35/EU, 98/79/EC.
- Regulation n°: (EC) 1005/2009, (EU) 517/2014.
- Standards: EN 61010-1, EN 61010-2-101, EN 61010- 2-020, EN 61326-2-6, EN 61326-1.
