NEST – Cell Biology – Cell Culture Plates

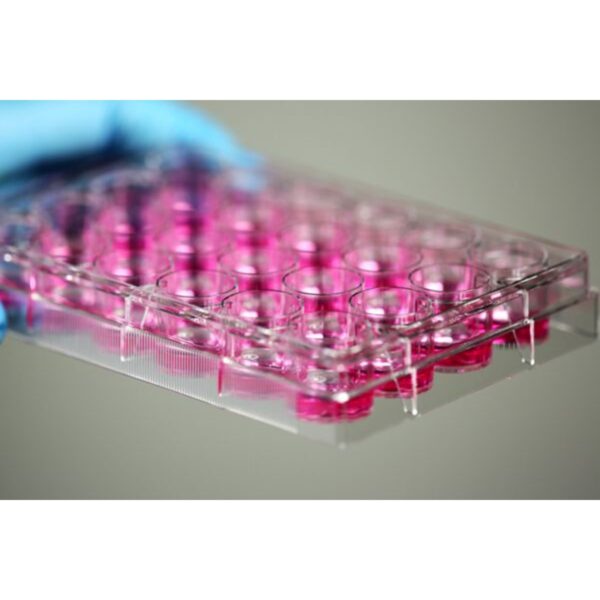

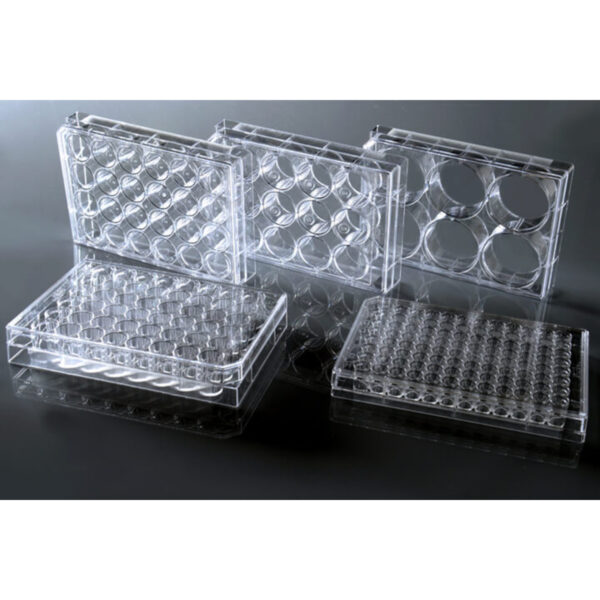

NEST cell culture plates have round edges for better handling. Low profile and low-evaporation lid design assures uniform growth. Both tissue culture treated and non-treated surfaces are available. Non-treated growth surface is more hydrophobic than tissue culture surface and is similar to the surface of a bacteriological Petri dish. Small feet on the bottom corners of each plate eliminate scraping of the microscope lens.
Technical Specifications
| Treated plate | ||||||
| Cat.No. | Spec (Well) | Cell Growth Area (cm²) | Rcommended Medium Vol. (mL) | Bottom | ||
| 703001 | 6 | 9.5 | 1.9-2.9 | Flat | 50 | |
| 712001 | 12 | 3.6 | 0.76-1.14 | Flat | 50 | |
| 702001 | 24 | 1.9 | 0.38-0.57 | Flat | 50 | |
| 748001 | 48 | 0.88 | 0.19-0.285 | Flat | 50 | |
| 701001 | 96 | 0.32 | 0.1-0.2 | Flat | 100 | |
| 701101 | 96 | 0.32 | 0.1-0.2 | U | 100 | |
| 701201 | 96 | 0.32 | 0.1-0.2 | V | 100 | |
| Non-treated plate | ||||||
| Cat.No. | Spec (Well) | Cell Growth Area (cm²) | Rcommended Medium Vol. (mL) | Bottom | ||
| 703011 | 6 | 9.5 | 1.9-2.9 | Flat | 50 | |
| 712011 | 12 | 3.6 | 0.76-1.14 | Flat | 50 | |
| 702011 | 24 | 1.9 | 0.38-0.57 | Flat | 50 | |
| 701011 | 96 | 0.32 | 0.1-0.2 | Flat | 100 | |
Excellent bottom uniformity
Special lid design ensures low evaporation
Frosted and noise-free bottom design for easy grip
Lot No. for traceability
Key Features
- Sterilized by E-beam
- High clarity, 100% virgin polystyrene
- Vacuum Plasma tissue culture treatment
- Clear lot number for batch traceability
- Peel-to-open, individually wrapped
- Markings of well coordinates available for 12, 24, 48 96 and 384 well plates
- Non-Pyrogenic, DNase/RNase Free
- The package box of Nest cell culture plates can be used as reservoirs
Key Industries
- Aerospace
- Agriculture
- Automotive
- Biopharmaceutical and Biotechnology
- Chemical
- Construction
- Cosmetics and Personal Care
- Defense
- Die and Mould
- Education and Academics
- Electronics
- Energy
- Environmental
- Food and Beverage
- Luxury
- Machinery and Manufacturing
- Medical
- Mining and Minerals
- Oil and Gas
- Optical
- Paper and Wood
- Pharmaceutical
- Polymers, Plastics and Rubbers
- Powders and Pigments / Coating
- Railway
- Semiconductor, Solar & Electronics
- Service
- Textile
- Wholesale and Retail
Technical Specifications
| Treated plate | ||||||
| Cat.No. | Spec (Well) | Cell Growth Area (cm²) | Rcommended Medium Vol. (mL) | Bottom | ||
| 703001 | 6 | 9.5 | 1.9-2.9 | Flat | 50 | |
| 712001 | 12 | 3.6 | 0.76-1.14 | Flat | 50 | |
| 702001 | 24 | 1.9 | 0.38-0.57 | Flat | 50 | |
| 748001 | 48 | 0.88 | 0.19-0.285 | Flat | 50 | |
| 701001 | 96 | 0.32 | 0.1-0.2 | Flat | 100 | |
| 701101 | 96 | 0.32 | 0.1-0.2 | U | 100 | |
| 701201 | 96 | 0.32 | 0.1-0.2 | V | 100 | |
| Non-treated plate | ||||||
| Cat.No. | Spec (Well) | Cell Growth Area (cm²) | Rcommended Medium Vol. (mL) | Bottom | ||
| 703011 | 6 | 9.5 | 1.9-2.9 | Flat | 50 | |
| 712011 | 12 | 3.6 | 0.76-1.14 | Flat | 50 | |
| 702011 | 24 | 1.9 | 0.38-0.57 | Flat | 50 | |
| 701011 | 96 | 0.32 | 0.1-0.2 | Flat | 100 | |
Excellent bottom uniformity
Special lid design ensures low evaporation
Frosted and noise-free bottom design for easy grip
Lot No. for traceability
Key Features
- Sterilized by E-beam
- High clarity, 100% virgin polystyrene
- Vacuum Plasma tissue culture treatment
- Clear lot number for batch traceability
- Peel-to-open, individually wrapped
- Markings of well coordinates available for 12, 24, 48 96 and 384 well plates
- Non-Pyrogenic, DNase/RNase Free
- The package box of Nest cell culture plates can be used as reservoirs
