Nanotech – Grinding Machine – 400UPJGv1
The machine features our latest advancements in “precision engineered” designs and components. These include ultra stiff oil hydrostatic bearing slide ways and state-of-the-art dual “iron-less” linear motor drives which eliminate any backlash or hysteresis in the axis motion. The base is designed for high damping, thermal compatibility with the slide components and for long life corrosion resistance against cutting fluids. It has been engineered as a single monolithic structure with an enclosed bridge to provide maximum structural stiffness both statically and dynamically in order to optimize complex roughing and finishing operations while achieving a much higher geometric accuracy.

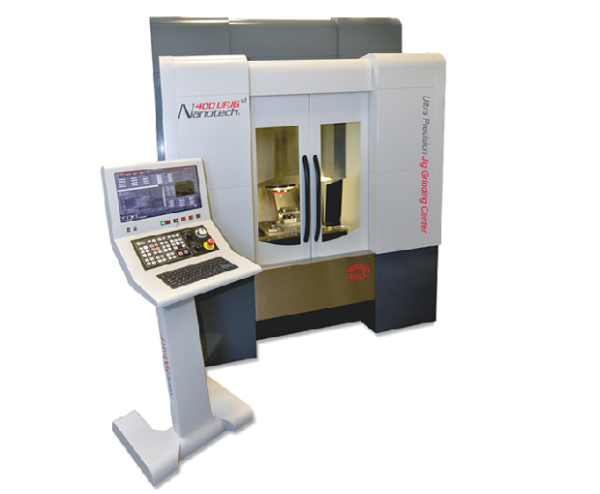

Ultra Precision Jigs Grinder
Introducing our next generation jig grinding center with accuracies and repeatability beyond what is available from any other system. Built upon many proven principles used in our leading single point diamond turning systems, the 400UPJG was engineered and constructed to achieve true ultra-precision sub-micron tolerances. It offers both high productivity and advanced operating simplicity.
NanoSMART® Interactive HMI Control System
The system is powered by a high speed 64 bit Delta Tau PowerPMAC motion controller and a touch / swipe gesture “smart” screen display. Our exlusive HMI software, NanoSMART, consists of three customizable 22″ wide screens that are accessible by swiping left or right from the main screen, keeping all the information you need at your finger tips. The customization capability allows the user to now manage their programming and monitoring preferences while a fully integrated jig-grinding cycle routine mimics the operation of traditional jig-grinders. Our proprietary software and control system boasts a 10 nanometer (0.00001mm) programming resolution with a 1.0 nanometer (0.000001mm) feedback resolution.
Technical Specifications
| System Configuration | |
| Ultra-precision Four Axis Jig Grinding Machining Center | X, Y, Z, W |
|---|---|
| Slide Type | Fully constrained oil hydrostatic box style |
| Slide Drive (X,Y,Z) | Dual iron-less linear motors |
| Slide Drive (W / reciprocation axis) | Precision ball screw |
| Feedback Resolution | 0.000001mm |
| Tool Interface | HSK-E25 |
| Capacity | |
| Maximum Workpiece Dimension | 400 mm x 400 mm (15.75 in. x 15.75 in.) |
| Maximum Weight | 250 kg (550 lbs.) |
| Table Surface Configuration | T-Slots -10-H2 & M8 Tapped Holes |
| X-axis Travel (cross axis) | 1000 mm (39.4 in.) |
| Y-axis Travel (machine table) | 400 mm (15.75 in.) |
| Z-axis Travel | 250 mm (9.8 in.) |
| W-axis Travel (reciprocation axis) | 90 mm (3.5 in.) |
| Distance from Table Surface to Spindle Gauge-Line | 150 – 400 mm (5.9 in. – 15.75 in.) |
| Speeds and Feeds | |
| Vmax X & Y | 6000 mm/min (236 in/min) |
| Vmax Z | 4500 mm/min (177 in/min) |
| Vmax W | 16000 mm/min (630 in/min) |
| Spindle Speed | 0 – 60,000 rpm |
Key Features
Ultra Precision Jig Grinding Center
- Hole Roundness ≤ 0.5μm
- Hole Positioning Accuracy Within ± 0.5μm over 100mm
- Ultra-Stiff Oil Hydrostatic Slideways with Dual Iron-less Linear Motor Drives
- 1 Nanometer Linear Feedback Resolution
- Delta Tau Power PMAC Real-time 64-bit Motion Controller with 20,000 block lookahead for advanced trajectory calculations
- NanoSMART® – Touch / Swipe Gesture Based Interactive HMI

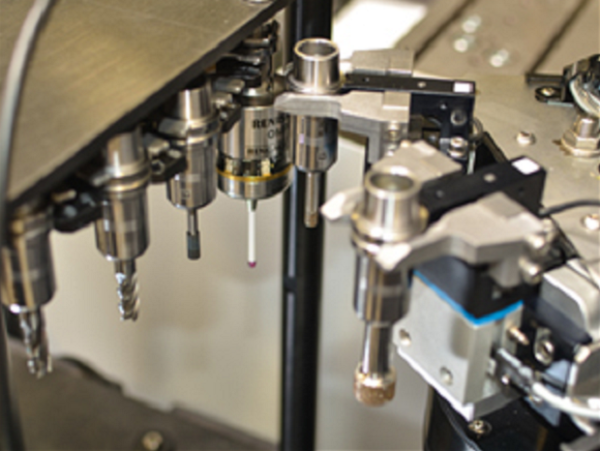

- Major Options: 30 Station Automatic Tool Changer
- High Speed Dressing Spindle
- AutomatedWheel Dia. & Length Measuring System (Autosize)
- Automated Process Optimization (Autogrind)
- 3D Touch Probe for In-Situ Part Measurement
- Temperature Controlled Flood Coolant •Mist Extraction System
