Nanotech – Glass molding press – 140GPM
140GPM Glass Molding Press

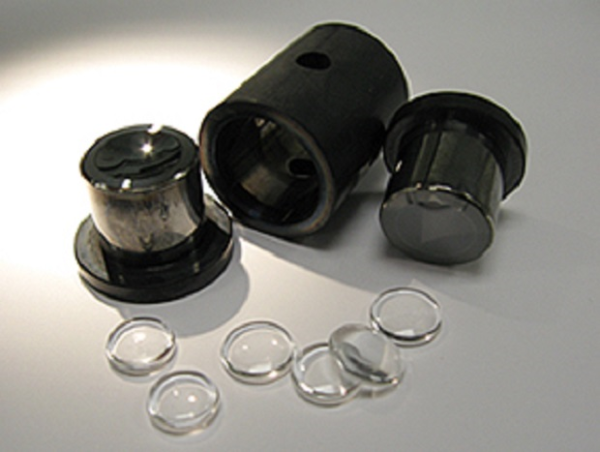

The Nanotech 140GPM is a glass press molding machine designed for precision glass optic applications. It features a single molding chamber with a 140mm diameter capacity. This machine compliments the Nanotech 100UPG which is ideal for ultra precision grinding of WC and SiC mold components. The Nanotech 450UPL or 650FG can also be configured for ultra precision grinding of these molds. Together, the combination of systems forms an ultra precision glass press molding cell.
Technical Specifications
| Maximum heating Temperature | 800℃ | |
| Maximum Die Pressure | 25kN | |
|---|---|---|
| Maximum Processing Capacity | Diameter 140mm | |
| *For more data, please contact us | ||
Key Features
Machine Features
•Single chamber precision glass molding machine with 140mm diameter capacity
•Capable of utilizing multi-cavity mold inserts
•Compatible with both fixed and floating mold sets
•PC based motion controller that operates in either position or forcecontrol mode with integrated heating and cooling loops
•Windows based front end with user friendly touch screento program the machine
•Capable of molding at temperatures up to 800 °C
•Molding chamber capable of operating undervacuum or an inert gas environment
•Maximum pressing force of 25 kN
