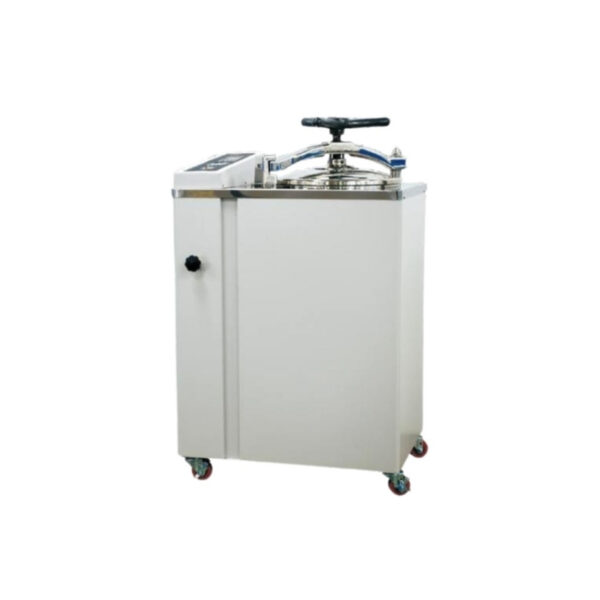

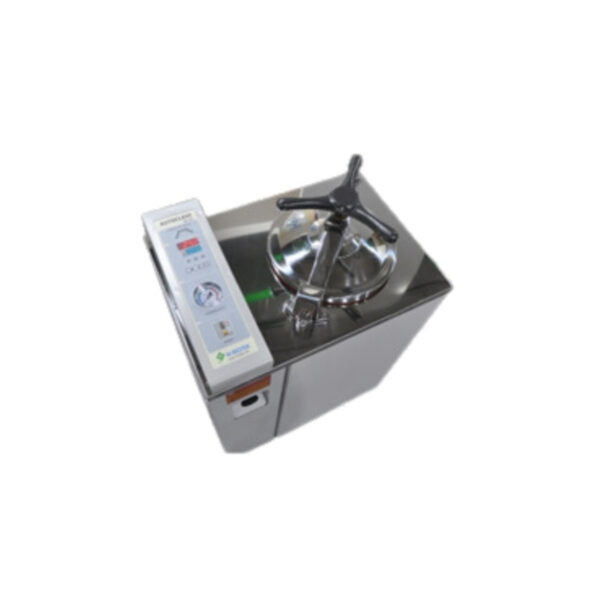

N-Biotek – Vertical Autoclave
It is a high-pressure autoclave which is suitable for general lab. With the highest work efficiency and safety features, it provides the cost-effective sterilization system. Fully automatic autoclave heat-up, exhaust, sterilize, and pressure.
Safety valve for discharging pressure. Chamber made of SUS304 for resistance to decomposition. Precise electronic timer. Microprocessor PID control for temperature.
Technical Specifications
| NB-1045 | NB-1060 | NB-1080 | NB-1100 | |
|---|---|---|---|---|
| Temperature Range | 121°C(Standard) / 132°C(Option) | 121°C(Standard) / 132°C(Option) | 121°C(Standard) / 132°C(Option) | 121°C(Standard) / 132°C(Option) |
| Accuracy | +0.5oC at 121oC | +0.5oC at 121oC | +0.5oC at 121oC | +0.5oC at 121oC |
| Operating Pressure | 0.1 ~ 0.21 Mpa | 0.1 ~ 0.21 Mpa | 0.1 ~ 0.21 Mpa | 0.1 ~ 0.21 Mpa |
| Timer | Electronic Type / 0 ~ 99h 59min | Electronic Type / 0 ~ 99h 59min | Electronic Type / 0 ~ 99h 59min | Electronic Type / 0 ~ 99h 59min |
| Temperature Control | Digital PID Controller | Digital PID Controller | Digital PID Controller | Digital PID Controller |
| Monitor Unit | Audible & Visible Device | Audible & Visible Device | Audible & Visible Device | Audible & Visible Device |
| Safety Device | Over Temp. Limit by Controller / Overheat Limit by Safety S/W / Over Pressure Limit by Protector Valve / Water Level Sensor Protector | Over Temp. Limit by Controller / Overheat Limit by Safety S/W / Over Pressure Limit by Protector Valve / Water Level Sensor Protector | Over Temp. Limit by Controller / Overheat Limit by Safety S/W / Over Pressure Limit by Protector Valve / Water Level Sensor Protector | Over Temp. Limit by Controller / Overheat Limit by Safety S/W / Over Pressure Limit by Protector Valve / Water Level Sensor Protector |
| Pressure Gauge | Mechanical Gauge / 0 ~ 0.3 Mpa | Mechanical Gauge / 0 ~ 0.3 Mpa | Mechanical Gauge / 0 ~ 0.3 Mpa | Mechanical Gauge / 0 ~ 0.3 Mpa |
| Air Exhaust | Adjustable Valve | Adjustable Valve | Adjustable Valve | Adjustable Valve |
| Basket | Mesh Type / Standard 2ea | Mesh Type / Standard 2ea | Mesh Type / Standard 2ea | Mesh Type / Standard 2ea |
| Dimension (In) | 300Øx630mm | 350Øx630mm | 400Øx630mm | 450Øx630mm |
| Dimension (Out) | 670x470x1080(H)mm | 670x470x1080(H)mm | 810x630x1150(H)mm | 810x630x1150(H)mm |
| Capacity | 45 liters | 60 liters | 80 liters | 100 liters |
| Weight | 71kg | 73kg | 120kg | 125kg |
| Power | 220V, 50/60Hz | 220V, 50/60Hz | 220V, 50/60Hz | 220V, 50/60Hz |
Available Models
It is a high pressure autoclave which is suitable for general lab. With the highest work efficiency and safety features, it provides the cost-effective sterilization system.
Key Features
- Fully Automatic Autoclave
- Heat-up, Exhaust, Sterilize, and Pressure
- Safety Valve for Discharging Pressure
- Chamber made of SUS304 for Resistance to Decomposition
- Precise Electronic Timer
- Microprocessor PID Control for Temperature
It is a high pressure autoclave which is suitable for general lab. With the highest work efficiency and safety features, it provides the cost-effective sterilization system.
Key Features
- Fully Automatic Autoclave
- Heat-up, Exhaust, Sterilize, and Pressure
- Safety Valve for Discharging Pressure
- Chamber made of SUS304 for Resistance to Decomposition
- Precise Electronic Timer
- Microprocessor PID Control for Temperature
It is a high pressure autoclave which is suitable for general lab. With the highest work efficiency and safety features, it provides the cost-effective sterilization system.
Key Features
- Fully Automatic Autoclave
- Heat-up, Exhaust, Sterilize, and Pressure
- Safety Valve for Discharging Pressure
- Chamber made of SUS304 for Resistance to Decomposition
- Precise Electronic Timer
- Microprocessor PID Control for Temperature
It is a high pressure autoclave which is suitable for general lab. With the highest work efficiency and safety features, it provides the cost-effective sterilization system.
Key Features
- Fully Automatic Autoclave
- Heat-up, Exhaust, Sterilize, and Pressure
- Safety Valve for Discharging Pressure
- Chamber made of SUS304 for Resistance to Decomposition
- Precise Electronic Timer
- Microprocessor PID Control for Temperature
Key Features
- Fully Automatic Autoclave Heat-up, Exhaust, Sterilize, and Pressure
- Safety Valve for Discharging Pressure
- Chamber made of SUS304 for Resistance to Decomposition
- Precise Electronic Timer
- Microprocessor PID Control for Temperature
