Miraclon – Kodak Flexcel NX Systems
Manage your digital flexo plate imaging with the FLEXCEL NX System. This proven, upgradeable platform arrives on the product floor fully integrated and ready to go.
TIFF Assembler Plus (TAP) software comes as standard with your FLEXCEL NX System. TAP gives you the tools to quickly prepare TIFF files for platemaking. Design efficient layouts and set outputs for unique surface patterning technology that delivers the plate finish you’re looking for.
The FLEXCEL NX System includes imager, laminator, layout software and dedicated imaging and plate materials. It comes in five different configurations and a choice of two plate types, so you set your level of flexibility.
Key Features
- A complete, integrated, award-winning solution
- A full portfolio of imager size options
- Efficient job layout tools
- Plates for all applications
- Unique patented technology
- Flexo Transformed
Technical Specifications
| Wide 5080 System | Wide 4260 / 3548 System | Mid / Narrow System | |
|---|---|---|---|
| Workflow connectivity | KODAK TIFF Assembler Plus Software Flexo Edition; accepts 1 bit TIFF and LEN files from all workflow systems | KODAK TIFF Assembler Plus Software Flexo Edition; accepts 1 bit TIFF and LEN files from all workflow systems | KODAK TIFF Assembler Plus Software Flexo Edition; accepts 1 bit TIFF and LEN files from all workflows systems |
| Imaging speed | With DIGICAP NX Patterning applied: 12.5 m2/hr Without NX Patterning applied: 6.5 m2/hr | With KODAK DIGICAP NX Patterning applied: 12 m2/hr Without DIGICAP NX Patterning applied: 10 m2/hr | With DIGICAP NX Patterning applied:13.5 m2/ hr Without DIGICAP NX Patterning applied:12.5 m2/ hr |
| Resolution | 2400 dpi | 2400 dpi | 2400 dpi |
| Repeatability | ± 16 microns between 2 consecutive exposures on the same TIL left on the drum | ± 8 microns between 2 consecutive exposures on the same TIL left on the drum | ± 8 microns between 2 consecutive exposures on the same TIL left on the drum |
| Finish plate resolution | 300 lpi maximum linescreen (0.4% to 99.6%) | 300 lpi maximum linescreen (0.4% to 99.6%) | 300 lpi maximum linescreen (0.4% to 99.6%) |
| Dimensions (H x W x D) | 78 x 134 x 277 cm (30.7 x 52.7 x 109 in); Table height with handle: 131 cm (51.5 in) | 87 x 273 x 133 cm (34 x 107 x 52 in), Table height: 81 cm (32 in) | 90 x 181 x 110 cm (35.4 x 71.3 x 43.4 in.) |
| Weight | 950 kg (2094 lb) | 700 kg (1540 lb) | 350 kg (770 lb) |
| Temperature | 17°- 30°C (63° – 86°F) | 17°- 30°C (63° – 86°F) | 17°- 30°C (63° – 86°F) |
| Humidity | 40% – 60% relative humidity, non-condensing | 40% – 60% relative humidity, non-condensing | 40% – 60% relative humidity, non-condensing |
Available Models
Capable of producing FLEXCEL NX Plates up to a maximum size of 50 x 80 inches, maximize plate-making productivity and minimize waste; accommodate applications with the largest form sizes.

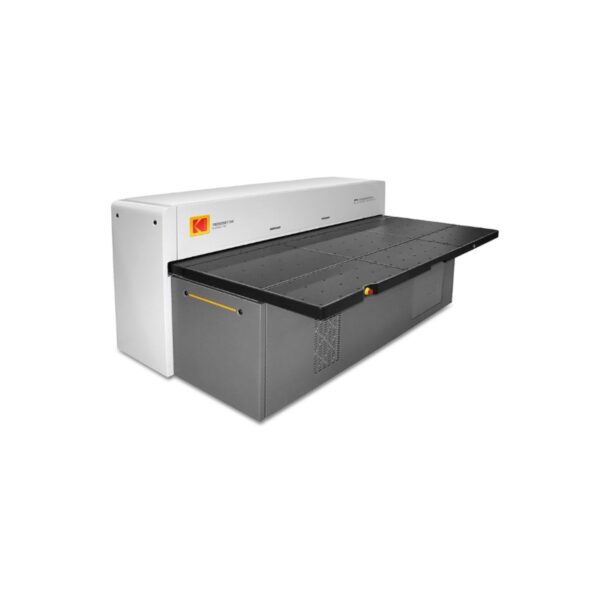

Choose from two configurations. Produce plates up to 35 x 48 or 42 x 60 inches for efficient and outstanding print performance accommodating large layouts and effective job planning.

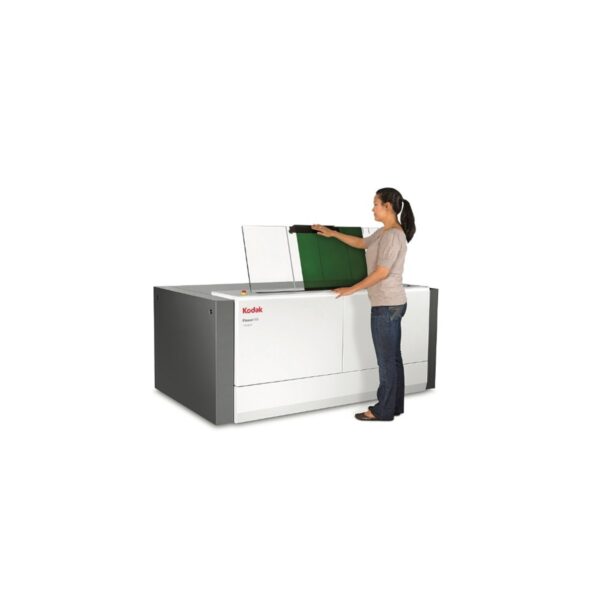

Produce FLEXCEL NX Plates up to 45 x 33 inches with a Mid System, and enable exceptional print performance with a compact footprint and fast imaging speeds. Configuration also available for smaller plate size.
Kodak Flexcel NX Digital Flexographic System
Key Industries
- Printing & Packaging
Brand
Miraclon – Bringing innovation, investment and collaboration together to take flexo further.
For the best in packaging printing – start to finish. Miraclon is a fully flexo-focused company, creating revolutionary solutions for flexo printing. A dedicated team has been at the forefront of flexo’s transformation for more than a decade, and the technology, including the flagship KODAK FLEXCEL NX system, ensures best-in-class performance at every point in the print process.
Today, the pressure on packaging printers is higher than ever. Which is why Miraclon work closely with customers, predicting challenges and innovating to resolve them, with products that take quality to new heights, increase efficiency and maximize productivity.
