  • 84-56 Horizontal Tensile Tester Brochure – Messmer Büchel

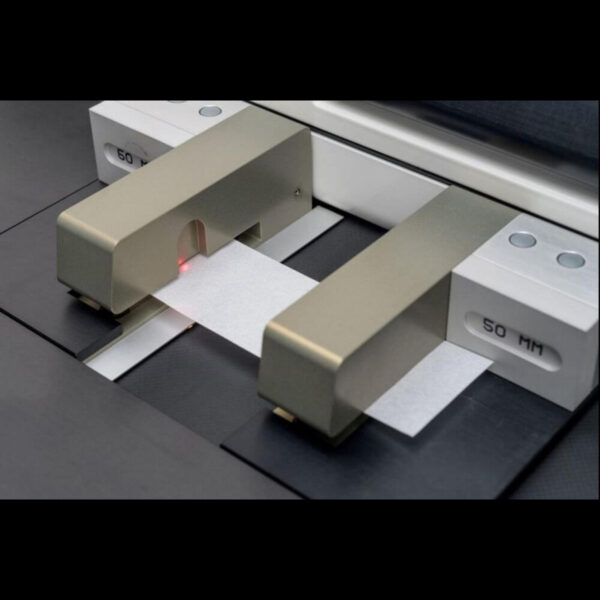

Insert Your Sample and Test

The Horizontal Tensile Tester tests the tensile strength and elongation of a sample. After placing the sample the sensor detects the sample and the test starts. Special guides are supplied to center the sample correctly. The guides can be replaced when another test width is required. The wide workbench enables you to easily perform your tests. The auto detect option leaves your hands free to slide in your sample. The touchscreen has clear buttons makes navigation quick and easily. As an option, the instrument can be adapted for wet test according to ISO 12625-5.

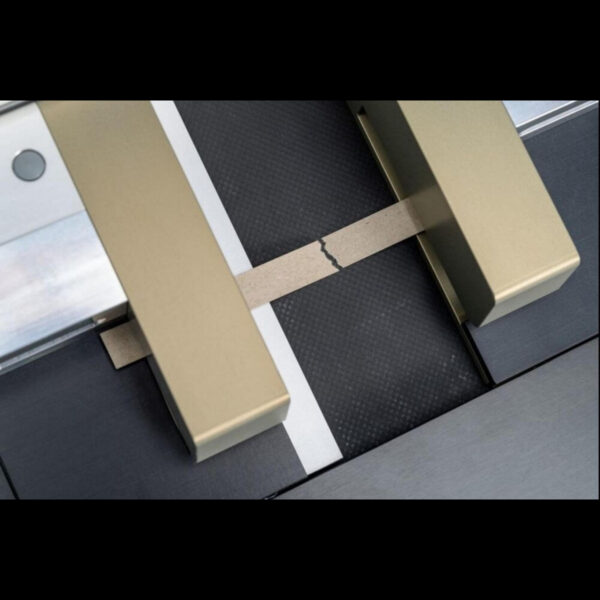

Test Results

After the tests the values are shown in a graph and in statistical values. The main results are force, strain, T.E.A, elongation and force, and there is a wide range of other results. The instrument is equipped with an overload protection and can be supplied with a 50, 100, 250, 500 or 1,000N load cell.

Technical Specifications

Model84-56 Series
Accuracy0.5% of full range, or within
0.5N whichever is greater
Test speed10 – 200mm/min
(0.2 – 0.8 in/min)
Sample length50 – 180 mm
(0.04 – 7 inch)
Sample width15, 25, 50, 75mm
(0.5, 1, 2, 3 inch)
Dimensions (LxWxH)800 x 500 x 300 mm
(31.5 x 19,7 x 11.8 in)
Weight45 kg (100 lb.)

Key Features

Model 84-56

  • Sample with of 15, 25, 50 and 75mm or ½”, 1”, 2” and 3” test width
  • Test speed 10-200mm/min (0,2-0,8 inch/min)
  • Sample length 50 – 180mm
  • Wet test options
  • Load cell ranges: 50, 100, 250, 500 or 1,000N
  • Auto detect of sample

84-56 Horizontal Tensile Tester

Key Industries

  • Aerospace
  • Agriculture
  • Automotive
  • Biopharmaceutical and Biotechnology
  • Chemical
  • Construction
  • Cosmetics & Personal Care
  • Defense
  • Die & Mould
  • Education & Academics
  • Electronics
  • Energy
  • Environmental
  • Food & Beverage
  • Luxury
  • Machinery & Manufacturing
  • Medical
  • Mining & Minerals
  • Oil & Gas
  • Optical
  • Paper & Wood
  • Pharmaceutical
  • Polymers, Plastics and Rubbers
  • Powders & Pigments / Coating
  • Railway
  • Semiconductor, Solar & Electronics
  • Service
  • Textile
  • Wholesale & Retail

Brand

Messmer Büchel (Messmer Buchel)

Messmer Buchel is a specialist in design and manufacture of a wide range of testing instruments for pulp, paper and packaging industries. An experienced engineering and operations team provide high precision instrumentation with unmatched quality and robustness.
