Messmer Büchel – Crush Tester

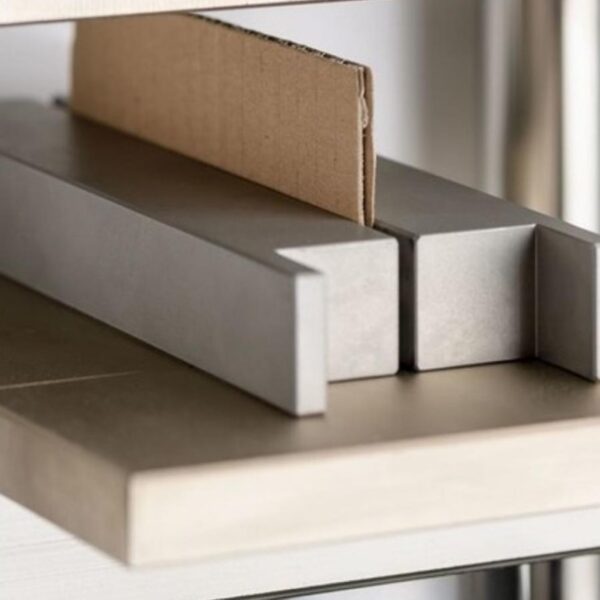

The Crush Test is designed as a robust, easy to use instrument. Exactly what you need when performing crush tests. The Crush Tester is suitable for a wide variety of samples, including corrugated board, tubes, paper and plastics. The special sample holders extend the instrument’s possibilities. The accuracy is achieved with a precision load cell, which is even accurate at low force values.
Messmer Buchel is a reputable company renowned for its expertise in designing and producing testing instruments specifically catered to the needs of the pulp, paper, and packaging industries.
Technical Specifications
| 17-56 Series | |
|---|---|
| Measuring units | N, lb, N/m, lb/in, kPa, lb/ft, lb/in², kN/m |
| Measuring range | 0,000 – 5,000 N (1,125 lb) |
| Stroke length | 4 – 78mm (0.158 -3.07 in) |
| Test speed | 5-50 mm/min (0.2 – 2.00 in/min) |
| Return speed | ± 100 mm/min (4.00 in/min) |
| Upper platen | 125 x 125mm (4.92 x 4.92 in) |
| Lower platen | 180 x 125mm (7.08 x 4.92 in) |
| Accuracy | 1% of reading |
| Overload protection | Adjustable, max 5000N |
| Electrical | 100 – 230 VAC, 50/60 Hz |
| Dimensions | 370 x 400 x 710 mm (WxDxH) (14.5 x 15.7 x 28 in) |
| Weight | 69 kg (152 lbs) |
Key Features
Crush Tester
- Solid and robust instrument
- Ergonomic design
- Precision load cell
- Load cell up to 5000 Newton
- Special sample holders available
- Easy to use interface
- Suitable for: RCT, CMT, CCT, PAT, ECT, FCT, SQT test
17-56 Crush Tester
Key Industries
- Education & Academics
- Food & Beverage
- Mining & Minerals
- Oil & Gas
- Polymers, Plastics and Rubbers
Messmer Buchel is a specialist in design and manufacture of a wide range of testing instruments for pulp, paper and…
