Mareno – Modular Cooking – Star 90 Pasta Cookers
The new Star 90 pasta cookers are designed to ensure greater output with easy use and maintenance.
Technical Details
Top with recessed spillage well, deep-drawn tank in Aisi 316L stainless steel with rounded corners. Automatic lifting module for pasta cooker baskets.
- Gas pasta cooker
Stainless steel burner outside the tank. Gas safety valvle with thermocouple on the front panel and electric ignition pushbutton.
- Electric pasta cooker
Heating element in Aisi 304 stainless steel inside tank, rotates to facilitate cleaning at the end of each service.
Techinical Specifications
| NPC94G | NPC96G | NPC98G | NPC94E | NPC94E2 | NPC96E | NPC96E2 | NPC98E | NPC98E2 | NPC98GM | NPC94GM | NM9SCP | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W x D x H (mm) | 400 x 900 x 870 | 600 x 900 x 870 | 800 x 900 x 870 | 400 x 900 x 870 | 400 x 900 x 870 | 600 x 900 x 870 | 600 x 900 x 870 | 800 x 900 x 870 | 800 x 900 x 870 | 800 x 900 x 870 | 400 x 900 x 870 | 150 x 900 x 870 |
| Weight (kg) | 63 | 74 | 89 | 59 | 59 | 70 | 70 | 82 | 82 | 89 | 63 | 29 |
| Volume (m³) | 0.5 | 0.8 | 1 | 0.5 | 0.5 | 0.8 | 0.8 | 1 | 1 | 1 | 0.5 | 0.15 |
| Power supply | VAC230 50Hz | VAC230 50Hz | VAC230 50Hz | VAC400 3N 50Hz | VAC230 3 50Hz | VAC400 3N 50Hz | VAC230 3 50Hz | VAC400 3N 50Hz | VAC230 3 50Hz | – | – | VAC230 50/60Hz |
| Electric power (kW) | 0.1 | 0.1 | 0.2 | 8.5 | 8.5 | 9 | 9 | 17 | 17 | 28 | 14 | 0.07 |
| Qty heating zones | 1 x 14 kW | 1 x 14 kW | 2 x 14 kW | 1 x 8,5 kW | 1 x 8,5 kW | 1 x 8,5 kW | 1 x 8,5 kW | 2 x 8,5 kW | 2 x 8,5 kW | 2 x 14 kW | 1 x 14 kW | – |
Available Models
Gas pasta cooker with single well constructed in AISI 304 stainless steel. 2 mm thick pressed top with spillage recess and extended expansion zone. Deep drawn wells in AISI 316 polished stainless steel with radiused bottom for ease of cleaning. Water loading by means of solenoid valve activated by switch on control panel. Fast filling and top-up options. Safety guaranteed by a pressure switch, which prevents heating if well is empty. Fixed water tap in stainless steel located below draining board. Heating by means of steel burner with stabilized flame complete with pilot flame and safety thermocouple. Gas supply controlled by safety valve with thermocouple, electric automatic ignition. Precise heating control by means of energy regulator. Activation of heating signalled by an indicator led on the control panel. 42-litre well capacity. Well dimensions mm 305x510x285h. Drain tap on bottom of well, accessible from front door. Height adjustable feet in stainless steel. IPX5 protection rating.
Gas pasta cooker with single side-to-side well constructed in AISI 304 stainless steel. 2 mm thick pressed top with spillage recess and extended expansion zone. Deep drawn wells in AISI 316 polished stainless steel with radiused bottom for ease of cleaning. Water loading by means of solenoid valve activated by switch on control panel. Fast filling and top-up options. Safety guaranteed by a pressure switch, which prevents heating if well is empty. Fixed water tap in stainless steel located below draining board. Heating by means of steel burner with stabilized flame complete with pilot flame and safety thermocouple. Gas supply controlled by safety valve with thermocouple, electric automatic ignition. Precise heating control by means of energy regulator. Activation of heating signalled by an indicator led on the control panel. 42-litre well capacity. Well dimensions mm 305x510x285h. Drain tap on bottom of well, accessible from front door. Height adjustable feet in stainless steel. IPX5 protection rating.
Gas pasta cooker with two wells constructed in AISI 304 stainless steel. 2 mm thick pressed top with spillage recess and extended expansion zone. Deep drawn wells in AISI 316 polished stainless steel with radiused bottom for ease of cleaning. Water loading by means of solenoid valve activated by switch on control panel. Fast filling and top-up options. Safety guaranteed by a pressure switch, which prevents heating if well is empty. Fixed water tap in stainless steel located below draining board. Heating by means of steel burner with stabilized flame complete with pilot flame and safety thermocouple. Gas supply controlled by safety valve with thermocouple, electric automatic ignition. Precise heating control by means of energy regulator. Activation of heating signalled by an indicator led on the control panel. 42+42-litre well capacity. Well dimensions mm 305x510x285h. Drain taps on bottom of well, accessible from front doors. Height adjustable feet in stainless steel. IPX5 protection rating.
Electric pasta cooker with single well constructed in AISI 304 stainless steel. 2 mm thick pressed top with spillage recess and extended expansion zone. Deep drawn well in AISI 316 polished stainless steel with radiused bottom for ease of cleaning. Water loading by means of solenoid valve activated by switch on control panel. Fast filling and top-up options. Safety guaranteed by a pressure switch, which prevents heating if well is empty. Fixed water tap in stainless steel located below draining board. Armoured immersion-type heating elements for optimized performance, foldable to facilitate well cleaning. Precise heating control by means of energy regulator. 42-litre well capacity. Well dimensions mm 305x510x285h. Drain tap on bottom of well, accessible from front doors. Height adjustable feet in stainless steel. IPX5 protection rating.
Electric pasta cooker with single well constructed in AISI 304 stainless steel. 2 mm thick pressed top with spillage recess and extended expansion zone. Deep drawn well in AISI 316 polished stainless steel with radiused bottom for ease of cleaning. Water loading by means of solenoid valve activated by switch on control panel. Fast filling and top-up options. Safety guaranteed by a pressure switch, which prevents heating if well is empty. Fixed water tap in stainless steel located below draining board. Armoured immersion-type heating elements for optimized performance, foldable to facilitate well cleaning. Precise heating control by means of energy regulator. 42-litre well capacity. Well dimensions mm 305x510x285h. Drain tap on bottom of well, accessible from front doors. Height adjustable feet in stainless steel. IPX5 protection rating.
Electric pasta cooker with single side-to-side well constructed in AISI 304 stainless steel. 2 mm thick pressed top with spillage recess and extended expansion zone. Deep drawn well in AISI 316 polished stainless steel with radiused bottom for ease of cleaning. Water loading by means of solenoid valve activated by switch on control panel. Fast filling and top-up options. Safety guaranteed by a pressure switch, which prevents heating if well is empty. Fixed water tap in stainless steel located below draining board. Armoured immersion-type heating elements for optimized performance, foldable to facilitate well cleaning. Precise heating control by means of energy regulator. 42-litre well capacity. Well dimensions mm 305x510x285h. Drain tap on bottom of well, accessible from front doors. Height adjustable feet in stainless steel. IPX5 protection rating.
Electric pasta cooker with single side-to-side well constructed in AISI 304 stainless steel. 2 mm thick pressed top with spillage recess and extended expansion zone. Deep drawn well in AISI 316 polished stainless steel with radiused bottom for ease of cleaning. Water loading by means of solenoid valve activated by switch on control panel. Fast filling and top-up options. Safety guaranteed by a pressure switch, which prevents heating if well is empty. Fixed water tap in stainless steel located below draining board. Armoured immersion-type heating elements for optimized performance, foldable to facilitate well cleaning. Precise heating control by means of energy regulator. 42-litre well capacity. Well dimensions mm 305x510x285h. Drain tap on bottom of well, accessible from front doors. Height adjustable feet in stainless steel. IPX5 protection rating.
Electric pasta cooker with two wells constructed in AISI 304 stainless steel. 2 mm thick pressed top with spillage recess and extended expansion zone. Deep drawn wells in AISI 316 polished stainless steel with radiused bottom for ease of cleaning. Water loading by means of solenoid valve activated by switch on control panel. Fast filling and top-up options. Safety guaranteed by a pressure switch, which prevents heating if well is empty. Fixed water tap in stainless steel located below draining board. Armoured immersion-type heating elements for optimized performance, foldable to facilitate well cleaning. Precise heating control by means of energy regulator. 42+42-litre well capacity. Well dimensions mm 305x510x285h. Drain taps on bottom of well, accessible from front doors. Height adjustable feet in stainless steel. IPX5 protection rating.
Electric pasta cooker with two wells constructed in AISI 304 stainless steel. 2 mm thick pressed top with spillage recess and extended expansion zone. Deep drawn wells in AISI 316 polished stainless steel with radiused bottom for ease of cleaning. Water loading by means of solenoid valve activated by switch on control panel. Fast filling and top-up options. Safety guaranteed by a pressure switch, which prevents heating if well is empty. Fixed water tap in stainless steel located below draining board. Armoured immersion-type heating elements for optimized performance, foldable to facilitate well cleaning. Precise heating control by means of energy regulator. 42+42-litre well capacity. Well dimensions mm 305x510x285h. Drain taps on bottom of well, accessible from front doors. Height adjustable feet in stainless steel. IPX5 protection rating.

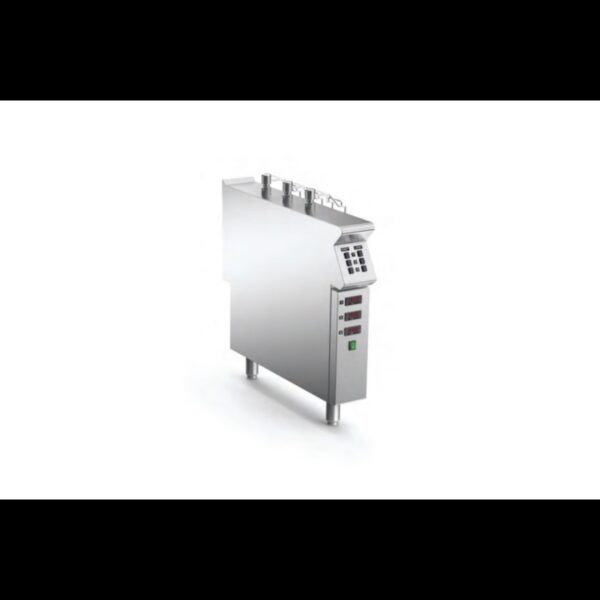

El. module for the automatic lifting of pasta cooker baskets. Stainless steel AISI 304, 2 mm. thickness top. Module fitted for lifting 3 x 1/3 or 1/6 GN baskets. To be positioned aside of single or double well pasta cooker, either right or left. Any single lifting device is controlled by an indipendent timer, adjustable according to products cooking time. At cyclus ending baskets lift up automatically and remain in stand up position. Equipped with 2 stainless steel adjustable feet. IPX5.
Gas pasta cooker with single well constructed in AISI 304 stainless steel. 2 mm thick pressed top with spillage recess and extended expansion zone. Deep drawn wells in AISI 316 polished stainless steel with radiused bottom for ease of cleaning. Water loading by tap placed on the control panel. Fixed water tap in stainless steel located below draining board. Safety guaranteed by a pressure switch, which prevents heating if well is empty. Heating by means of steel burner with stabilized flame complete with pilot flame and safety thermocouple. Gas supply controlled by safety tap with thermocouple. Automatic piezoelectric ignition. 42-litre well capacity. Well dimensions mm 305x510x285h. Drain tap on bottom of well, accessible from front door. Height adjustable feet in stainless steel. IPX5 protection rating.
Gas pasta cooker with two wells constructed in AISI 304 stainless steel. 2 mm thick pressed top with spillage recess and extended expansion zone. Deep drawn wells in AISI 316 polished stainless steel with radiused bottom for ease of cleaning. Water loading by tap placed on the control panel. Fixed water tap in stainless steel located below draining board. Safety guaranteed by a pressure switch, which prevents heating if well is empty. Heating by means of steel burner with stabilized flame complete with pilot flame and safety thermocouple. Gas supply controlled by safety tap with thermocouple. Automatic piezoelectric ignition. 42+42-litre well capacity. Well dimensions mm 305x510x285h. Drain tap on bottom of well, accessible from front door. Height adjustable feet in stainless steel. IPX5 protection rating.
Mareno Module Cooking Star 90
Brand
Mareno kitchens are built for life and designed on first-hand experience, through listening to customers’ needs and by working alongside chefs.
Mareno is an established brand, well known in Italy and abroad for the quality and reliability of its equipment.
Since 1962, we have served three generations of chefs and our modern and innovative style has made us the preferred choice of emerging young professionals.
