Mactron – Laser Marking
Laser marking process is clean, fast, and non-contact that relies on the intense heat of a focused laser beam to permanently modify the surface of the material being.
Available in :
Laser marking creates permanent marking in contrast to ink-based printing. The laser beam changes the material and no ink or solvent is used. The process is clean, fast, and non-contact that relies on the intense heat of a focused laser beam to permanently modify the surface of the material being.
Key Features
Able to realize automatic marking of:
- Text
- Barcodes
- Datamatrix codes
- Logos
- Graphics
Available Model

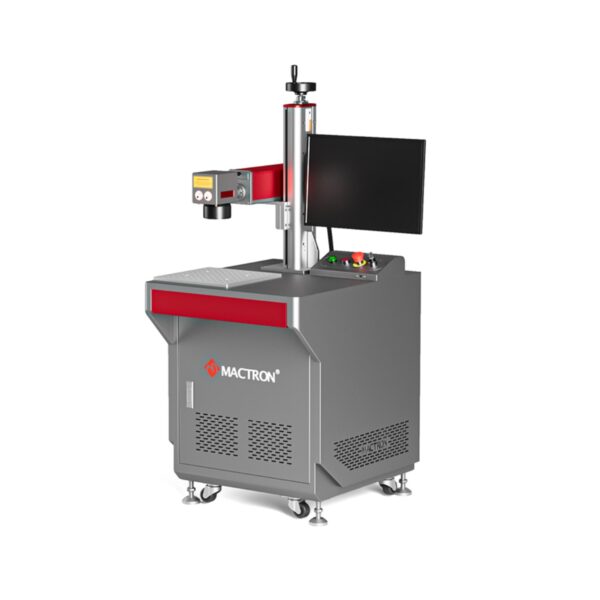

Based on market demand, the machine is equipped with core optical devices, including fiber laser and scanning galvanometer to enhance performance and stability (greatly lower the failure rate). Able to realize automatic edition and correction of characters, signs, graphs images, bar codes, two-dimensional codes, and automatically increased serial numbers. Applicable for various materials such as stainless steel, aluminum, brass, and anodized surfaces.
Key Features
- High precision
- Deep marking capabilities
- High-speed
- Low maintenance
Technical Specification
- Wavelength typically 1,064 nm
- Common options of power range: 20W, 30W, 50W, 100 W
- Marking speed ≤ 8,000 mm/s
This CO2 Laser Marking machine is equipped with high-precision CCD camera positioning and large-scale graphic visual recognition system. Able to automatically locate products for marking, automatic detection of defective products, and realize large-scale visual positioning and marking through the moving platform. Applicable for non-metallic materials: acrylic, ceramics, glass, PVC, wood.
Key Features
- Metal-sealed radio frequency CO2 lasers
- High-speed galvanometer system
- Optional CCD visual positioning system
Technical Specification
- Wavelenth typically 10.6 µm
- Common options of power range:10 W, 30 W, 60 W, and higher
- Marking speed below 10,000 mm/s
This UV Laser Marking machine adopts high quality UV laser generator with ultra-small focusing spot of 355nm to ensure hyperfine marking. The system is suitable for processing materials that have big reactions to thermal radiation. Applicable for various materials such as plastics, glass, ceramics.
Key Features
- Ultra-fine marking capability
- High-quality UV laser
- Minimal heat affected zone
Technical Specification
- Wavelength typically 355 nm
- Common options of power range:3W, 5W, 8W, 10W, 15W
- Marking speed up to 8,000 mm/s

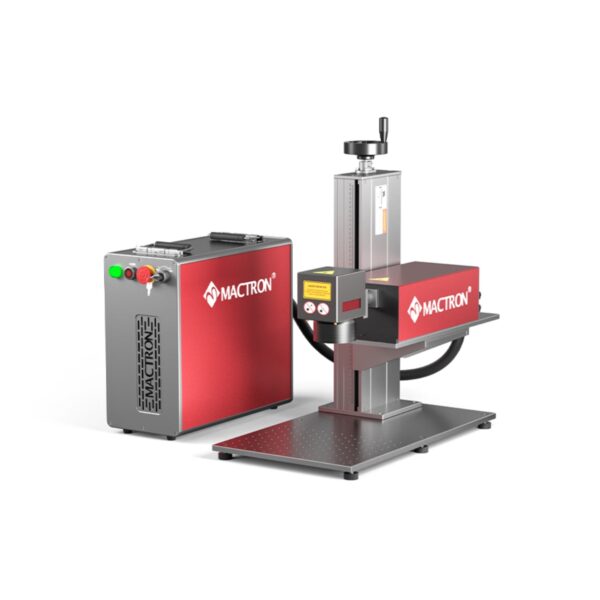

Mactron Laser | MT-F Series Fiber Laser Marking Machine
Mactron Laser | 5W UV Laser Marking Machine Used to Remove Paint
Founded in 2008, MACTRON is an advanced manufacturer that provides superb quality industrial-grade laser solutions, mainly involved in laser marking,…
