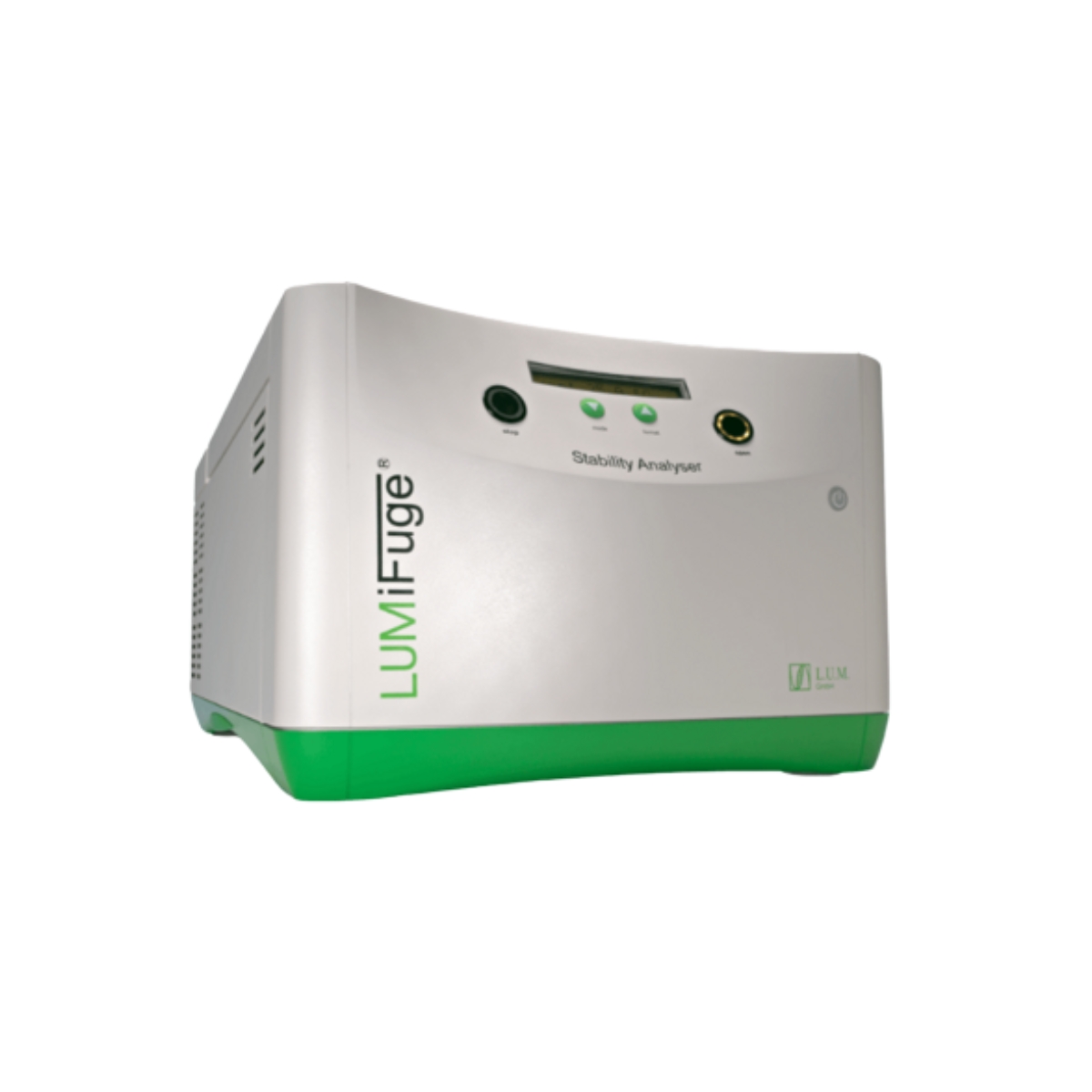

The LUMiFuge is an analytical centrifuge that measures instantaneously the extinction of transmitted light across the full length of your sample using the STEP-Technology. It is the only instrument in the world that enables you to perform physically accelerated, direct and efficient stability testing and ranking of your formulations.
It features an advanced optical system enabling multi-sample analysis at user defined speeds, light intensities and temperatures. The optical blocks consist of high-powered special light sources of different wavelengths.
The parallel light illuminates the whole sample from top to bottom. Even the smallest changes across the entire sample height are detected by a sensor featuring high optical and spatial resolution. Immediate data collection ensures the ability to measure everything that occurs in your sample; no matter how simple or complex. There is no need to dilute or to know any material constants; just input your samples and you have your results.
By looking at the fingerprint patterns of the whole sample, you can classify and understand the causes of instability, e. g. creaming, sedimentation or flocculation, as well as measure and rank stability.
Use this knowledge to develop new formulations and optimize current ones easily.
Technical Specifications
| Accelerated phase separation | 6–2300 times compared to gravity |
| Dispersion stability analysis | 3 years reduced to less than 24 hours |
|---|---|
| Consolidation measurements | concentrated dispersions and sediments |
| Observation time | 1 s to 99 h |
| Conformity | ISO/TR 13097; ISO 13318-2; CFR 21 Part 11 |
| Samples | up to 8 simultaneously |
| Volume | 0.05 ml to 2.0 ml |
| Concentration | 0.00015 Vol % – 90 Vol % |
| Density | up to 22 g/cm³ |
| Viscosity | 0.8 – 10^8 mPas |
| Particle size | 10 nm to 1000 µm |
| Light source | multi-wavelength |
| Temperature control | 4 °C to 60 °C, +/– 1K |
| Cells | different material and optical path |
| Dimensions (WxHxD) | 37 x 27 x 60 cm |
| Weight | 40 kg |
| Power supply | 100 V | 120V | 230 V, 50/60Hz |
Key Features
- Deliver fast and direct stability measurements
- Calculate and predict shelf life
- Analyse magnetic particles
- Work with high sample concentrations and a wide range of temperatures
- Needs no material constants
- Immediately see and understand your complete sample top to bottom
- Optimize your dispersion
- Measure and differentiate various degrees of flocculation
- Run up to eight samples simultaneously
- Use disposable cells
- Easy to use
Key Industries
- Medical
- Food & Beverage
- Polymers, Plastics and Rubbers
- Pharmaceutical
- Cosmetics & Personal Care
- Chemical
- Biopharmaceutical and Biotechnology
- Education & Academics
Brand
The LUM GmbH is one of the leading producers for analytical devices for dispersion analysis and particle characterization. On the basis of longtime experiences in the field of fluid mechanics, rheology and colloid chemistry the company, founded by Prof. Dr. D. Lerche in 1994, has developed the innovative STEP-Technology®, which is the technical platform for different product lines. Or measuring equipment is used for the fast, reliable and comprehensive characterization of any demixing phenomena in dispersions and the testing of bonding and adhesive strength of composite materials.
