Lissmac – Slag removing machine – SBM-M D2

LISSMAC systems for metal processing set benchmarks in innovative sheet metal processing through highly-effective, two-sided removal of slag on plasma and thermal cut workpieces using only one work process. Unlike grinding machines, SBM-M D2s win over customers with more efficient processing work savings of up to 60%. Tool costs are significantly reduced in comparison to expensive machining with abrasives due to mechanical removal of the slag.

Inquiry Now

Overview

Features

Specifications

Product Description

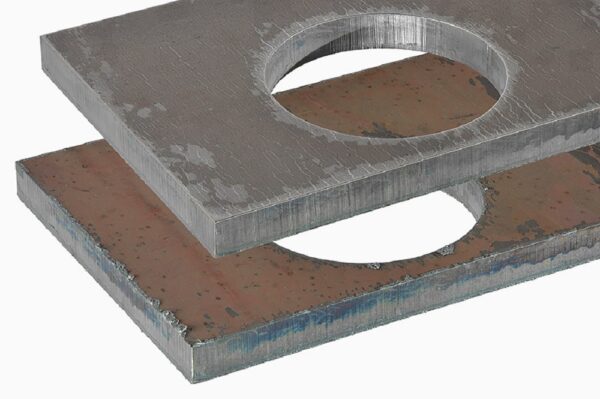

  • Two-side slag removal of plasma and thermal cut sheets up to 120 mm
  • Saving of tool costs incurred by mechanical deslagging –no time-consuming and expensive grinding
  • Two-side slag removal saves the time intensive turning of the often very heavy workpieces or machining of parts twice
  • Up to 60 % work time savings compared to one-side processing machines
  • Modular and compact in modern machine design – smaller footprint
  • Dry operation
  • The cross-machining principle guarantees uniform tool utilisation over the entire working width.
  • Upper and lower assemblies separated can be adjusted or turned on and off electrically
  • Innovative tooling and material feed system allows for optimum handling of burrs and uneven surface of pieces
  • Maximum productivity while maintaining machining quality
  • Improved work environment – Reduction of dust, dirt and noise
  • Optionally available: Conveyor Systems; Material Handling; Robotics & Automation; Processing Tools

Technical Specifications

SBM-M D2
working width max.1000 / 1500 mm
workable material thickness0.5 -120 mm
voltage400 V / 50 Hz
network structure3~ PEN / 3~ PE+N
total power14.5 A
total current consumption6.4 kW
insulation classIP 42
infinitely variable feed speed0-4 m/min.
adjustment of material thicknesselectric
adjustment of toolselectric
weight approx.1800 / 2100 kg
dimensions (W/D/H ) approx.2600/1400/1800 mm
3100/1400/1800 mm
*You can contact us for more parameters and product information.
