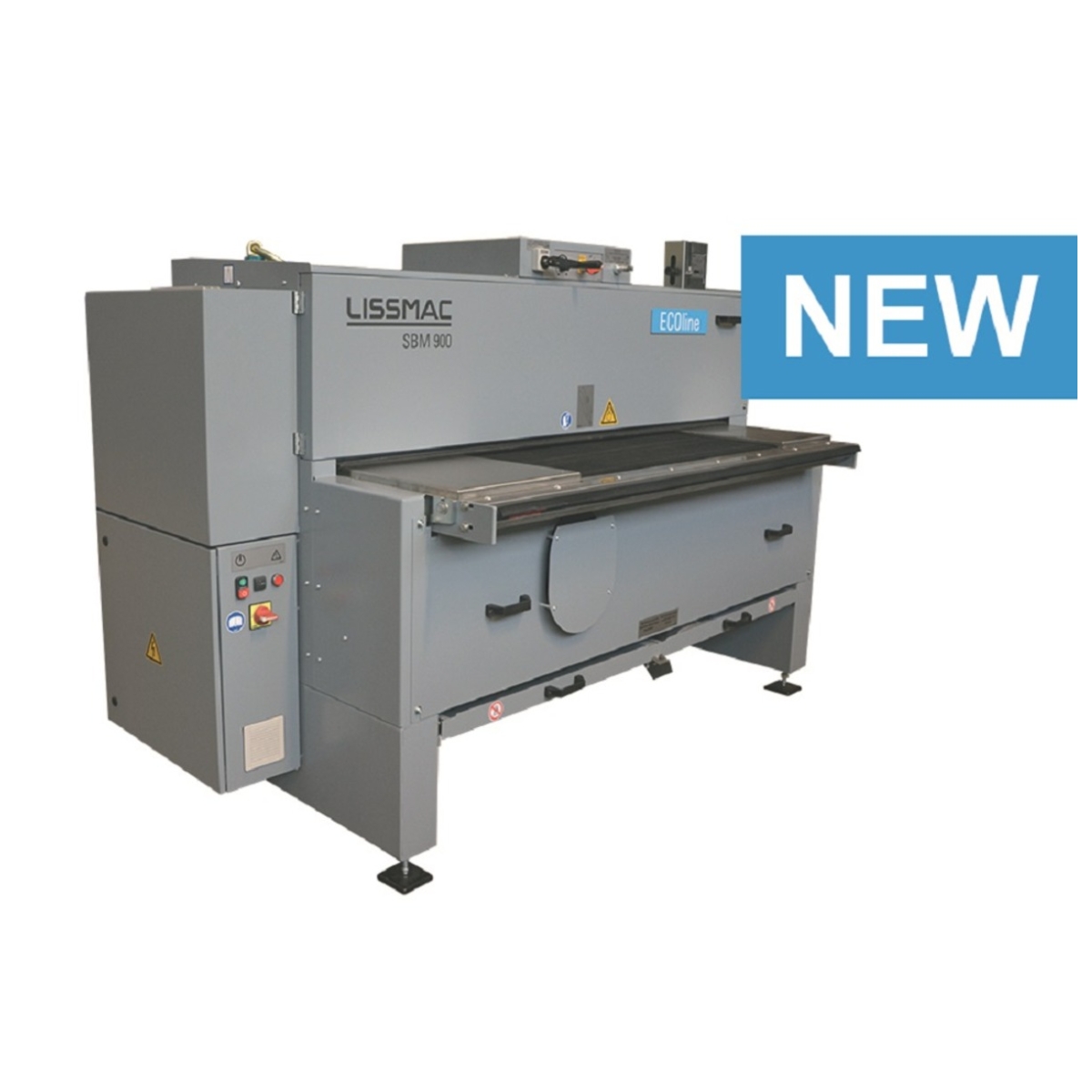

Lissmac – Metal processing machine – SBM 900 S2

  • CHINA

    William Li, General Manager, Gear Machinery, Technology

    DKSH (Shanghai) Ltd. 26F, West Tower, Hanwei Plaza, No.7 Guanghua Road, Chaoyang District 100004 Beijing China

    + 86 10 6561 3988

    + 86 10 6561 0278

    Email

Product Introduction

LISSMAC‘s systems for metal processing set high standards for edge rounding and deburring. Our innovative method of simultaneously processing inside and outside edges of punched or laser-cut parts on both sides in a single pass is highly efficient. Compared to manual deburring, the SBM 900 S2 saves processing times of up to 80%.

Product Description

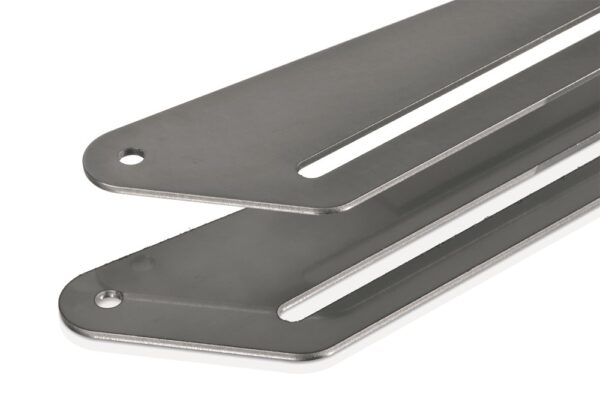

  • Edge rounding of punched or laser-cut parts on both sides (all inside and outside edges) in a single pass
  • Suitable for processing of steel and stainless steel
  • Processing time savings of up to 80% compared to manual processing
  • No need to turn parts over and run them through the machine again
  • Protective film on parts stays intact
  • Easy to operate – plug and play installation
  • Space efficient footprint

Additional benefits for existing customers

  • Supplementary machine for single material processing
  • Alternating operation with pre-existing dust collector possible

Technical Specifications

SBM 900 S2
working width max.900 mm (35.43 Inch)
workable material thickness1-20 mm (0.04-0.79 Inch)
voltage400 V (50 Hz) / 480 V (60 Hz)
network structure3~ PEN / 3~ PE+N
total power27 A / 30 A
total current consumption13 / 15.5 kW
insulation classIP 42
infinitely variable feed speed0-4 m/min (0-13 ft/min)
adjustment of material thicknessfully variable -manual
adjustment of toolsfully variable – manual
weight approx.1550 kg (3417 lbs)
dimensions (W/D/H ) approx.2230/1500/1565 mm
(88/59/62 Inch)
*You can contact us for more parameters and product information.
