Lissmac – Grinding Machine – SMW 1

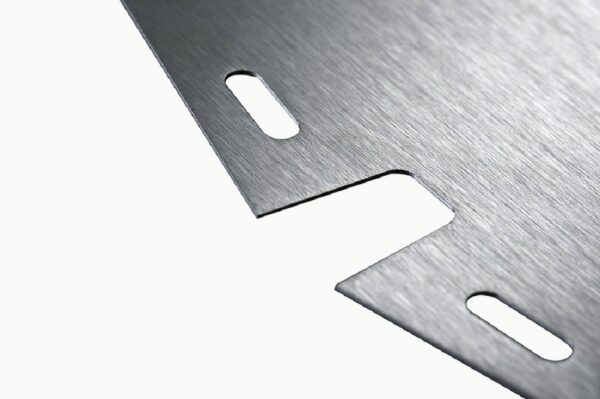

LISSMAC Grinding Machines of the SMW 1 series set benchmarks for perfect surface finish using the wet grinding process.
Available in :
The flexible compact model can be individually configured to meet customer requirements and is characterised by low tool costs, simple handling and also by the cost effective price-performance ratio which results in short amortisation times.
Key Features
- Versatile and multi-purpose
- The first head is equipped with a wide belt grinding belt
- The second head can be equipped with either top brushes or a barrel brush, which can be quickly and easily exchanged
- Great choice for mixed material use
- No wasted time for tool changes, and no need for cleaning between retooling
- No cross contamination
- No dust exposure
- Integrated drying station – No dust collector needed
- Minimal heat generation – suitable for thin metal sheets
- Suitable for processing of oily parts (i.e. stamped or punched parts)
Technical Specifications
| SMW 123 | ||
|---|---|---|
| Working width. | 950 mm (37 inch) | |
| Workable material thickness | 0.5-120 mm (0.02-4.72 inch) | |
| No. of heads | 2 | |
| Configuration | RT / RB | |
| Voltage | 400 V (50 Hz) / 480 V (60 Hz) | |
| Network structure | 3~ PEN / 3~ PE+N | |
| Nominal current | 50 A / 48 A | |
| Nominal power | 23 kW / 28 kW | |
| Insulation class | IP 42 | |
| Feed speed | 1.2-10 m/min. (3.94-32.81 ft/min) | |
| Setting part thickness | electric | |
| Setting Tools (B/T) | manual | |
| Weight | approx.3000 kg (6614 lbs) | |
| Dimensions (W/L/H) | approx. 2390/2205/2130 mm (94/87/84 inch) | |
| *You can contact us for more parameters and product information. | ||
