Leica – Stellaris Confocal Microscopes Platforms
Stellaris Confocal Microscopes can be combined with all Leica modalities, including FLIM, STED, DLS, and CRS. With the STELLARIS confocal platform, we have re-imagined confocal microscopy to get you closer to the truth.
- Follow molecular interactions with FLIM-FRET
- Monitor subtle and fast changes with biosensors
- More reliable and sensitive metabolic imaging
- Fluorophore separation beyond the spectral options
- STELLARIS 8 FALCON for fast lifetime imaging
- All-in-one multimodal imaging
Technical Specifications
| STELLARIS 5 delivers the very best of the Leica confocal platform. It is a powerful core system with integrated WLL, Acousto-Optical Beam Splitter (AOBS), and Power HyD S detectors. | STELLARIS 8 offers all the benefits of the core system plus added functionality, thanks to an extended-spectrum WLL, specialized detector options, and access to dedicated modalities. | |
| Detector | ||
| Power HyD S | included | included |
| Power HyD X, HyD R | optional | optional |
| Lasers | ||
| WLL 485 – 685 nm (+ optional NIR Extension 685-790 nm) | not available | not available |
| WLL 440 – 790 nm | included | included |
| Back-to-light WLL service | optional | optional |
| Features | ||
| TauSense | optional | included |
| ImageCompass | included | included |
| LIGHTNING | included | included |
| Dynamic signal enhancement | included | included |
| AiviaMotion | optional | optional |
| Navigator | included | |
| Modalities | ||
| STED | not available | optional |
| DIVE | not available | optional |
| FALCON | included | optional |
| DLS | optional | optional |
| CRS | not available | optional |
Key Features
How It Works
Leica – Stellaris Confocal Microscopes Platforms
- Confocal
- WWL – white light laser
- Power HyD detector
- Follow molecular interactions
- Fluorophore separation
- Acousto-Optical Beam Splitter
Available Models
Confocal Microscope Platform STELLARIS 5
STELLARIS 5 delivers the very best of our platform. It is a completely re-imagined core system. It is the only confocal system with an integrated WLL, combined with our proprietary Acousto-Optical Beam Splitter (AOBS) and Power HyD S detectors.
Together with unique TauSense technology, STELLARIS 5 sets a new standard for the quality of images and quantity of information generated. This perfected imaging performance is easily attainable thanks to the smart user interface, ImageCompass, which guides you through your experiment set up and acquisition in an easy and intuitive manner.

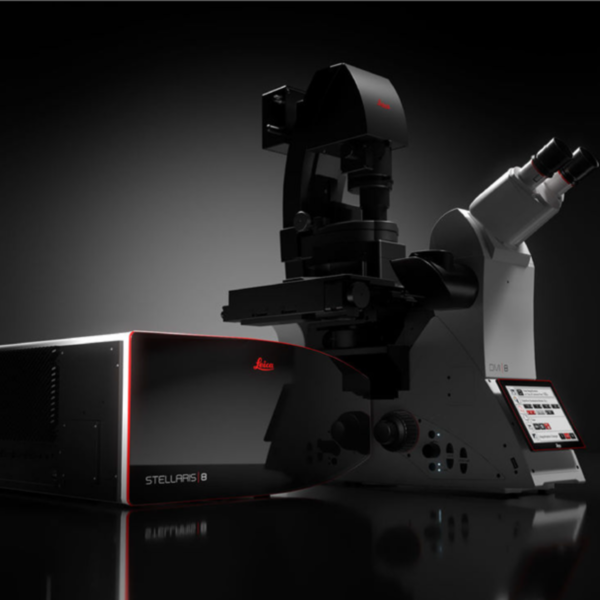

Confocal Microscope Platform STELLARIS 8
STELLARIS 8 is a forward-looking system, offering all the benefits of the STELLARIS 5 core system plus added functionality thanks to an extended spectrum WLL and specialized detector options of the Power HyD family. This allows you to expand the range of confocal applications in your research.
STELLARIS 8 can be combined with all Leica Microsystems modalities, including FAst Lifetime CONtrast (FALCON), Deep In Vivo Explorer (DIVE), STED, Digital Light Sheet (DLS) and CARS. STELLARIS 8 features maximize the potential of these modalities and give you the power and potential to set new standards for research.
Introduction To LAS X For STELLARIS
Brand
Leica Microsystems develops and manufactures microscopes and scientific instruments for the analysis of microstructures and nanostructures.
Widely recognized for optical precision and innovative technology, the company is one of the market leaders in compound and stereo microscopy, digital microscopy, confocal laser scanning and super-resolution microscopy with related imaging systems, electron microscopy sample preparation, and surgical microscopy.
