Lauda – Varioshake Shakers
LAUDA Varioshake shakers are characterized by high reliability and durable mechanics. Equipped with GFL Technology, all products embody the quality and many years’ experience of the former premium manufacturer GFL. They are primarily used in the field of biology and microbiology, in medical diagnostics, in laboratories, test institutes and research institutes, and in quality assurance. With different shaking movements and device properties, LAUDA shakers are the right choice for any application. They also run quietly and are completely reliable, even in continuous operation. They also reliably manage demanding applications with actively regulated temperature control and high temperature stability.
LAUDA shakers with comprehensive variation and adaption options
The LAUDA Varioshake product line encompasses models in multiple sizes, with various shaking motions. LAUDA shakers are available in different variants for a wide variety of applications and for containers of 15 to 50 ml. With accessories like adhesive mats, platform attachments and other equipment elements, the devices can be optimally adapted for any requirement. As a result, they are suitable for use in standard tasks, and as special solutions for individual requirements. Thanks to their compact design and small footprint, they can easily be integrated in existing laboratories.
We offer LAUDA Varioshake shakers in the following variants:
- Reciprocating shakers
- Orbital shakers
- Tumbling shakers
- Rocking shakers

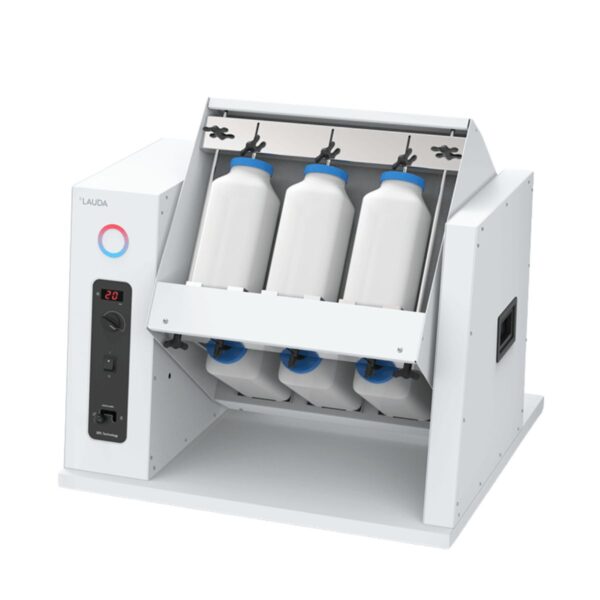

- Overhead shakers
- Shaking incubators
Available Models
Technical Specifications
| Shaking motion | bidirectional |
| Shaking frequency min. | 20/min |
| Shaking frequency max. | 300/min |
| Shaking amplitude | 30 mm |
| Load capacity max. | 15 kg |
| Shaking platform width | 450 mm |
| Shaking platform depth | 450 mm |
| Overall dimensions (WxDxH) | 480 x 487 x 160 mm |
| Ambient temperature min. | 10 °C |
| Ambient temperature max. | 50 °C |
Technical Specifications
| Shaking motion | bidirectional |
| Shaking frequency min. | 20/min |
| Shaking frequency max. | 300/min |
| Shaking amplitude | 20 mm |
| Load capacity max. | 8 kg |
| Shaking platform width | 330 mm |
| Shaking platform depth | 330 mm |
| Overall dimensions (WxDxH) | 350 x 355 x 160 mm |
| Ambient temperature min. | 10 °C |
| Ambient temperature max. | 50 °C |
Technical Specifications
| Shaking motion | bidirectional |
| Shaking frequency min. | 20/min |
| Shaking frequency max. | 300/min |
| Shaking amplitude | 20 mm |
| Load capacity max. | 8 kg |
| Shaking platform width | 330 mm |
| Shaking platform depth | 330 mm |
| Overall dimensions (WxDxH) | 350 x 375 x 160 mm |
| Ambient temperature min. | 10 °C |
| Ambient temperature max. | 60 °C |
Technical Specifications
| Shaking motion | orbital |
| Shaking frequency min. | 20/min |
| Shaking frequency max. | 300/min |
| Shaking amplitude | 30 mm |
| Load capacity max. | 15 kg |
| Shaking platform width | 450 mm |
| Shaking platform depth | 450 mm |
| Overall dimensions (WxDxH) | 480 x 487 x 160 mm |
| Ambient temperature min. | 10 °C |
| Ambient temperature max. | 50 °C |
Technical Specifications
| Shaking motion | orbital |
| Shaking frequency min. | 20/min |
| Shaking frequency max. | 250/min |
| Shaking amplitude | 32 mm |
| Load capacity max. | 30 kg |
| Shaking platform width | 676 mm |
| Shaking platform depth | 540 mm |
| Overall dimensions (WxDxH) | 705 x 607 x 160 mm |
| Ambient temperature min. | 10 °C |
| Ambient temperature max. | 50 °C |
Technical Specifications
| Shaking motion | orbital |
| Shaking frequency min. | 20/min |
| Shaking frequency max. | 500/min |
| Shaking amplitude | 10 mm |
| Load capacity max. | 8 kg |
| Shaking platform width | 330 mm |
| Shaking platform depth | 330 mm |
| Overall dimensions (WxDxH) | 350 x 355 x 160 mm |
| Ambient temperature min. | 10 °C |
| Ambient temperature max. | 50 °C |
Technical Specifications
| Shaking motion | orbital |
| Shaking frequency min. | 20/min |
| Shaking frequency max. | 500/min |
| Shaking amplitude | 10 mm |
| Load capacity max. | 8 kg |
| Shaking platform width | 330 mm |
| Shaking platform depth | 330 mm |
| Overall dimensions (WxDxH) | 350 x 355 x 160 mm |
| Ambient temperature min. | 10 °C |
| Ambient temperature max. | 50 °C |
Technical Specifications
| Shaking motion | tumbling |
| Shaking frequency min. | 2/min |
| Shaking frequency max. | 50/min |
| Shaking amplitude | 3 ° |
| Load capacity max. | 15 kg |
| Shaking platform width | 450 mm |
| Shaking platform depth | 450 mm |
| Overall dimensions (WxDxH) | 480 x 487 x 160 mm |
| Ambient temperature min. | 10 °C |
| Ambient temperature max. | 50 °C |
Technical Specifications
| Shaking motion | rocking |
| Shaking frequency min. | 2/min |
| Shaking frequency max. | 50/min |
| Shaking amplitude | 3 ° |
| Load capacity max. | 15 kg |
| Shaking platform width | 450 mm |
| Shaking platform depth | 450 mm |
| Overall dimensions (WxDxH) | 480 x 487 x 160 mm |
| Ambient temperature min. | 10 °C |
| Ambient temperature max. | 50 °C |
Technical Specifications
| Shaking motion | overhead rotating |
| Shaking frequency min. | 1/min |
| Shaking frequency max. | 20/min |
| Load capacity max. | 20 kg |
| Overall dimensions (WxDxH) | 770 x 700 x 715 mm |
| Ambient temperature min. | 10 °C |
| Ambient temperature max. | 40 °C |
Technical Specifications
| Shaking motion | orbital |
| Shaking frequency min. | 20/min |
| Shaking frequency max. | 250/min |
| Shaking amplitude | 25 mm |
| Load capacity max. | 20 kg |
| Overall dimensions (WxDxH) | 930 x 890 x 820 mm |
| Ambient temperature min. | 10 °C |
| Ambient temperature max. | 30 °C |
| Temperature stability | 0.2 ± K |
Technical Specifications
| Shaking motion | orbital |
| Shaking frequency min. | 20/min |
| Shaking frequency max. | 250/min |
| Shaking amplitude | 25 mm |
| Shaking platform width | 420 mm |
| Shaking platform depth | 270 mm |
| Overall dimensions (WxDxH) | 710 x 650 x 710 mm |
| Ambient temperature min. | 10 °C |
| Ambient temperature max. | 30 °C |
| Temperature stability | 0.2 ± K |
Technical Specifications
| Shaking motion | orbital |
| Shaking frequency min. | 20/min |
| Shaking frequency max. | 250/min |
| Shaking amplitude | 30 mm |
| Shaking platform width | 450 mm |
| Shaking platform depth | 450 mm |
| Overall dimensions (WxDxH) | 559 x 687 x 628 mm |
| Ambient temperature min. | 10 °C |
| Ambient temperature max. | 30 °C |
| Temperature stability | 0.2 ± K |
Key Features
The Benefits of LAUDA Shakers at a Glance:
- Numerous and variable equipment options
- Wide variety of application options, thanks to comprehensive accessories
- Powerful and durable
- Compact, robust and space-saving design
- Infinitely adjustable, intuitive controls
- Excellent temperature control, even for demanding applications
