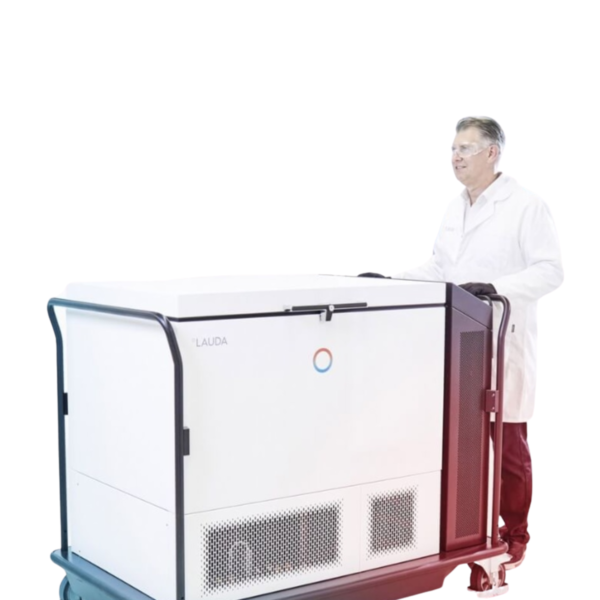

Lauda – Mobile Ultra Low Temperature Chest Freezer – Mobifreeze
Mobile, Battery-Powered and Precisely Temperature-Controlled
With LAUDA Ultra-freezers, you can be confident that deep-freezing will be safe and reliable. Mobile ultra-deep-freeze chest freezers with active temperature control ensure reliable cold chain maintenance in intralogistics and interfactory transportation. Thanks to excellent insulating properties, the ultra-deep-freeze chest freezer is the perfect solution for transporting delicate and temperature-sensitive materials.
In addition to storing sensitive samples under validated conditions, it is equally important to transport them under identical conditions. Our ultra low temperature chest freezer guarantees mobile, low-temperature transport.
Technical Specifications
| Working Temperature Range | -86 … -50 °C |
| Temperature Stability | 3 ± K |
|---|---|
| Ambient Temperature Range | 15 … 28 °C |
| Max. Filling Volume | 270 L |
| Interior Dimensions (WxDxH) | 900 x 600 x 500 mm |
| Dimensions (WxDxH) | 1471 x 933 x 1217 mm |
| Weight | 325 kg |
| Cool Down Time | from 20 °C to -80 °C in 3 h |
| Thawing Time | from -80 °C to 0 °C in 10 h |
| Power Supply | 230 V; 50 Hz |
| Power Plug | Power cord with angled plug (CEE7/7) |
Key Features
Advantages for Transport and Logistics
- Mobile ultra-deep-freeze chest freezer with active temperature control for reliable maintenance of the cold chain in intralogistics and for inter-factory transport in road logistics
- Logistics solution without dry ice for the transport of temperature-sensitive samples, APIs or vaccines at the validated/prescribed storage temperature
- Prevention of risks caused by transfer, contamination, damage or confusion
Natural Refrigerants Instead of Dry Ice
- Dispensing with hazardous dry ice and its requirements (aeration, health protection)
- Environmentally friendly, future-proof operation with natural refrigerants
Mains and Battery Mode Switch-Over
- High-performance battery with increased protection against overheating (lithium-ion phosphate battery technology)
- Flexible switching between mains and battery power possible, automatic charging wit
High-Quality Design
- Interior consists completely of high-grade stainless steel
- High-grade vacuum insulation (VIP) for optimized temperature maintenance
Alarm and Display Function
- Acoustic and visual alarm if limit values are exceeded
- Integrated data logger for the storage of temperature and alarm data

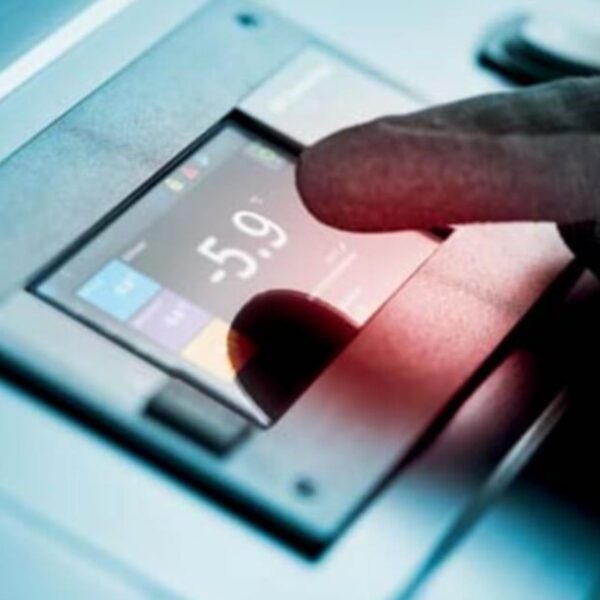

- User-friendly 4.3″ touch screen operating unit with digital display for the input and retrieval of all safety-critical values
- Protection against unauthorized access to set points by way of password-protected user management
