Lauda – Loop Thermo – Electric Circulation Thermostats
The compact circulation thermostat for external applications from 4 to 80°C.

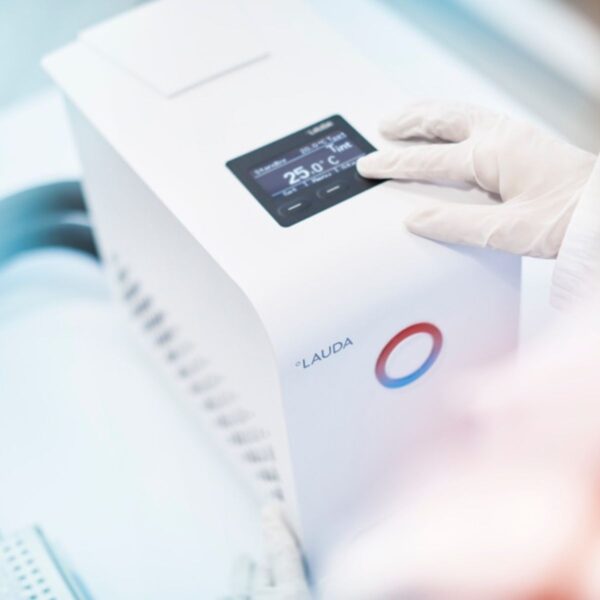

The LAUDA LOOP circulation thermostat is sure to impress with its constant temperature between 4 and 80°C and astonishing flexibility. Its compact construction and low weight, as well as wide voltage input range of 100 to 240 volts, make it possible to put it to use flexibly and spontaneously anywhere in the world – the “Plug and Play” setup with quick-fit couplings makes it especially easy to use. The intuitive three-button softkey operation and simple menu navigation in five available languages via the well-lit, high-contrast OLED display make using the device a breeze.
Technical Specifications
| Working temperature | 4…80°C |
| Temperature stability | 0.1 ±K |
|---|---|
| Heating output at 20°C | 200…400 W |
| Cooling output at 20°C | 120…250 W |
| Cooling output at 10°C | 60…130 W |
| Weight | 6.9…11.0 kg |
| Pump pressure max. | 0.8 bar |
| Flow rate max. | 2.6 L/min |
| Tank capacity | 300 ml |
Available Models
Technical Specifications
| Working temperature | 4…80°C |
| Temperature stability | 0.1 ±K |
| Heating output at 20°C | 200 W |
| Cooling output at 20°C | 120 W |
| Cooling output at 10°C | 60 W |
| Weight | 6.9 kg |
| Pump pressure max. | 0.8 bar |
| Flow rate max. | 2.6 L/min |
| Tank capacity | 300 ml |
The LAUDA LOOP product line includes two thermo-electric circulation thermostats for external temperature control. The temperature control thermostating is by means of a current flow via a semiconductor relay. Both heating and cooling can be achieved simply by reversing polarity in a small space. The two air-cooled device types, L 100 and L 250, provide cooling capacities of 120 and 250 Watts, as well as a temperature range of 4 to 80 °C. The focus is on applications requiring constant temperature with a low power requirement. Both device types are exceptionally efficient in partialload operation.
Technical Specifications
| Working temperature | 4…80°C |
| Temperature stability | 0.1 ±K |
| Heating output at 20°C | 400 W |
| Cooling output at 20°C | 250 W |
| Cooling output at 10°C | 130 W |
| Weight | 11.9 kg |
| Pump pressure max. | 0.8 bar |
| Flow rate max. | 2.6 L/min |
| Tank capacity | 300 ml |
The LAUDA LOOP product line includes two thermo-electric circulation thermostats for external temperature control. The temperature control thermostating is by means of a current flow via a semiconductor relay. Both heating and cooling can be achieved simply by reversing polarity in a small space. The two air-cooled device types, L 100 and L 250, provide cooling capacities of 120 and 250 Watts, as well as a temperature range of 4 to 80 °C. The focus is on applications requiring constant temperature with a low power requirement. Both device types are exceptionally efficient in partialload operation.
Key Features
- The L100 and L250 air-cooled device types achieve a cooling capacity of 120 and 250 watt. The devices are primarily for use at constant temperatures with low power requirements. Both device types are especially energy-efficient and silent in partial-load operation.
- Temperature control thermostating of small sample sizes in the laboratory
- Heat dissipation at an LED light source (LED array)
- Temperature control thermostating of the tubes in a polarimeter at 20 and 25 °C
- Process refractometer at 25 °C
