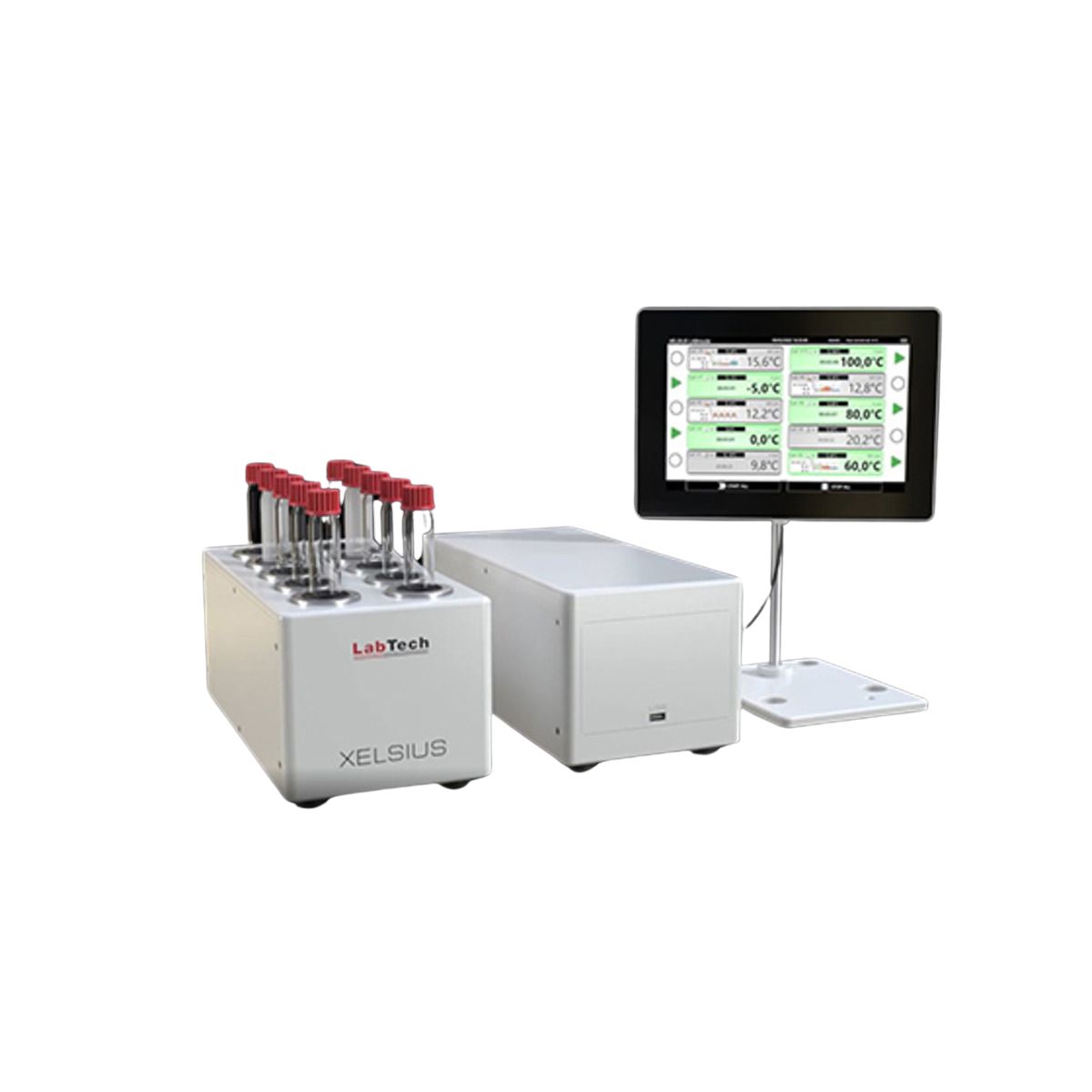

LabTech – XELSIUS
A compact and fast reactor with 10 completely individually tempered and stirred reactor cells in the temperature range from -20°C to +150°C. This system is suitable for parallel synthesis, flow chemistry, reaction and process optimization as well as for performing DoE (Design of Experiment) studies. Save valuable space in the fume hood with a flexible and innovative solution. With XELSIUS you save time, increasing your laboratory throughput.
Key Features
12 Good Reasons To Choose LabTech XELSIUS
- Wide temperature range -20°C to +150°C
- Different stirring rate in each vial
- Long lifetime reaction cell
- Ergonomic and small footprint
- Overheat Protection for safety operation
- Very intuitive and user-friendly Interface
- Independent control of all parameters for each cell
- PTFE coated surface resistant to aggressive acids/solvents
- Live monitoring of flow and temperature on graphical display
- Temperature stability and accuracy of 0,1°C
- Gloves sensitive touch screen
- Flexibility of operation under fume hood or outside on bench-top surface
10 Different Reaction Profiles. Simultaneously.
10 in 1… and Much More!
Ten experiments in a single unit precisely, with completely and independently heating, cooling and stirring. Ideal for relieable results in solubility determination, catalyst supported reactions, DoE, crystallization experiments and PCR reactions.
Advanced Software Made Simple
By using the software in LAB mode, simply set the temperature, stirrer and desired time or ramp and start immediately. With intuitive and clearly arranged features, you can start working productively with the Xelsius after just a few clicks.
Accessories That Matter
Different configurations and accessories are available to satisfy your laboratory requirements.
Technical Specifications
| Reaction Cell Positions | 10 |
| Reaction Cell Diameter | 24mm |
|---|---|
| Reaction Cell Power | 100W |
| Working Temperature Range | -20°C to +150°C |
| Temperature Accuracy | ±0,1°C |
| Temperature Stability | ±0,1°C |
| Temperature Ramping | Independent for each cell |
| Maximum Heating Rate | +48°C/min |
| Maximum Cooling Rate | -36°C/min |
| Temperature Variation With Time Function Yes | Yes |
| Heating and Cooling Mode | Peltier Module System |
| Stirring Rate | 100 to 1.500 RPM |
| Sample Volume for each cell | Up to 30ml |
| Sampling during the reaction | Yes |
| Inert Gas atmosphere | Yes |
| Separate Electronic Module | Yes |
| Built-in anti-condensing circuit | Yes |
| Over Heating Protection | Yes |
Innovation Starts With XELSIUS
This system is suitable for parallel synthesis, temperature studies, crystallization analysis, solubility profiling, flow chemistry, reaction and process optimization as well as for performing DoE (Design of Experiment) studies.
Brand
LabTech is a leading manufacturing company with skill and passion devoted to provide advanced laboratory solutions to the analytical community. Major LabTech products include organic/inorganic sample preparation systems, laboratory cooling/heating/temperature control equipments, analytical instruments, gas generators, laboratory centrifuges and liquid nitrogen generators. With knowledgeable scientists and experienced engineers, our R&D team has developed and released a series of new equipments and instruments dedicated to the modern analytical laboratories.
