  • Organic Sample Preparation Brochure


Solid-phase extraction, commonly referred to the acronym SPE, is an extraction technique that uses the affinity of a solid substance (solid phase), generally packed in columns or disks, with one or more substances present in a more or less complex matrix.

Differently than any other systems, the LabTech WSPE vacuum manifold features a patented valve system able to grant precise fl ow control through each cartridge. The WSPE vacuum manifolds allow to process up to 12 (WSPE12) or 24 (WSPE24) samples simultaneously.

The Extrapid manual SPE system is the ideal partner when treatment of large volume samples is required. A unique and fl exible extraction solution for standard and routine SPE needs in environmental analysis.

The Sepaths UP is designed for both cartridge and disk applications to treat samples with different volumes. It automatically treats from 1 to 12 same or different samples, through the whole treatment process, including condition, sample loading, rinsing, elution and concentration.

The SepLine-S automated solid phase extractor is the result of the latest liquid-solid extraction techniques and mass chromatography highest requirements in terms of sensitivity and reproducibility.

Key Features

6 Good Reasons To Choose LabTech SPE Solutions

  • Simplification of complex sample matrix
  • Best pre-concentration
  • Low contamination possibility
  • Process than can be fully automated
  • Saving time during analysis
  • Higher accuracy and reproducibility

Best By Design And Flexibility

The Solid-Phase Extraction (SPE) sample preparation method was developed by a combination of extraction and chromatography. It is mainly used for separation, purification, and concentration of samples. It has found applications in environmental protection.

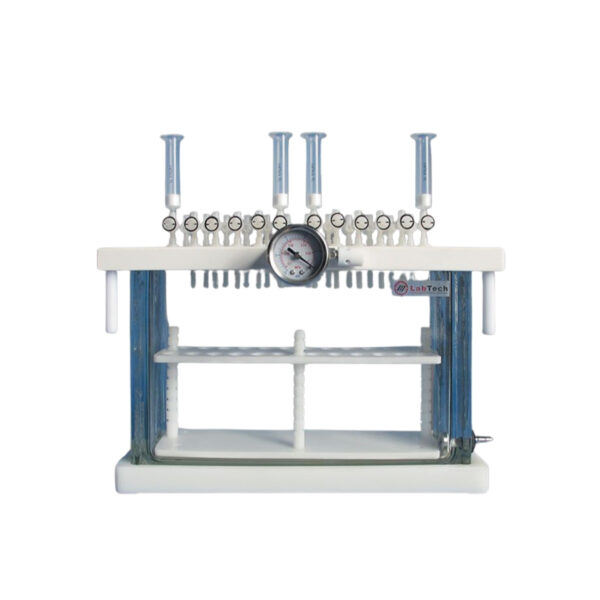

WSPE

SPE Process control of the flow rate is critical to guarantee reproducible extractions. Differently than any other systems, the LabTech WSPE vacuum manifold features a patented valve system able to grant precise flow control through each cartridge. The WSPE vacuum manifolds allow to process up to 12 (WSPE12) or 24 (WSPE24) samples simultaneously.

Technical Features

  • Glass base resistant to solvents preventing condensation and discoloration
  • Anticorrosion cover to avoid deformation under high-pressure working conditions
  • High quality and reliable PTFE rack
  • Screw-type solvent resistant vacuum regulator for accurate vacuum control
  • PTFE rack for 11, 13 and 15mm tubes to satisfy daily use and virtually all laboratory needs

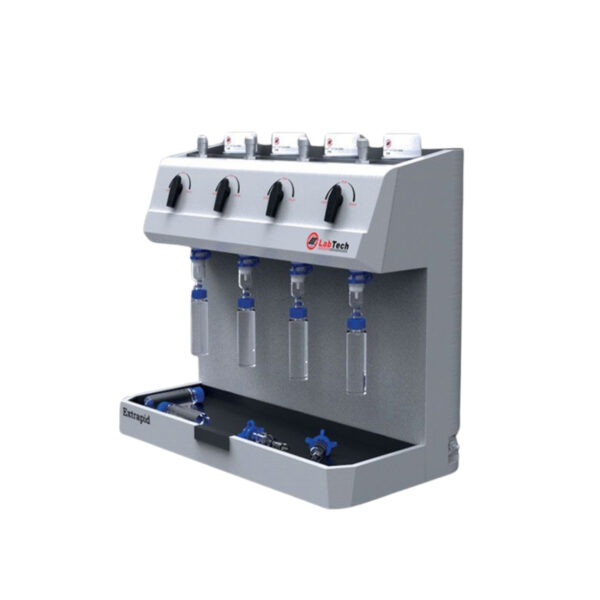

Extrapid

The Extrapid manual SPE system is the ideal partner when treatment of large volume samples is required. A unique and flexible extraction solution for standard and routine SPE needs in environmental analysis.

Technical Features

  • 3-ways valves to efficiently control the sample collection and the waste discharge
  • During operation process:

– No need to switch ON/OFF the vacuum pump

– No need to wait for venting and removing collection vials

– No need to drain the waste liquid and clean the vacuum chamber

  • Up to 4 samples run individually or simultaneously
  • 1, 3, 6mL cartridge and 47, 90mm disk options
  • Flow control valve ensuring accurate flowrate and high reproducibility
  • Sample flowrate from 1 to 45mL/min
  • Parts directly in contact with solvents made of PTFE or stainless steel to ensure excellent anticorrosion resistance

Sepaths UP

The Sepaths UP is designed for both cartridge and disk applications to treat samples with different volumes. It can be applied to extract trace organic compounds from drinking water, surface water, ground water, food, beverage and other samples. Sepaths UP automatically treats from 1 to 12 same or different samples, through the whole treatment process, including condition, sample loading, rinsing, elution and concentration. It is a closed system able to completely remove solvent vapors trough the exhaust line (included).

Technical Features

  • From 1 to 120mL/min flow rate
  • Accurate control loading rate of small amount of sample
  • Sample volume from 1mL to 20L
  • Different cartridge and disk available
  • Different sample collection vials options
  • Display for real-time process
  • Solvent and sample management system
  • Fast concentration nitrogen flow
  • Optional concentration module
  • Automatic spray cleaning of sample bottles
  • Possibility to manage via software up to 8 solvents
  • Separated aqueous and organic waste collection
  • Possibility to separate different sample phases
  • Possibility to configure the system with 4, 6, 8, 10 or 12 samples
  • 1 to 12 samples run simultaneously
  • High pressure protection system
  • Intuitive and easy to use software

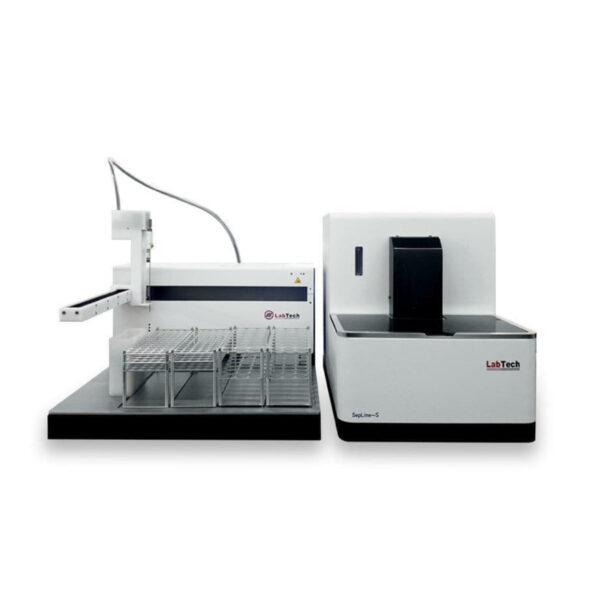

SepLine-S

The SepLine-S automated solid phase extractor is the result of the latest liquid-solid extraction techniques and mass chromatography highest requirements in terms of sensitivity and reproducibility. Largely used in environmental protection, food, petrochemical, pharmaceutical, clinical, life sciences and other applications thanks to its flexibility. The SepLine-S series includes two models: Single and Dual channels. Condition, sample loading, rinsing and elution steps are processed automatically by software according to user needs. A unique low-pressure sealing technology accurately controls the liquid flow through the syringe and avoid cross contamination. Multichannel mode improves the efficiency of the SPE method and guarantees reproducibility and stability of sample pre-treatment.

Technical Features

  • Automated process of sample transfer, rinsing, loading, drying, washing and elution
  • Positive pressure pump to ensure accurate flow rate and high recovery
  • Automated holder up to 60 cartridges controlled via software
  • Unique low pressure sealing tech and air bubble technique to prevent sample/solvent cross contamination
  • Standard nitrogen blowing function
  • Up to 7 different solvents managed via software
  • Septum piercing function to prevent solvent evaporation
  • Dispensing needle cleaning function to avoid cross contamination during liquid handling
  • Different volume sample vials and rack options
  • User friendly software with intuitive graphic interface
  • Optional sample tray cooling device

Brand

LabTech S.r.l.

LabTech is a leading manufacturing company with skill and passion devoted to provide advanced laboratory solutions to the analytical community. Major LabTech products include organic/inorganic sample preparation systems, laboratory cooling/heating/temperature control equipments, analytical instruments, gas generators, laboratory centrifuges and liquid nitrogen generators. With knowledgeable scientists and experienced engineers, our R&D team has developed and released a series of new equipments and instruments dedicated to the modern analytical laboratories.
