Koenig & Bauer – Offline-Solutions – udaFORMAX

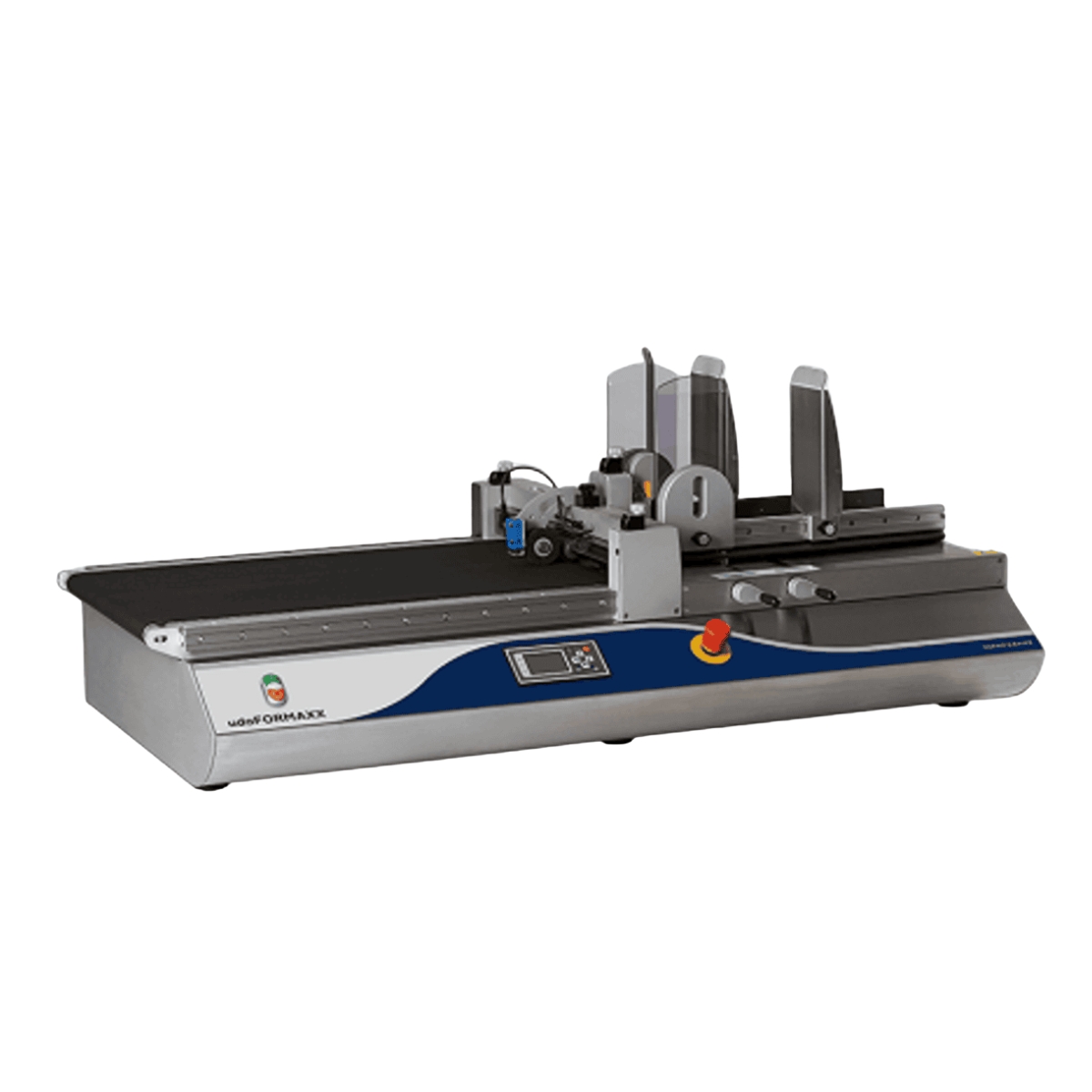

The udaFORMAXX can be fitted with a variety of coding systems for printing on flat folding cartons, sleeves, cardboard blanks and labels. The Koenig & Bauer Coding portfolio offers you suitable models for all applications, meeting your individual coding standards.

Available in :

Inquire Now

Overview

Features

Specifications

Offline coding with our own stack-to-stack processing is ideal for applying variable data flexibly and precisely in small and medium batch sizes outside the production line.

Key Features

  • Simple and reproducible settings.
  • Ease of use and high reliability.
  • Quick format change.
  • Just-in-time printing for small and medium batch sizes and customization of standard packaging.
  • Can be combined with all coding systems.
  • Compact stand alone system.

Available Models

Compact, stand alone system which integrates with all the KBA-Metronic coding devices, for the offline coding.

Possible application fields include the application of variable dates, best-before-date, consecutive numbering, price and content information, barcodes, logos, addressing, personalization and small-scale printing jobs.

Key Features

  • Simple and reproducible settings.
  • Ease of use and high reliability.
  • Quick format change.
  • Just-in-time printing for small and medium batch sizes and customization of standard packaging.
  • Can be combined with all coding systems.
  • Compact stand alone system.

Technical Specifications

Continuous Yes
IntermittentNo
Output max750 pcs./min
Speed9 – 90 m/min
Controller with graphic displayStandard
Parameterisation with a hand-held scannerOption (RS 232)
Control/parameterisation via PC/PLCOption (RS 232)
Dimensions (L x W x H)1300 mm x 710 mm x 560 mm
Area for integration of marking/reading devices560 mm
Weight115 kg
Sound level66 db
Material – Substrate Dimensions min.64 x 45 mm, optional 32 x 45
Material – Substrate Dimensions max.372 x 430 mm, optional 372 x 500 mm
Material strength min.100 g/m²
Material thickness max.5.0 mm

Compact, stand alone system which integrates with all the KBA-Metronic coding devices, for the offline coding.

Possible application fields include the application of variable dates, best-before-date, consecutive numbering, price and content information, barcodes, logos, addressing, personalization and small-scale printing jobs.

Key Features

  • Simple and reproducible settings.
  • Ease of use and high reliability.
  • Quick format change.
  • Just-in-time printing for small and medium batch sizes and customization of standard packaging.
  • Can be combined with all coding systems.
  • Compact stand alone system.

Technical Specifications

Continuous Yes
IntermittentYes
Output max750 pcs./min
Speed9 – 90 m/min
Controller with graphic displayStandard
Parameterisation with a hand-held scannerOption (RS 232)
Control/parameterisation via PC/PLCOption (RS 232)
Dimensions (L x W x H)1300 mm x 710 mm x 520 mm
Area for integration of marking/reading devices560 mm
Weight115 kg
Sound level66 db
Material – Substrate Dimensions min.30 x 60 mm
Material – Substrate Dimensions max.450 x 500 mm
Material strength min.100 g/m²
Material thickness max.7.5 mm

Compact, stand alone system which integrates with all the KBA-Metronic coding devices, for the offline coding.

Possible application fields include the application of variable dates, best-before-date, consecutive numbering, price and content information, barcodes, logos, addressing, personalization and small-scale printing jobs.

Key Features

  • Simple and reproducible settings.
  • Ease of use and high reliability.
  • Quick format change.
  • Just-in-time printing for small and medium batch sizes and customization of standard packaging.
  • Can be combined with all coding systems.
  • Compact stand alone system.

Technical Specifications

Continuous Yes
IntermittentNo
Output max750 pcs./min
Speed9 – 90 m/min
Controller with graphic displayStandard
Parameterisation with a hand-held scannerOption (RS 232)
Control/parameterisation via PC/PLCOption (RS 232)
Dimensions (L x W x H)1875 mm x 1200 mm x 560 mm
Area for integration of marking/reading devices1115 mm
Weight133 kg
Sound level66 db
Material – Substrate Dimensions min.64 x 45 mm, optional 32 x 45 mm
Material – Substrate Dimensions max.372 x 430 mm, optional 372 x 500 mm
Material strength min.100 g/m²
Material thickness max.5 mm

Key Industries

  • Automotive
  • Cosmetics & Personal Care
  • Food and Beverage
  • Machinery and Manufacturing
  • Pharmaceutical
