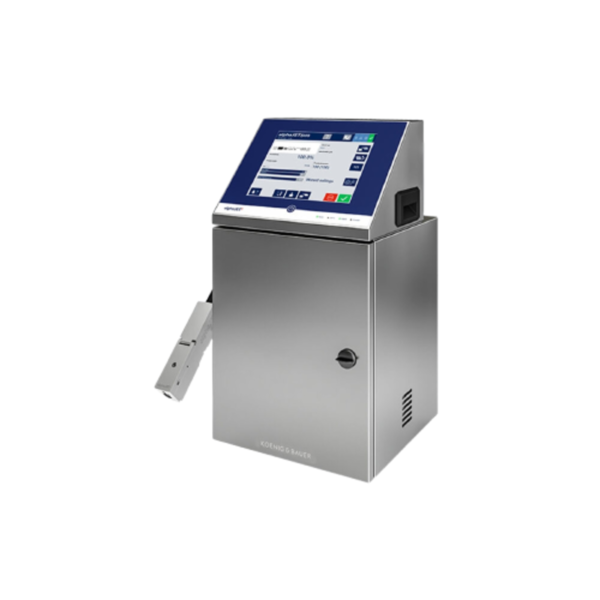

Koenig & Bauer – Continuous Inkjet Systems – alphaJET
Continuous Inkjet (CIJ) coding is ideal when the speed and legibility of characters are important for applying variable dates directly at the production line.
In addition to precise printing results, alphaJET systems offer you a very high degree of reliability in everyday production. To meet your individual coding requirements, the Koenig & Bauer Coding portfolio offers you suitable models for all applications.
Key Features
- Highest production reliability. Machine uptime of more than 99%
- Easy integration and high-speed printing to increase productivity
- The extensive ink portfolio allows you to customize to customer wishes
- Low consumption at affordable prices
Available Models
Technical Specifications
| alphaJET mondo | |
|---|---|
| Line Speed Max. | 780 m/min |
| Line speed at 2.5 mm character width | 385 m/min |
| Max. lines | 5 |
| Print head nozzle size | 62 μm |
| Active ink flow | No |
| Print head supply hose length | 3 m |
| 90°-angled print head | No |
| Ink | Standard, special |
| Operation | 8.4” TFT touchscreen display with a comfortable user interface, camera interface, code-M software |
| Safety | IP 65 protection class |
| Dimensions (H x W x L; mm) | Housing: 455 x 350 x 290, 18 kg Print head: 145 x 40 x 40, 2 kg |

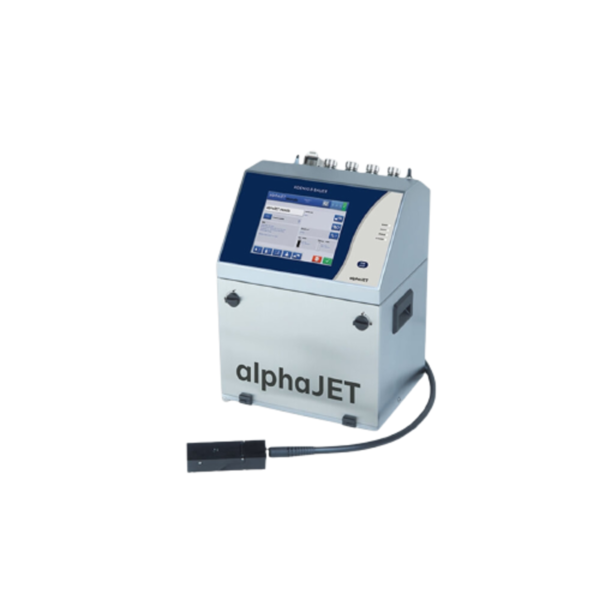

The continuous inkjet alphaJET mondo is the perfect combination of performance, quality and low cost.
- Low consumption in combination with affordable prices.
- The operator interface grants simple, intuitive operation via a large touch screen.
- Compact design and protection class IP 65 as standard.
- Low maintenance and a clever design set new standards.
- Very high reliability in order to keep your production running.
- Best print quality and utmost preciseness are characteristic for the alphaJET mondo.
Key Features
- Excellent availability
- Compact design
- Simple, intuitive operation
- Lowest running costs
Continuous inkjet printer alphaJET into for crisp coding in high contrast with pigmented inks. Prints in high quality even with high speed.
- Cost-effective for high standard applications.
- User friendly operation with comfortable, colour TFT-touch display.
- High quality and robust design with protection class IP 65.
- Versatile, because it is compatible with the huge range of inks, pigmented or dye-based.
- Prints in high quality even with high speed.
- High contrast coding.
Key Features
- Pigmented and dye-based inks
- 1-5 print lines
- Protection class IP 65
Technical Specifications
| Line speed max. | 950 m/min |
| Line speed at 2.5 mm character width | 460 m/min |
| Max. lines | 5 |
| Print head nozzle size | 55 / 70 μm |
| Active ink flow | Yes |
| Print head supply hose length | 4 m |
| 90°-angled print head | Yes |
| Ink | Standard, high-contrast, special |
| Operation | 10.4” TFT touchscreen display with a comfortable user interface, code-M software |
| Safety | IP 65 protection class |
| Dimensions (H x W x L; mm) | Housing: 620 x 320 x 320, 26 kgPrint head: 145 x 40 x 40, 2 kg |
Application fields of alphaJET evo include the application of dates, logos, barcodes, lot numbers, longer texts and graphics in clean standard characters which must be applied precisely.
- Lowest consumption level on the market.
- Pinpoint sharp codes, precise logos, exact texts even with the most complex demands.
- It is very easy to integrate our systems into production lines and network. You are well equipped for the future with our optimal software for camera connection, access to data bases or other demands.
- Our continuous inkjet systems offer maximum dependability for smooth production processes.
- A compact printing head, protection class IP 65 and all usual interfaces are standard features of our alphaJET systems.
Key Features
- Highest functional diversity
- 1-8 print lines
- Extensive standard functions
- Lowest consumption
Technical Specifications
| Line speed max. | 950 m/min |
| Line speed at 2.5 mm character width | 460 m/min |
| Max. lines | 8 |
| Print head nozzle size | 55 / 70 μm |
| Active ink flow | Yes |
| Print head supply hose length | 4 / 6 m |
| 90°-angled print head | Yes |
| Ink | Standard, high-contrast, special |
| Operation | 10.4” TFT touchscreen display with a comfortable user interface, camera interface, code-M software |
| Safety | IP 65 protection class |
| Dimensions (H x W x L;700 x 320 x 320, 31 kg mm) | Housing: 700 x 320 x 320, 31 kgPrint head: 145 x 40 x 40, 2 kg |
The alphaJET pico offers users a high degree of flexibility and delivers accurate print results in smallest format. Lowest consumption level on the market. Benefit from this and save costs.
- Pinpoint sharp codes, precise logos, exact texts even with the most complex demands.
- It is very easy to integrate our systems into production lines and network. You are well equipped for the future with our optimal software for camera connection, access to data bases or other demands.
- Our continuous ink jet systems offer maximum dependability for smooth production processes.
- A compact printing head, protection class IP 65 and all usual interfaces are standard features of our alphaJET systems.
Key Features
- Small fonts
- 1-5 print lines
- Integration into networks
- Protection class IP 65
Technical Specifications
| Line speed max. | 1,300 m/min |
| Line speed at 2.5 mm character width | 695 m/min |
| Max. lines | 5 |
| Print head nozzle size | 42 μm |
| Active ink flow | Yes |
| Print head supply hose length | 4 / 6 m |
| 90°-angled print head | Yes |
| Ink | Standard, high-contrast, special |
| Operation | 10.4” TFT touchscreen display with a comfortable user interface, camera interface, code-M software |
| Safety | IP 65 protection class |
| Dimensions (H x W x L; mm) | Housing: 700 x 320 x 320, 31 kgPrint head: 145 x 40 x 40, 2 kg |
Precise marking at a very high speed is the speciality of the alphaJET tempo. Distance measurement is a standard feature and optional customized software is possible.
- Lowest consumption level on the market. Benefit from this and save costs.
- Pinpoint sharp codes, precise logos, exact texts even with the most complex demands.
- It is very easy to integrate our systems into production lines and network. You are well equipped for the future with our optimal software for camera connection, access to data bases or other demands.
- Our continuous ink jet systems offer maximum dependability for smooth production processes.
- A compact printing head, protection class IP 65 and all usual interfaces are standard features of our alphaJET systems.
Key Features
- Up to 10 meter/sec
- Quick text changing
- Customized software
- Integration into networks
Technical Specifications
| Line speed max. | 1,300 m/min |
| Line speed at 2.5 mm character width | 600 m/min |
| Max. lines | 4 |
| Print head nozzle size | 50 μm |
| Active ink flow | Yes |
| Print head supply hose length | 4 / 6 m |
| 90°-angled print head | Yes |
| Ink | Standard, high-contrast, special |
| Operation | 10.4” TFT touchscreen display with a comfortable user interface, camera interface, code-M software |
| Safety | IP 65 protection class |
| Dimensions (H x W x L; mm) | Housing: 700 x 320 x 320, 31 kgPrint head: 145 x 40 x 40, 2 kg |
The alphaJET duo delivers the advantages of two printing systems running from the same controller. It is the latest, fully-featured addition to the alphaJET family.
- Two separate ink systems support printing with two different colors or inks.
- Lowest consumption level on the market.
- Pinpoint sharp codes, precise logos, exact texts even with the most complex demands.
- It is very easy to integrate our systems into production lines and network. You are well equipped for the future with our optimal software for camera connection, access to data bases or other demands.
- Our continuous ink jet systems offer maximum dependability for smooth production processes.
Key Features
- 2 print systems
- 1-16 print lines
- Extensive standard functions
- Lowest consumption
Technical Specifications
| Line speed max. | 950 m/min |
| Line speed at 2.5 mm character width | 460 m/min |
| Max. lines | 16 |
| Print head nozzle size | 55 / 70 μm |
| Active ink flow | Yes |
| Print head supply hose length | 4 / 6 m |
| 90°-angled print head | Yes |
| Ink | Standard, high-contrast, special |
| Operation | 10.4” TFT touchscreen display with a comfortable user interface, camera interface, code-M software |
| Safety | IP 65 protection class |
| Dimensions (H x W x L; mm) | Housing: each 510 x 320 x 320, 31 kgPrint head: 145 x 40 x 40, 2 kg |
Flexibility
Our product offers versatile ink options, Smart Start Technology for optimal performance, and state-of-the-art solutions as standard features.
Velocity
Fastest printing, handling, and data processing with Smart Start Technology. Improved design for easier and faster servicing.
Endurance
20,000-hour service life on pump motor (11 years in single-shift). Extended filter change interval. Top TCO calculation due to low prices for consumables, solvent consumption, and maintenance.
Integration
Compact design and smart accessories for easy integration. Interfaces for seamless integration into machinery and networks. Simple integration with wizards and on-screen help.
Key Industries
- Automotive
- Cosmetics and Personal Care
- Food and Beverage
- Machinery and Manufacturing
- Pharmaceutical
Brand
Koenig & Bauer Coding specializes in the development, design, production and marketing of printing, coding and marking technology, the company is a total coding solutions provider and is at the forefront of the latest market developments. Its coding systems many of which are suitable for industrial printing, barcode printing, product marking and product coding can be found in many industrial application fields and are adopted by many global leaders. Excellent product quality and the excellent standard of extensive services make the company a partner which industrial customers can depend on. The entire company has been certified to DIN EN ISO 9001:2000.
