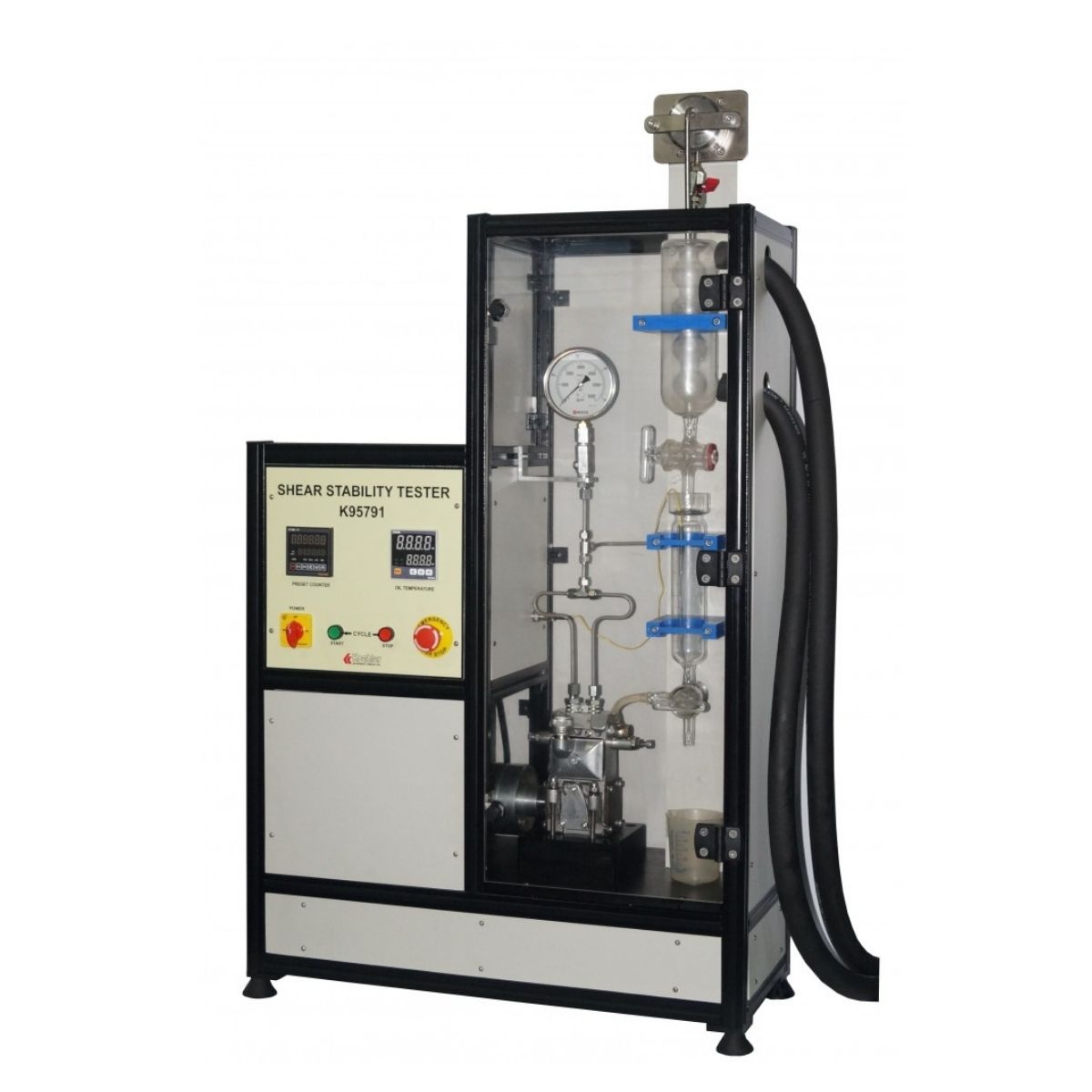

Koehler – Tribology – Shear Stability Tester
Evaluates the shear stability of polymer-containing fluids. The test method measures the percent viscosity loss (and mm2/s for test method D7109) at 100°C of polymer-containing fluids when evaluated by a diesel injector apparatus procedure that uses European diesel injector test equipment.
The viscosity loss reflects polymer degradation due to shear at the nozzle. For D7109: Viscosity loss is evaluated after both 30 and 90 cycles of shearing.
Available Models
Technical Specifications
| Conforms to the specifications of | ASTM D 6278 & ASTM D 7109 |
| Electric Motor | 1.5Kw /925±25 rpm |
| Dead Volume | 20±5ml |
| Injector Breaking Pressure | 175 bar |
| Flow Rate | 170±5ml /min |
| Oil Temperature | Ambient (20 to 25) to 30 to 35 |
| Power | 415V/50Hz/3Ph/1.5HP |
- Model No: K95701
- 415V, 60 Hz, 3 Phase
- Injector Nozzle – Bosch DN 8 S2 Nozzle Holder – Bosch KD 43 SA 53/13 OR 15 Diesel
- Injection Fuel Pump – Bosch PE 2A 90D 300/3S 2266
Technical Specifications
| Conforms to the specifications of | ASTM D 6278 & ASTM D 7109 |
| Electric Motor | 1.5Kw /925±25 rpm |
| Dead Volume | 20±5ml |
| Injector Breaking Pressure | 175 bar |
| Flow Rate | 170±5ml /min |
| Oil Temperature | Ambient (20 to 25) to 30 to 35 |
| Power | 415V/50Hz/3Ph/1.5HP |
- Model No: K95791
- 415V, 50 Hz, 3 Phase
- Injector Nozzle – Bosch DN 8 S2 Nozzle Holder – Bosch KD 43 SA 53/13 OR 15 Diesel
- Injection Fuel Pump – Bosch PE 2A 90D 300/3S 2266
Key Features
Shear Stability Tester
- Conforms to ASTM D 6278 & ASTM D 7109.
Key Industries
- Automotive
- Chemical
- Energy
- Machinery & Manufacturing
- Mining & Minerals
- Oil & Gas
