Koehler – Flash Point Tester – Automatic Pensky Martens Flash Point Analyzer
Koehler Automated Flash Point Analyzers represent a perfect union of next-generation technology with traditional robust quality. The system software runs on an integrated processor PC running the latest Windows operating system.
The 8.4” touch screen interface fully displays all operator parameters and results on a single screen. A three (3) position mechanical lift system for the cover and motor assembly is fully automated and software selectable: Open – Clean – Test for one touch positioning of the test cup. Comes standard with two flash detector systems including a thermocouple and ionization ring detection.
Over 65,000 results of data can be stored on the local hard drive. Integrated Dual Fan System directly cools the test cup and the environment around test cup. Unlimited number of user programs including a quick test that safely tests from ambient, puts the flash point result into the EFP of the official run, and prompts user to refresh the sample, virtually assuring no fires ever occur. In addition, the instrument comes standard with an inert gas fire suppression system.
Key Features
- Conforms to ASTM D93 and related specifications
- Flash point detection by thermocouple and ionization ring
- Electric or Gas ignition: Software selectable, User Friendly Manual Switching
- Flash point operation range between ambient and 405°C
- Integrated Dual Fan System directly cools test cup and surrounding environment
- 8.4” LCD Touch Screen Interface allows for easy viewing and navigation
- Automatic Barometric Pressure Correction
- Fire Suppression System floods instrument with inert gas in the event of a fire
Available Models
Technical Specifications
| Compliance | ASTM D93 Procedure A, B and C; IP 34; ISO 2719; DIN EN 22719; JIS K2265; NF M 07-019 |
|---|---|
| Detection System | Thermocouple and Ionization Ring |
| Stirring Rate | 0 to 300 ± 5 RPM |
| Temperature Range | Ambient – 405°C |
| Power Requirements | 110-240V 50/60Hz |
| Dimensions (cm) | 27.63 x 44.45 x 66.04 |
| Net Weight (kg) | 27.22kg |
| Safety | Fire prevention, detection, and suppression systems standard |
- Conforms to ASTM D93 and related specifications
- Flash Point Detection by Thermocouple and Ionization Ring
- Electric or Gas ignition: Software selectable, User Friendly Manual Switching
- Flash Point operation range between Ambient and 405°C
- Integrated Dual Fan System directly cools test cup and surrounding
- environment
- 8.4” LCD Touch Screen Interface makes for easy viewing and navigation
- Automatic Barometric Pressure Correction
- Fire Suppression System floods instrument with inert gas in the event of a fire
Technical Specifications

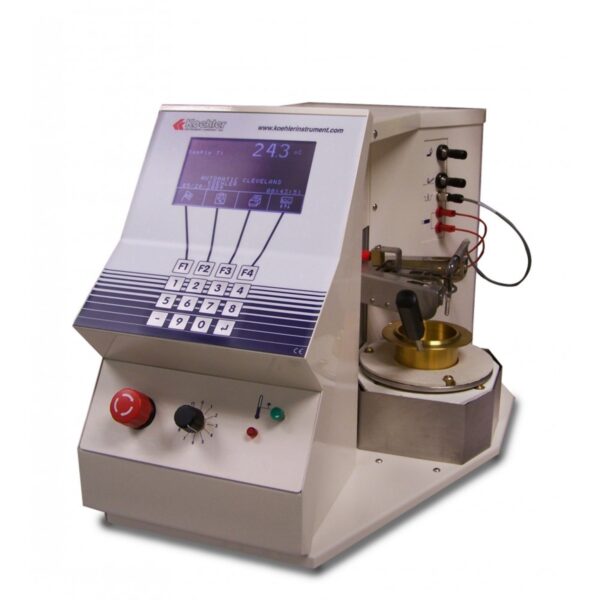

| Compliance | ASTM D92; IP 36, 403; ISO 2592; AFNOR T60-118; EN 22592; DIN 51376 |
|---|---|
| Detection System | Thermocouple and Ionization Ring |
| Power Requirements | 115V 60Hz 1000W 230V 50Hz 1000W |
| Dimensions (cm) | 53.5 x 26 x 50 |
| Net Weight (kg) | 24kg |
| Safety | Fire prevention, detection, and suppression systems standard |
- Conforms to ASTM D92 and related specifications
- Simple automation routine for easy operation
- Flash point operation between ambient and 400°C
- Flash and Fire Point detection by Ionization Ring
- Gas or electric ignition
- Data Storage: 200 results
- Automatic gas cut-off at the end of the test
- Equipped with Emergency Safety Switch
Key Industries
- Chemical
- Education & Academics
- Environmental
- Oil & Gas
