Knauer – K-7400S Semi-Micro Osmometer

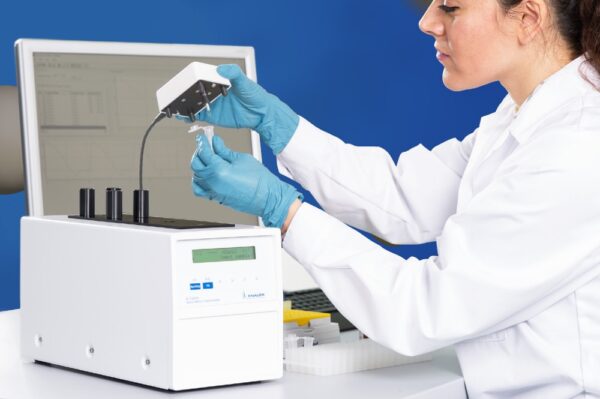

KNAUER freezing point osmometer K-7400S allows the easy and fast determination of the osmolality of various aqueous solutions. Also, the freezing point depression of the samples can be read. The proven technology of freezing point determination in combination with the robust and intelligent design of the device allows reproducible measurements. The instrument is equipped with a peltier cooler and an integrated microprocessor controlling the automated measurement. The freezing point osmometer is a standalone device that optionally can be equipped with a printer. Furthermore, the device can be controlled via the EuroOsmo 7400 software. The software automatically plots the temperature curve for each measurement and calibration and allows saving of the measured values. In addition, the data can optionally be exported into various file formats for archival storage.
The measurement specifications of the KNAUER Semi-Micro Osmometer K-7400S comply with the requirements of the European Pharmacopoeia for osmolality (Ph. Eur. 2.2.35, 10/2021) in the pharmaceutically relevant range of 0-400 mOsmol/kg.
Scope of Delivery

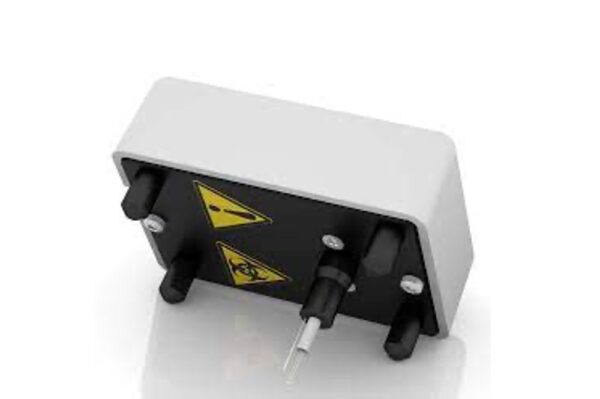

- Freezing Point Osmometer K-7400S incl. measuring head for plastic sample tubes (A0840-2)
- Power cable
- RS-232 connection cable
- 500 Pack of sample tubes(A0272)
- 400 mOsmol/kg calibration solution (A01241-1)
- 850 mOsmol/kg calibration solution (A01250)
- Pack of lint-free cleaning tissue (A02330)
Key Features
- Made in Germany
- 59 years experience
- Fast measurements
Technical Specifications
| Sample volume | 50 – 150 µl |
| Osmolality range | 0 – 2000 mOsmol/kg |
|---|---|
| Resolution | osmolality: integer value without decimal part, e.g. 850 mOsmol temperature: value with three digits, e.g. -1.576 °C |
| Test time | ~ 2 min |
| Precision | SD ≤ 4 mOsmol/kg [0 — 400 mOsmol/kg] RSD ≤ 1 % [400 — 2000 mOsmol/kg] |
| Linearity | ± 1 % [0 -1500 mOsmol/kg] ± 1.5 % [0 – 2000 mOsmol/kg] |
| Calibration | Two-point calibration (0 mOsmol/kg and one freely selectable osmolality) optional: Three-point calibration (0 Osmol/kg and two freely selectable osmolalities) |
| Power supply | 100 – 240 V, 50 – 60 Hz, 70 W |
| Dimensions (W x H x D) | 160 x 182 x 340 mm |
| Weight | 5.3 kg |
| Ambient conditions | Temperature range: 10–35 °C Rel. humidity: 20–80 % (non-condensing) |
| Interfaces | RS-232 port |
| Control | Keypad (LED display, 2 rows with 24 characters) optional: EuroOsmo7400 Software |
How to Control The K-7400S Osmometer
Brand
KNAUER manufactures high-end scientific instruments for research, routine analysis, quality assurance, and other applications. Supported technologies include liquid chromatography, precise handling and pumping of liquids up to high pressures, as well as flow-through detection of dissolved substances. Customizable products and solutions are one of our strengths. Made in Germany.
