Knauer – Impingement Jets Mixing Skids for Production of Nanoparticles
The Impingement Jets Mixing (IJM) Large Production Scale Units for high flow production of nanoparticles (LNP, microemulsions, etc.) can be configured with up to eight parallel mixing units depending on the customer requirements. Each unit consists of two pumps to deliver lipid and API streams, two flowmeters for flow control, and one jet mixer.
Depending on the configuration, the predilution of the API and quenching can be performed for the combined flow of all units in one process step outside the Impingement Jets Mixing (IJM) Production Scale Unit.

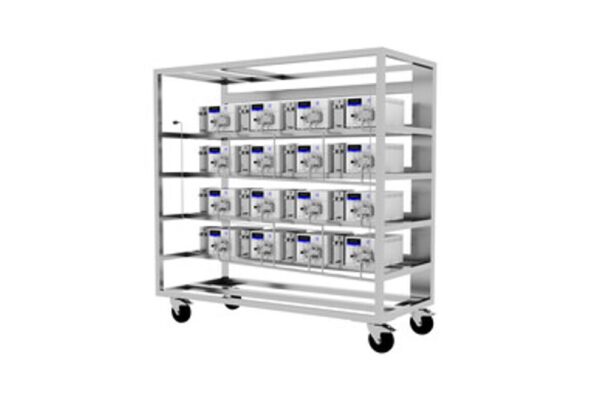

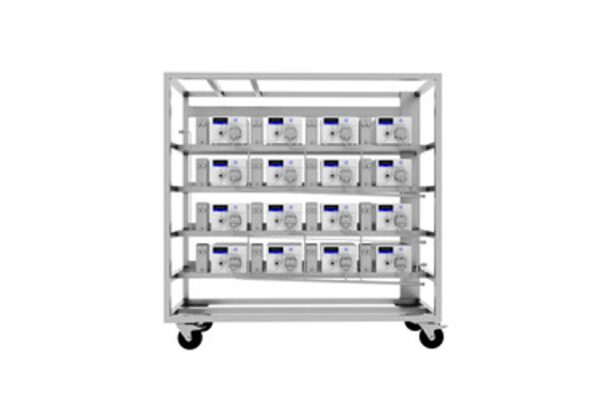

The number of parallel units depends on the application. Also, the number of pumps, flowmeters, jets mixers, and pipes can be adapted to the required conditions and scale. All skids are built in a stainless steel frame on casters and are suitable for CIP cleaning procedures in pharmaceutical production.
The Impingement Jets Mixing (IJM) Large Production Scale Unit for high flow production of nanoparticles (LNP, microemulsions, etc.) consisting of:
- up to 16 KNAUER high-pressure dosing pumps 80P
- up to 16 Coriolis flow meters
- up to 8 KNAUER IJM mixers
- Inlet manifolds for lipid/ethanol mixture and mRNA/buffer mixture
- Outlet manifold for LNP solution
- Back-seal washing system
- The frame (stainless steel system 1.4301)
- Installation & familiarization by KNAUER
In addition, we offer for our customers:
- Customized Technical documentation which is order- and article-related
- Customer Service before, during, and after the setup
- Capillary customization and labeling
- FAT (Factory Acceptance Test at KNAUER Berlin)
- SAT (Site Acceptance Test at customer site)
Key Features
- Made in Germany
- Certified quality management
- Customized solutions
- Dedicated customer support
Technical Specifications
| Number of impingement jets mixers | up to 8 |
| Number of pumps | up to 16 |
|---|---|
| Number of flow meter | up to 16 |
| Process connection inlet | Sanitary Clamp Connector (2 Inlets) |
| Process connection outlet | Sanitary Clamp Connector (1 Outlet) |
| Volumetric flow rate | depending on configuration |
| Maximum operation pressure | 50-70 bar |
| Liquid temperature range | 4−60 °C (39.2−140 °F) |
| Wetted materials | stainless steel, PEEK, Titanium, FFKM, PTFE, GFP (graphite fiber reinforced PTFE), aluminum oxide (Al2O3), ruby, sapphire |
| Software | not included, necessary interfaces for the integration into PLC available |
| Interfaces | Pump: LAN, RS-232, pin header connectors; Flow meter: RS-232 + Industrial Interfaces; Valve drive: LAN |
| Power supply | Pump: 100–240 V, 50–60 Hz; Flow meter: +15…24 V DC, |
| Maximum power consumption | Values per device Pump: maximum 320 W; Flow meter: 3 W |
| Ambient conditions | Temperature range: 4–40 °C; 39.2–104 °F; below 90 % humidity (non condensing) |
| Dimensions / Weight / API-predilution and quenching | depending on configuration |
| GMP-ready documentation | YES |
| Factory acceptance test | YES |
| Site acceptance test | YES |
| Purchase order lead time | minimum 5 months, depending on customer requirements |
| Disclaimer | Depending on the process the end user must consider the legal situation of patents and intellectual property. KNAUER is designing the customized hardware solution on customers request |
Lipid Nanoparticle (LNP) Production for mRNA-based Vaccines
