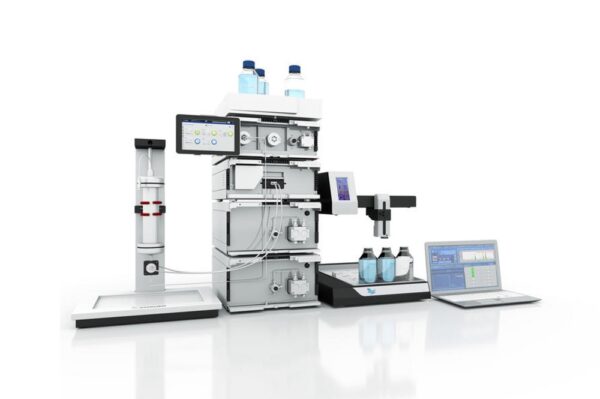

Knauer – Azura Preparative HPLC System
The AZURA Prep. 100/250 gradient system is designed for complex purification of small molecules in pilot scale. It is designed and optimized for all Prep.-LC applications in RP/NP mode, ion exchange, hydrophobic interaction and size exclusion chromatography. All system modules can be freely exchanged, and further modules can be added optionally, to give more flexibility.
Available in :
Discover the Lab Prep LC system, the ultimate solution for your preparative separations! With its customizable and flexible components, you can create an LC system that meets your specific needs
Key Features
- Flow rate: 0.01–100 ml/min; 1 – 80 ml/min (recommended)
- Flow rate: 0.01–250 ml/min; 5 – 160 ml/min (recommended)
- Maximum system pressure: 400 bar (40MPa) / 200 bar (20.0 MPa)
- Injection valve for sample injection via sample loop or sample pump
- Sample pump, 0,1 – 50 ml/min max. 150 bar (15.0 MPa)
- Variable Multi-wavelength UV detector (190–700 nm)
- Fraction collector for fractionation
- Rack for Fraction collector for 15 or 50 ml tubes
- Compatible with columns from all vendors
- Intuitive PurityChrom® software
- System suitable for cold room usage
- 1/16“ Tubing on the high-pressure site
Technical Specifications
| System type | Pilot |
| Gradient | hpg |
|---|---|
| Max. flow rate | 250 ml/min |
| Maximum delivery pressure [MPa] | 40 MPa |
| Maximum delivery pressure [psi] | 5800 psi |
| Maximum delivery pressure [bar] | 400 bar |
| Typical column dimension | 30 x 250 mm (5 µm) / 50 x 250 mm (7 µm) |
| Detector | Variable multiwavelength detection UV/VIS |
| Injection | Sample- pump, automatic injection |
| Fractionation | Foxy R1 |
| Software | PurityChrom |
