Idex – Degassers – Debubblers
Debubblers utilize a porous Poridex membrane to rapidly clear bubblers from locations where bubble introduction cannot be avoided. When Poridex is used as a degassing transfer line tail it can also remove dissolved gases in locations where a standard degassing chamber won’t fit.
Due to the porous nature of Poridex it can only be used with water based solutions without detergents or emulsifiers.
Key Features
Utilizes Poridex membrane to swiftly eliminate bubbles from water-based solutions.
Available Models
Technical Specifications
| Bubble Removal | 20 cc/min air removed from water at 10 ml /min |
|---|---|
| Membrane Type | Poridex |
| Vacuum Connection | Barb Fitting for 1/8 inch (3mm) ID Elastomeric tubing |
| Liquid Connections | Inlet: UNF ¼-28 threaded flat-bottom port Outlet: ¼-28 |
| Wetted Materials | Poridex, Polyolefine, FEP, ETFE, Ultem® |
| Fluid Compatibility | Not compatible with solutions |
| Vacuum Performance | A vacuum source (minimum 16 kPa absolute) suc |
IDEX Bubble traps capture and rapidly clear bubbles to ensure consistent and reliable system fluids free of problem causing bubbles. Bubble traps are ideal in location where user introduced bubbles are possible. Do to the porous nature of Poridex it can only be used with water based solutions without detergents or emulsifiers.
- Active Debubbler 2.5mL, without Degassing Tail, length 0.75 inches, height 3.6 inches, width 0.5 inches
- Active Debubbler 5.0 mL, without Degassing Tail, length 0.75 inches, height 5.6 inches, width 0.5 inches
Technical Specifications
| Membrane Type | Poridex |
|---|---|
| Vacuum Connection | Barb Fitting for 1/8 inch (3mm) ID Elastomeric tubing |
| Liquid Connections | Inlet: UNF ¼-28 threaded flat-bottom port Outlet: ¼-28 |
| Maximum Temperature ºC | 40 |
| Wetted Materials | Poridex, Polyolefine, FEP, ETFE, Ultem® |
| Vacuum Performance | A vacuum source (minimum 16 kPa absolute) suc |
| Fluid Compatibility | Not compatible with solutions |
IDEX Bubble traps capture and rapidly clear bubbles to ensure consistent and reliable system fluids free of problem causing bubbles. Bubble traps are ideal in location where user introduced bubbles are possible. The transfer line degassing tail removes dissolved solids to eliminate bubbles from caused by outgassing later in the fluid path. Do to the porous nature of Poridex it can only be used with water based solutions without detergents or emulsifiers.
- Debubbler/Degasser 2.5 mL, with Degassing Tail, length 0.75 inches, height 5.6 inches, width 0.5 inches, degassing performance 45% O2 at 2ml/min
- Debubbler Degasser 5.0 mL, with Degassing Tail, length 0.75 inches, height 4 inches, width 2.05 inches, degassing performance 55% O2 at 1ml/min
Technical Specifications
| Bubble Removal | 20 cc/min air removed from water at 10 ml /min |
|---|---|
| Membrane Type | Poridex |
| Vacuum Connection | Barb Fitting for 1/8 inch (3mm) ID Elastomeric tubing |
| Liquid Connections | Inlet: UNF ¼-28 threaded flat-bottom port Outlet: ¼-28 |
| Internal Volume mL | 2.5 |
| Wetted Materials | Poridex, Polyolefine, FEP, ETFE, Ultem® |
| Fluid Compatibility | Not compatible with solutions |
Where space is limited the Poridex Transfer Line Degasser allows fluid degassing in a standard line to avoid bubbles cause by outgassing downstream in the fluid path to improve system reliability. Due to the porous nature of Poridex it can only be used with water based solutions without detergents or emulsifiers.

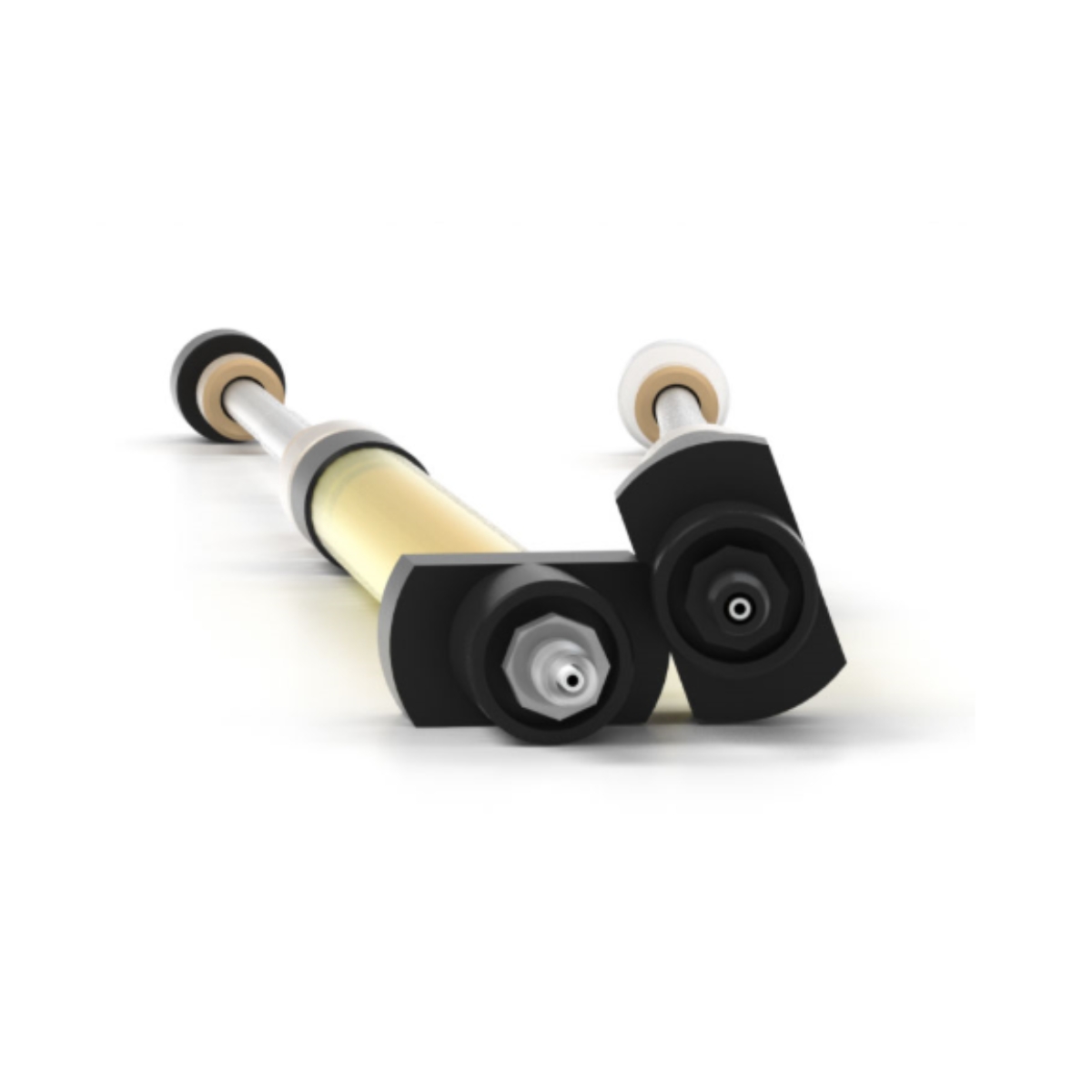

Our Active Debubbler rapidly removes bubbles from the fluid stream of low pressure systems such as diagnostic instrumentation. Removing system bubbles improves instrument precision and reliability. Unlike passive bubble traps where bubble removal is dependent on backpressure, the Active Debubbler can be installed before or after a pump and provides consistent debubbling regardless of the system conditions. Choose a 2.5 or 5.0 mL volume bubble trap depending on your syringe volume.
- Active Debubbler 2.5mL, without Degassing Tail, height 3.6 inches, width 0.5 inches, length 0.75 inches
