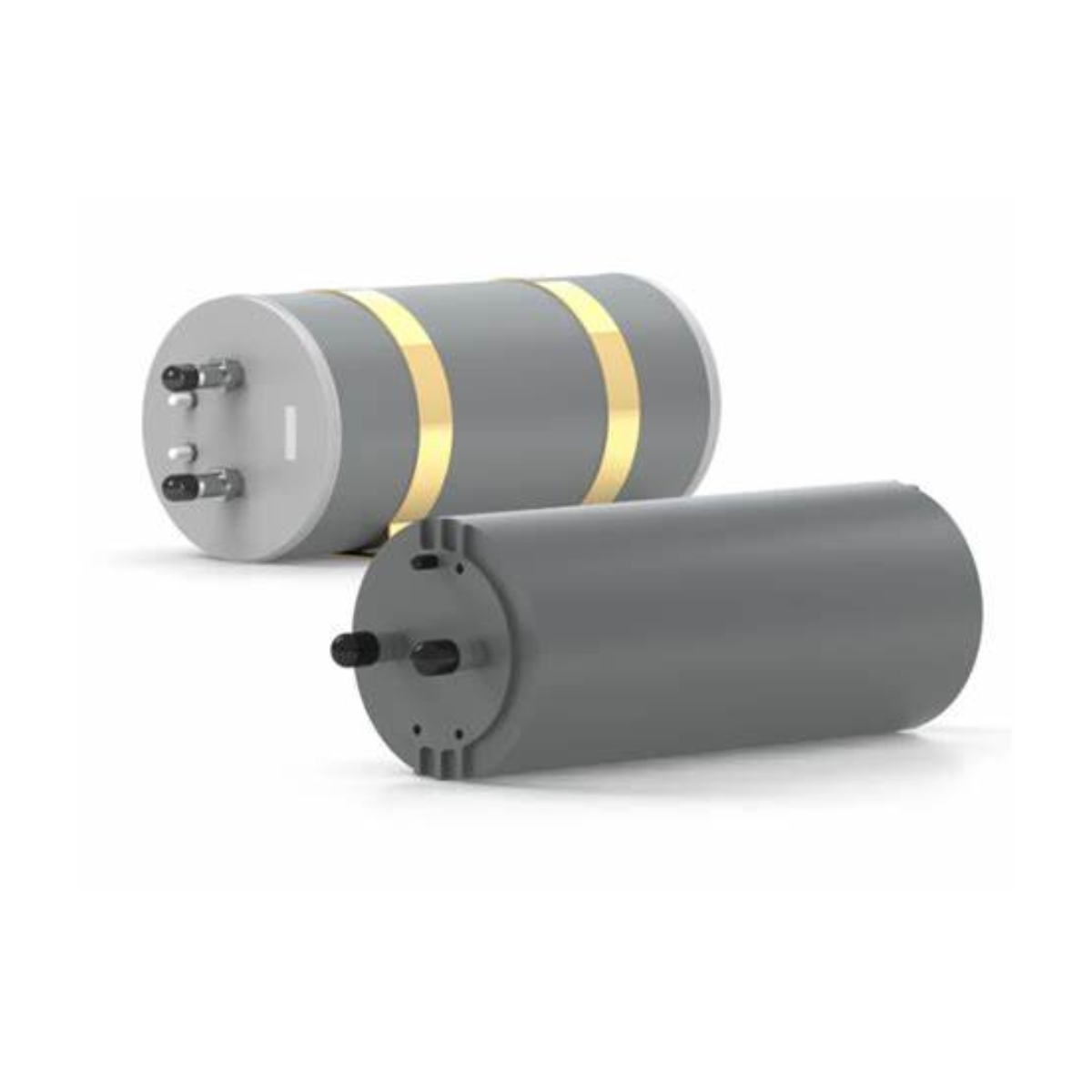

Idex – Degassers – Aqueous Degassing
The Aqueous degassing chambers offer the highest flow rates and efficiencies available. The silicone based degassing membrane is completely non-porous providing long life that will not clog over time with excessive amounts of water coming through the vacuum side like with porous based high flow products. Couple the degassing chamber with a vacuum control system to maintain stable vacuum levels for optimal degassing efficiency.
Available Models
Technical Specifications
| Length (in) | 10 |
|---|---|
| Pressure Rating Max (psi) | 14.5 |
| Tubing ID (in) | MultiLumen |
| Number of Channels | 1 |
| Chemical Compatibility | Deionized water, pure water neutral buffer solvent |
| Membrane Type | Silicone |
| Internal Volume mL | 200 |
| Wetted Materials | Silicone, PVC, NBR |
| Fluid Compatibility | Deionized water, pure water neutral buffer solvent |
| Maximum Temperature ºC | 45 |
| Vacuum Connection | Barb connector for 3mm ID elastomeric tubing |
| Degassing Performance | >60% O2 Removal at 500mL/min |
| Liquid Connections | 8mm Barb |
| Max Flow Rate (mL/min) | 1000 |
| Width (in) | 4.53 |
| Height (in) | 4.53 |
NS600 High Volume Degassing Chamber is Non-porous silicon membrane tubing makes the NS600 degas module the most robust, high-flow, low-pressure drop degasser on the market.
Technical Specifications
| Length (in) | 9.9 |
|---|---|
| Pressure Rating Max (psi) | 14.5 |
| Tubing ID (in) | MultiLumen |
| Number of Channels | 1 |
| Chemical Compatibility | Deionized water, pure water neutral buffer solvent |
| Membrane Type | Silicone |
| Internal Volume mL | 90 |
| Wetted Materials | Silicone, PVC, NBR |
| Fluid Compatibility | Deionized water, pure water neutral buffer solvent |
| Maximum Temperature ºC | 45 |
| Vacuum Connection | Barb connector for 3mm ID elastomeric tubing |
| Degassing Performance | >60% O2 Removal at 300mL/min |
| Liquid Connections | 8mm Barb |
| Max Flow Rate (mL/min) | 500 |
| Width (in) | 3.54 |
| Height (in) | 3.54 |
The reliable NS250 degas module and 767AY vacuum system degasses liquids in highthroughput applications to prevent bubble formation and improve dispense precision.
Technical Specifications
| Length (in) | 3.75 |
|---|---|
| Pressure Rating Max (psi) | 14.5 |
| Tubing ID (in) | MultiLumen |
| Number of Channels | 1 |
| Recommended Flow Rate (ml/min) | 300 |
| Chemical Compatibility | Deionized water, pure water neutral buffer solvent |
| Membrane Type | Silicone |
| Internal Volume mL | 60 |
| Wetted Materials | Silicone, PVC, NBR |
| Fluid Compatibility | Deionized water, pure water neutral buffer solvent |
| Maximum Temperature ºC | 45 |
| Vacuum Connection | Barb connector for 3mm ID elastomeric tubing |
| Degassing Performance | >60% O2 Removal at 300mL/min |
| Liquid Connections | 8mm Barb |
| Max Flow Rate (mL/min) | 500 |
| Width (in) | 3.54 |
| Height (in) | 3.54 |
Our ERC-300w Aqueous High Flow Degasser is designed to provide high flow degassing in the smallest available footprint. Designed for diagnostic equipment this system eliminates system bubbles before they occur improving system precision and avoiding bubble related errors.
Key Industries
- Biopharmaceutical and Biotechnology
- Chemical
- Cosmetics & Personal Care
- Education & Academics
- Food & Beverage
- Medical
- Oil & Gas
- Pharmaceutical
- Powders & Pigments / Coating
