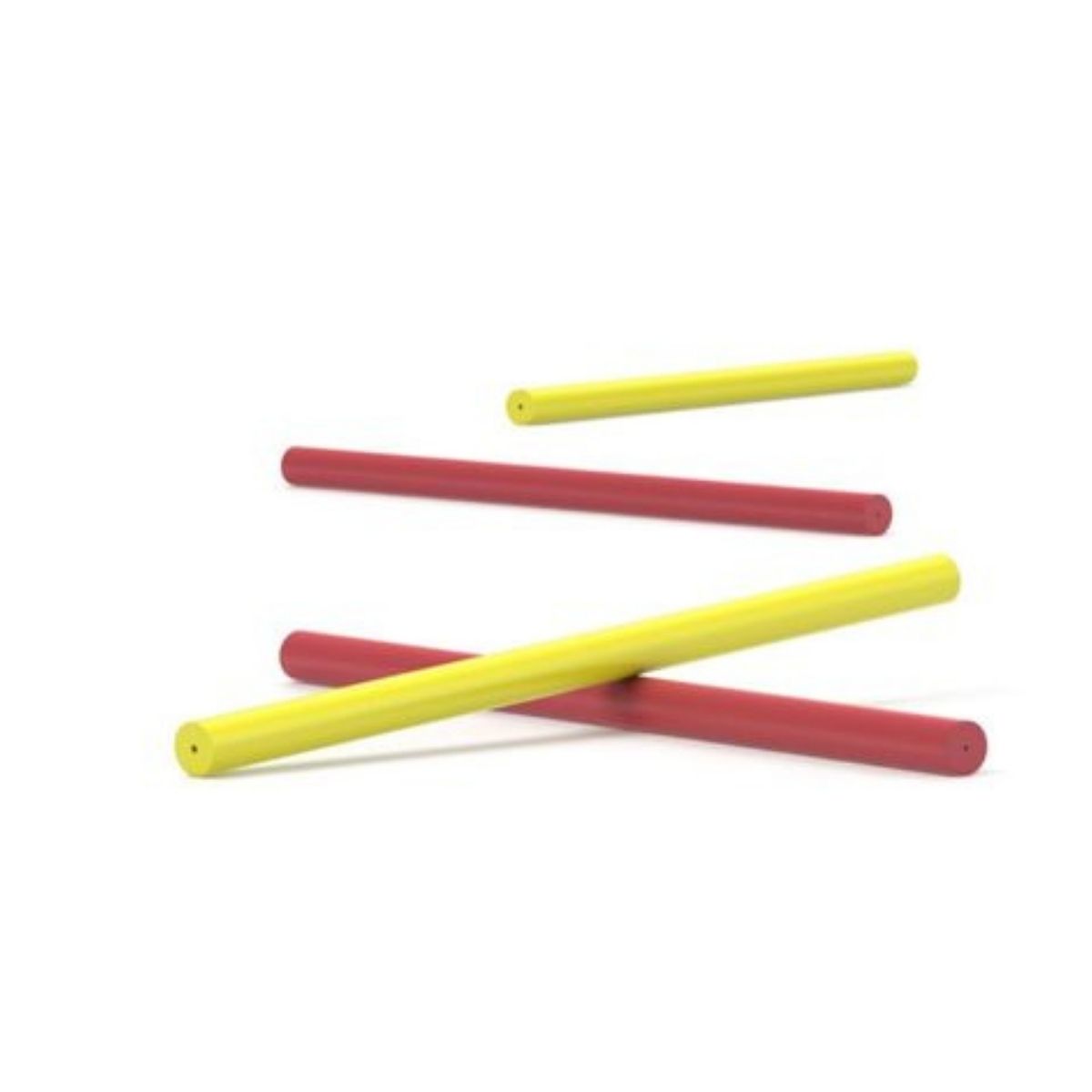

Idex – Fluidic Tubing Sleeves – 1/16 Inches Outer Diameter PEEK Tubing Sleeves
Like the NanoTight™ FEP Sleeves, these PEEK Tubing Sleeves are designed to be used with 1/16 inches outer diameter, 10-32 threaded fittings to adapt capillary tubing to standard coned ports. They are designed to withstand higher pressure than the FEP sleeves. Made of PEEK polymer, these 1.3 inches long sleeves can be used up to 125 °C. These sleeves require a wrench tightened nut to achieve proper sealing. We recommend the F-140 Two-Piece Fingertight Fitting, which includes a PEEK ferrule or the hex-head SealTight™ fittings. Many researchers also use a stainless steel nut and ferrule with these sleeves, such as our U-400 and U-401.
Key Features
Available products of 1/16 inches outer diameter PEEK Tubing Sleeves
This PEEK Tubing Sleeve designed specifically for connecting capillary tubing to standard 10-32 ports. Manufactured from biocompatible PEEK it offers excellent chemical resistance. It does require the use of a wrench tightened stainless steel nuts.
List of available 1/16 inches outer diameter PEEK Tubing Sleeves
Technical Specifications
| Tubing sleeve outer diameter | Tubing sleeve inner diameter | For tubing outer diameter | Length | Pressure Rating Max | Colour |
| 1/16 inches | 0.005 inches | 70 µm to 110 µm | 1.3 inches | 6000 psi/414 bar | Red |
| 1/16 inches | 0.007 inches | 126 µm to 165 µm | 1.3 inches | 6000 psi/414 bar | Yellow |
| 1/16 inches | 0.009 inches | 165 µm to 175 µm | 1.3 inches | 6000 psi/414 bar | Yellow |
| 1/16 inches | 0.011 inches | 225 µm to 265 µm | 1.3 inches | 6000 psi/414 bar | Yellow |
| 1/16 inches | 0.013 inches | 275 µm to 315 µm | 1.3 inches | 6000 psi/414 bar | Natural |
| 1/16 inches | 0.016 inches | 350 µm to 390 µm | 1.3 inches | 6000 psi/414 bar | Orange |
| 1/16 inches | 0.022 inches | 505 µm to 545 µm | 1.3 inches | 6000 psi/414 bar | Natural |
| 1/16 inches | 0.027 inches | 630 µm to 670 µm | 1.3 inches | 6000 psi/414 bar | Yellow |
| 1/16 inches | 0.031 inches | 730 µm to 770 µm | 1.3 inches | 6000 psi/414 bar | Natural |
| 1/16 inches | 0.034 inches | 785 µm to 825 µm | 1.3 inches | 6000 psi/414 bar | Blue |
