Ibidi – Labware – µ-Plate Angiogenesis 96 Well
A µ-Plate with 96 wells for high-throughput 3D cell culture and tube formation assays
Available in :

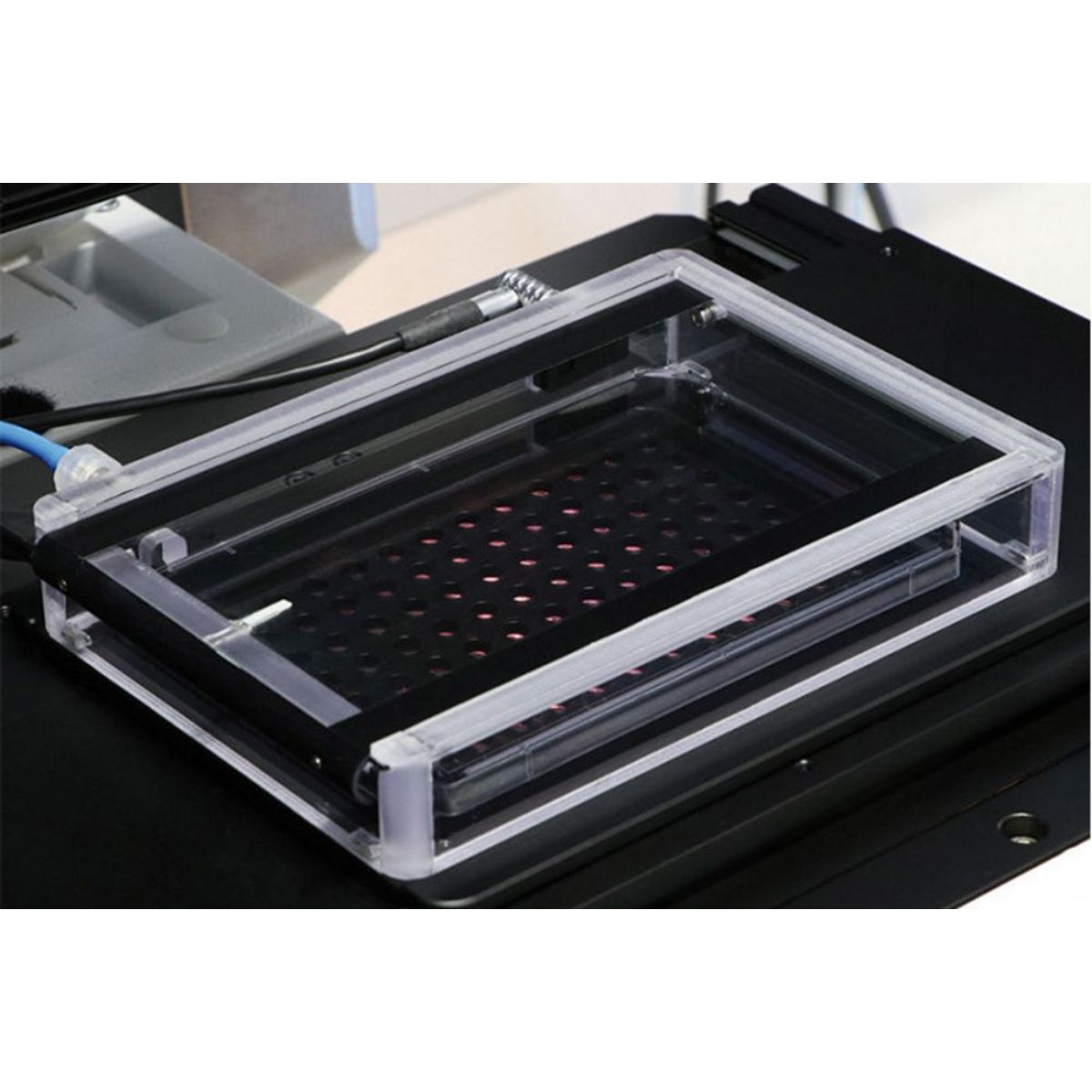

The ibidi µ-Plate Angiogenesis 96 Well is a specialized microplate designed for high-throughput angiogenesis and 3D cell culture assays. Its innovative design ensures efficient experiments with minimal gel usage and enhanced imaging capabilities.
Key Features
- A µ-Plate with 96 wells to investigate angiogenesis in high throughput tube formation assays
- A high throughput screening plate with full ANSI/SLAS (SBS) and robotics compatibility
- Brilliant cell visualization without gel meniscus formation
- Cost-effective high throughput experiments, requiring only 10 µl of gel per well
- Similar to µ-Slide Angiogenesis but with 96 wells in a multiwell plate format
Applications
- High throughput tube formation assays
- 3D cell culture
- Immunofluorescence staining
- Sprouting assays
- Live cell imaging of attached cells
Technical Specifications
| Number of wells | 96 | |
| Length / width | 127.7 / 85.5 mm | |
|---|---|---|
| Height with / without lid | 16.5 / 14.4 mm | |
| Well-to-well distance | 9.0 mm | |
| Volume inner wells | 10 µl | |
| Ø Inner wells | 4 mm | |
| Depth inner well | 0.8 mm | |
| Volume upper wells | 70 µl | |
| Ø Upper wells | 5 mm | |
| Growth area per inner well | 0.125 cm² | |
| Coating area per inner well | 0.23 cm² | |
| Well clearance | 0.82 mm | |
| Inner well flatness | ± 5 µm | |
| Whole plate flatness | ± 25 µm | |
| Bottom: ibidi Polymer Coverslip | ||
