  • Instructions ยต-Slide Spheroid Perfusion


A Perfusable Channel ยต-Slide With 3 x 7 Wells for Long-Term Spheroid Cultivation and High-End Microscopy

Product outline:

  • Ideal for the long-term cultivation and perfusion of 3D spheroids or organoids on the Bioinert surface
  • Flexible preparation for perfusion: spheroids can be transferred or created directly in the wells
  • Imaging chamber with excellent optical quality for high-resolution microscopy

Applications

  • Cultivation and high-resolution microscopy of three-dimensional cell aggregates (e.g., spheroids and organoids)
  • For use with the ibidi Pump System or any other pump device with Luer connectors
  • Perfusion of spheroids for fresh medium supply during long-term cultivation and access to spheroid growth kinetics
  • Spheroid generation directly in the wells
  • Spheroid retrieval for downstream processing (e.g., immunofluorescence, histology, and biochemical assays)
  • Perfusion of cell monolayers (adherent cells), suspension cells, or co-cultures
  • Organ-on-a-chip setups with up- and downstream metabolization
  • Live cell imagingย and microscopy of 3D cell aggregates
  • Immunofluorescence stainingย and high-resolution fluorescence microscopy of living and fixed cells and cell aggregates

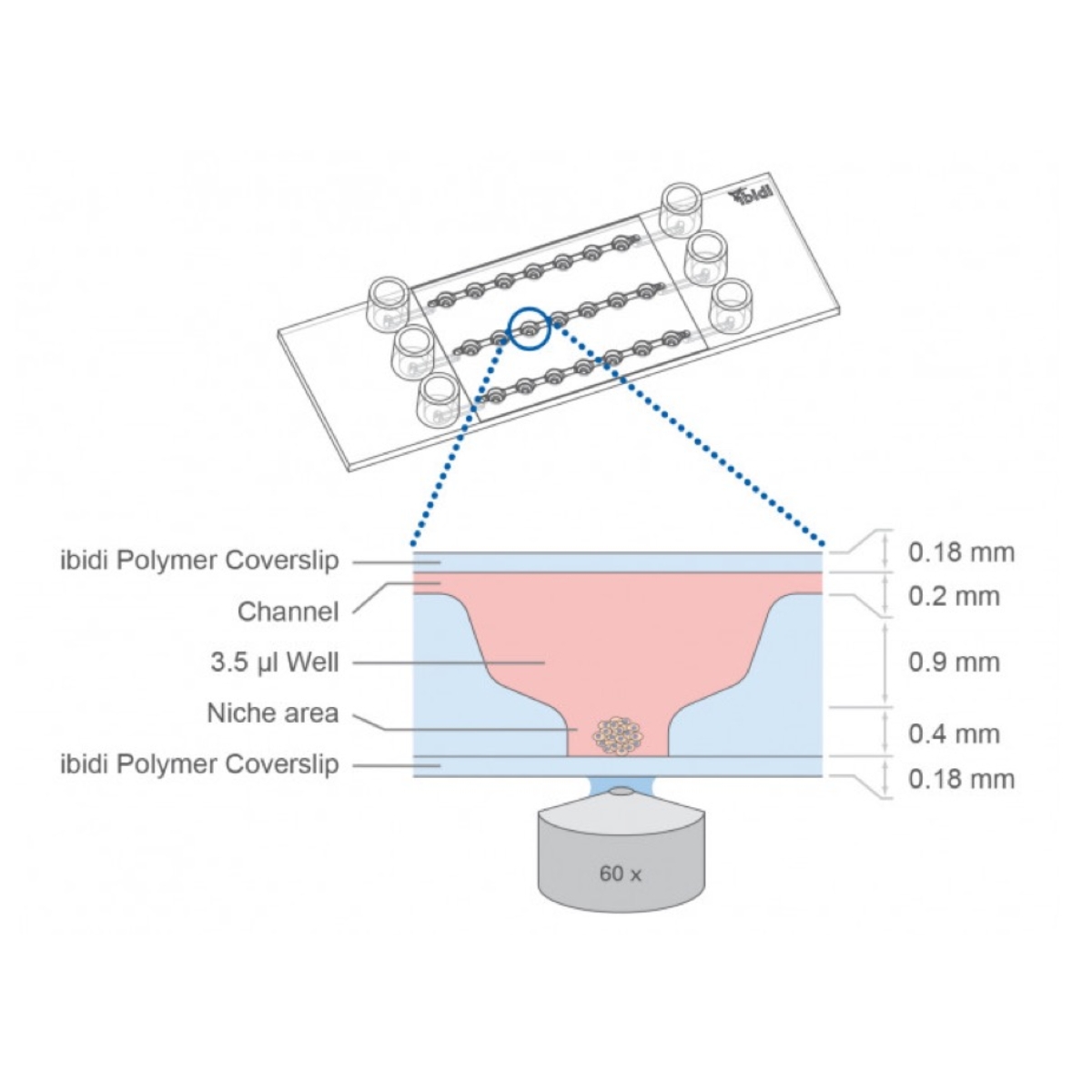

Technical Specifications

Outer dimensions (w x l)25.5 x 75.5 mmยฒ
Number of channels3
Number of wells3 x 7
Volume per well3.5 ฮผl
Well height (bottom niche)0.4 mm
Well height (total)1.3 mm
Well diameter (bottom)0.8 mm
Channel volume (total)45 ยตl
Channel height0.2 mm
Channel width1.0 mm
Growth area per well0.5 mmยฒ
Coating area using 3.5 ยตl9.7 mmยฒ
AdaptersFemale Luer
Volume per reservoir60 ยตl

Slide Comparison

ยต-Slide Spheroid Perfusionยต-Slide I Luer 3Dยต-Slide I Luer
Application
Perfusion of samplesYesYesYes
Defined shear stress on cell monolayersNoYes, on gel matrixYes, on coverslip
Gel matrices for 3DNoYesNo
Cell type
Spheroids/organoidsYes, free floating in wellYes, inside gel matrix onlyNo
Suspension cellsYes, free floating in wellYes, inside gel matrix onlyYes, in flow suspension only
Adherent cellsYes, on coverslipYes, inside or on gel matrixYes, on coverslip

Brand

Ibidi

ibidi is a leading supplier for functional cell-based assays and advanced products for cellular microscopy. ibidi is located in Grรคfelfing, Germany, close to Munich, and the US headquarters, ibidi USA Inc., is located in Fitchburg, Wisconsin.
