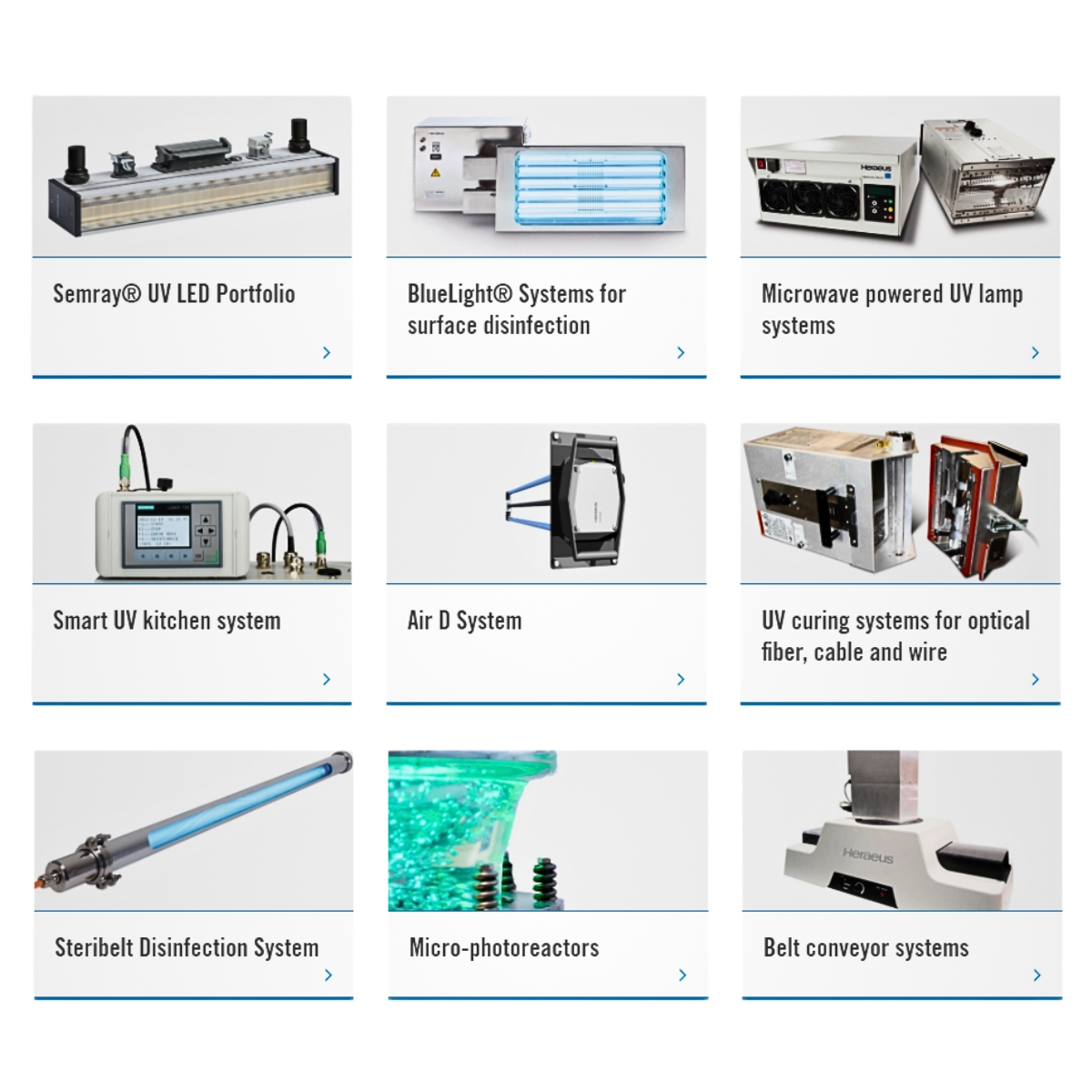

Heraeus – UV Systems
Heraeus Noblelight invented microwave-powered UV curing system technology. Compared to arc lamp curing technology, it offers significant improvements in production speeds, process consistency, operating lifetimes, and reduced heat onto the substrate. Heraeus Noblelight’s easy-to-service modular design provides process flexibility with lower cost of ownership.
Technical Specification
Machine Quality Management Series
| OvenRIDER™ NL 2+ | SelectiveRIDER™ | WaveRIDER™ NL 2 | Fluxometer™ | OvenCHECKER™ | Reflow Validator™ | |
| Length | 266.7mm (10.5”) x 241.3mm (9.5”) x 47.6mm (1.88”) | 300 mm [11.8 in.] | 305 mm [12in.] | 313 mm [12.32 in.] | 313 mm [12.32 in.] | 150 mm [5.9 in.] |
| Height | 31.75 mm [1.25 in] 20.55 mm [0.81in] above conveyor chain | 35.4 mm [1.39 in.] | 33 mm [1.3in.] | 28 mm [1.08 in.] | 2.54cm (1.0in.) 17.8mm (0.7”) above conveyor chain 7.6mm (0.3”) below conveyor chain | 8 mm (0.314 in.) |
| Width | Standard: 167 mm [6.6 in], 305 mm [12 in], 458 mm [18in] Custom: >167 mm [6.6 in] | 200 mm [7.87 in.] | Standard: 229mm [9”], 305 mm [12”], 381mm [15’], 458 mm [18”] Custom: >145mm [5.7”] | Standard: 229 mm [9”], 305 mm [12”], 381 [15”], 458 mm [18”] Custom: Contact ECD | 30.5cm (12in.) | 250 mm (9.8 in.) |
| Weight | 6.6”: 1.74 kg [3.84 lb], 12”: 2.81 kg [6.19 lb], 18”: 3.54 kg [7.8 lb] | 1.72 kg [3.78 lbs] | 9”: 1.36 kg [3.0 lbs] 12”: 1.72 kg [3.8 lbs] 15”: 1.86 kg [4.1 lbs] 18”: 2.61 kg [5.75 lbs] | – | 1656 grams (3.65 lbs.) | 200 grams (0.44 Ibs.) |
| Max. Operational Temperature | 300°C [572°F] | 300°C [572°F] | 300°C [572°F] | – | 300°C [572°F] | 300°C [572°F] |
| For further details, please refer to enclosed datasheet. | ||||||
Heraeus Flash Lamps for Printed Electronics
Key Industries
- Semiconductor, Solar & Electronics
Brand
The company’s roots go back to a family pharmacy started in 1660. Today, the Heraeus group includes businesses in the environmental, electronics, health and industrial applications sectors. Customers benefit from innovative technologies and solutions based on broad materials expertise and technological leadership.
