Helmut Fischer – Fischerscope X-ray XDL and XDLM
Your Entry to the World of Automated XRF-Measurement
The FISCHERSCOPE® X-RAY XDL® and XDLM® X-ray fluorescence (XRF) spectrometers are closely related to the XUL series. All the main components – such as the detector, X-ray tubes and filter combinations – are identical. But there is a significant difference: The XDL and XDLM devices measure from top to bottom. And that means convenient XRF analysis of non-flat samples – complex shapes are no longer a problem!
Key Features
XDL and XDLM
- Energy dispersive X-ray fluorescence (XRF) spectrometer for automated material analysis and non-destructive measurement of coating thickness according to ISO 3497 and ASTM B 568
- Smallest measuring spot XDLM: approx. 0.1 mm; smallest measuring spot XDL: approx. 0.2 mm
- Tungsten X-ray tube or tungsten microfocus tube (XDLM) as an x-ray source
- Proven proportional counter tube detectors for fast measurement
- Fixed or changeable collimators
- Fixed or automatically exchangeable primary filters
- Available with either a manual or a programmable XY stage
- Slotted housing for measuring on large, printed circuit boards
- Video camera for easy fixing of the measurement location
- Patented by Fischer: the DCM method for simple and fast adjustment of the measuring distance
- Certified full-protection devices

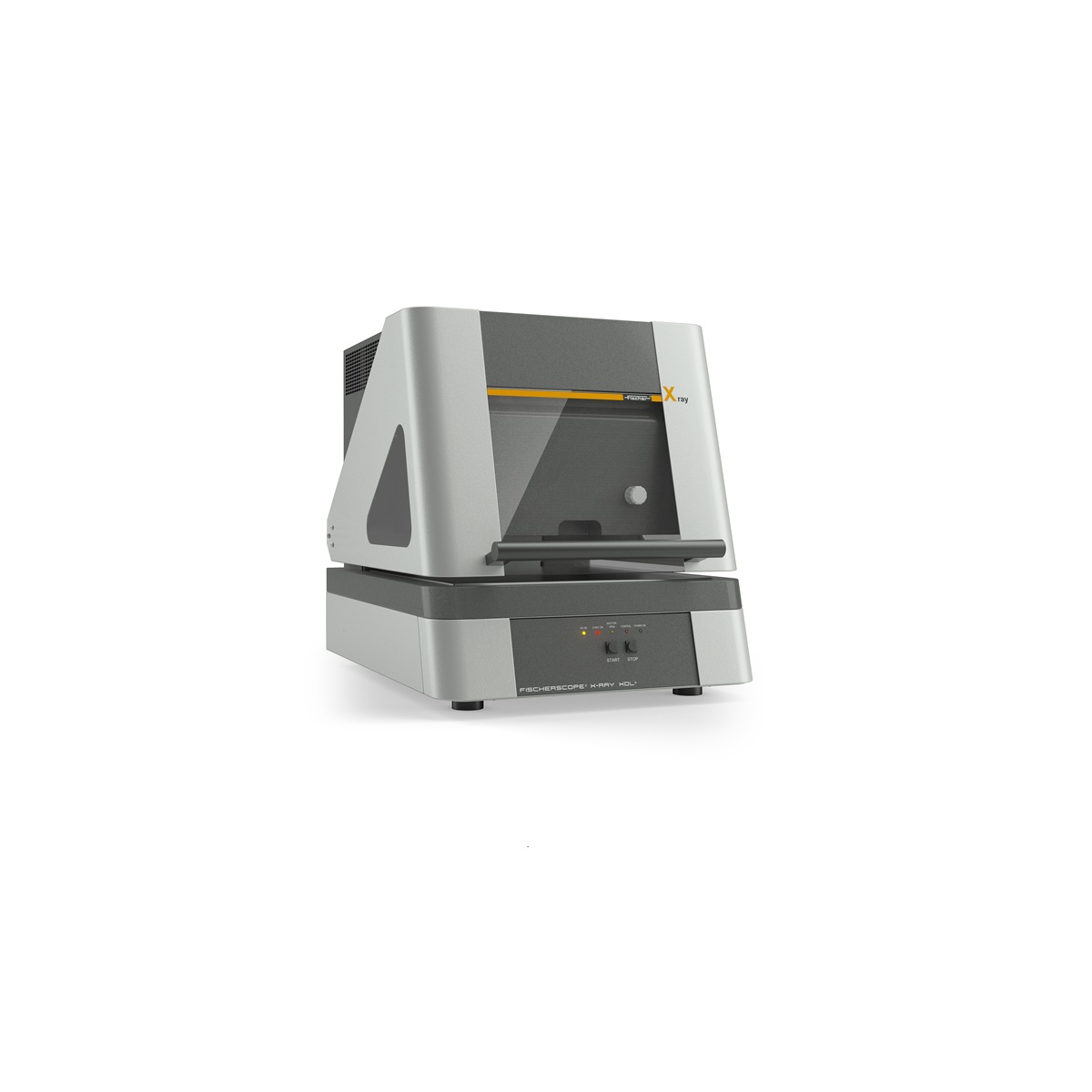

With DCM: Easy Measurement Of Complex Shaped Samples | X-RAY XDL 230 | Fischer
The FISCHERSCOPE® X-RAY XDL® 230 is an X-ray fluorescence measuring instrument for simple, fast coating thickness measurement. Perfectly suited for the measurement of single or multiple coatings.

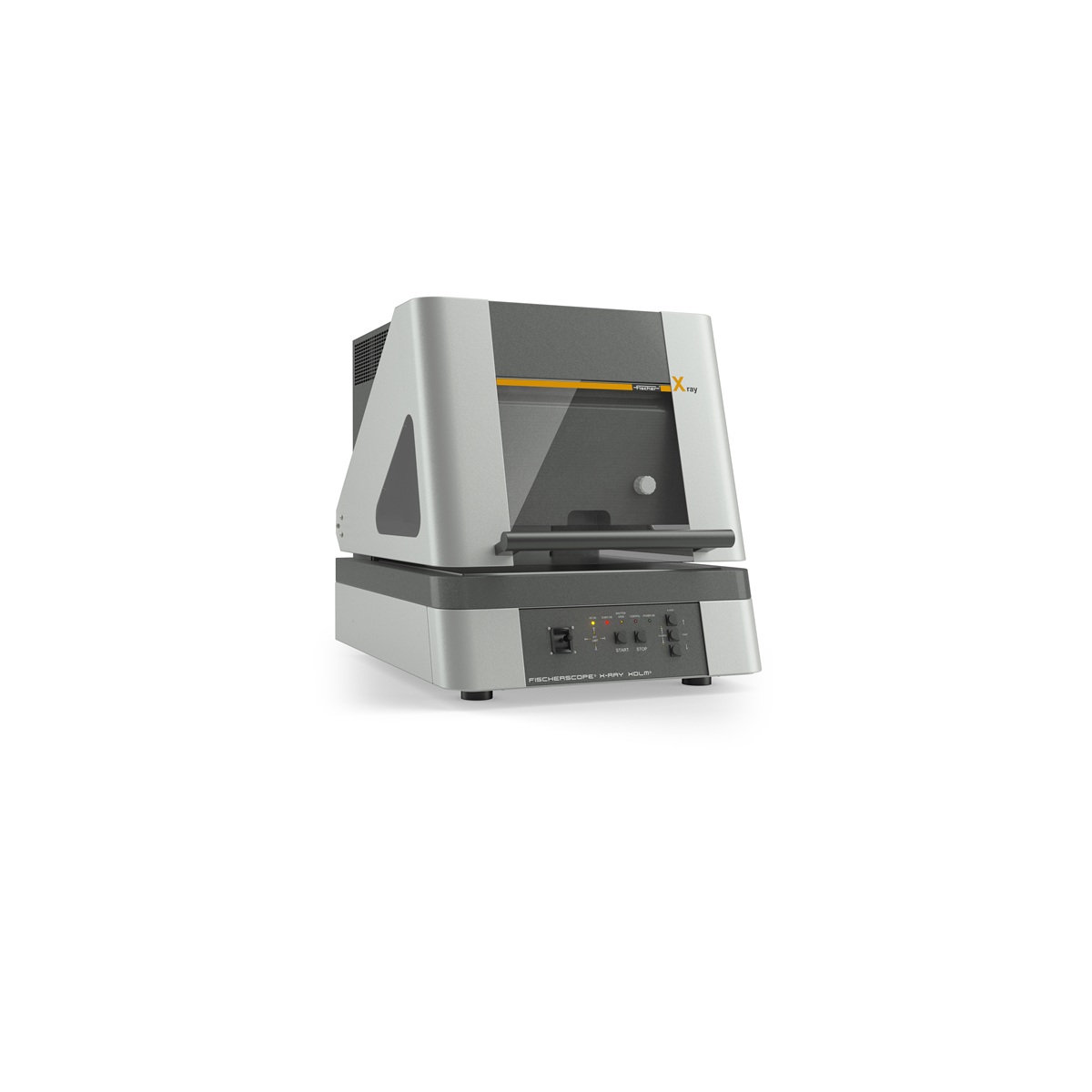

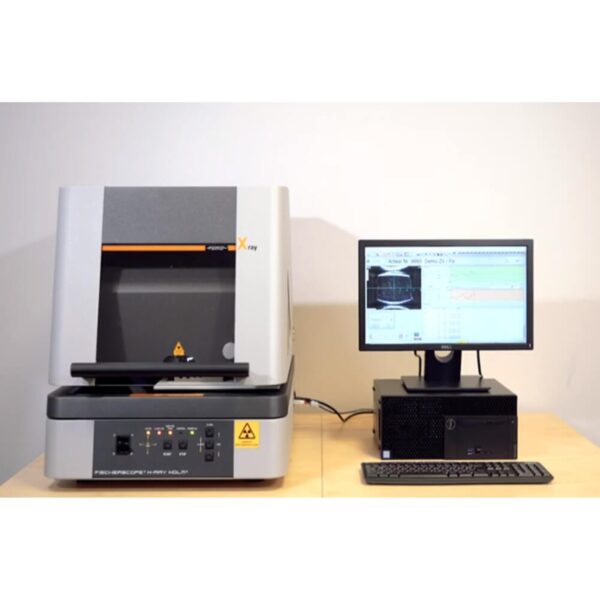

Programmable, Motor-Driven XY-Stage For Automated Measurements | X-RAY XDLM 237 | Fischer
Save time and let the FISCHERSCOPE® X-RAY XDLM® 237 work for you! With the programmable XY-table, your Fischer X-RAY instrument performs measurements fully automatically.
Applications
- Electroplated, galvanized coatings such as zinc on iron as corrosion protection
- Serial testing of mass-produced parts
- Analysis of the composition of special steels, e.g. detection of molybdenum in A4
- Decorative chrome coatings, e.g. Cr/Ni/Cu/ABS
- All typical chrome coatings – also new ones such as CrVI
- Measurement of functional gold coatings on printed circuit boards such as Au/Ni/Cu/PCB or Sn/Cu/PCB
- Coatings on connectors and contacts in the electronics industry such as Au/Ni/Cu and Sn/Ni/Cu
