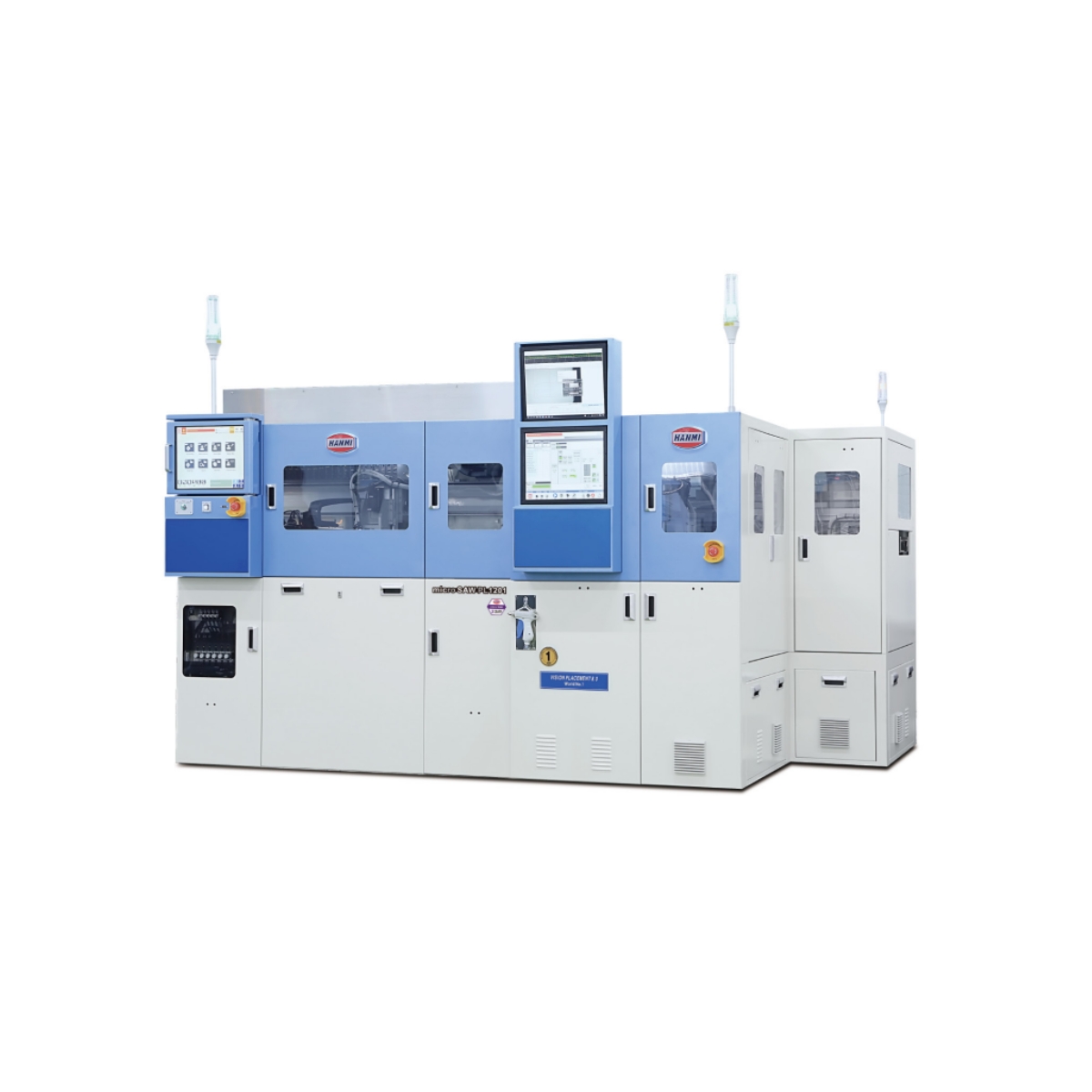

HANMI – micro SAW P2101 & Vision Placement 8.0PS
The micro SAW P2101 was developed as a package singulation saw intended for customers needing to singulate their packages, such as BGA’s, QFN’s, MAP’s, etc., from strips.
Available in :
The 10” dual chuck makes it the perfect system for simultaneous cutting with independent individual chuck tables and blades. The system provides short cycle times with optimized alignment, intelligent pattern matching, post cutting alignment and auto jig teaching.
Key Features
- Maximized Productivity: Active motion profiles, short cycle times and optimized alignment deliver maximum productivity.
- Super-Precision Accuracy: Several features including a super casting iron, individual cutting paths, post-cutting alignment, intelligent pattern matching and auto jig teaching assure the highest accuracy.
- Proven Stability: Reliability is paramount. That’s why this system offers auto strip protection, target search editor, all-around water detection, smart vacuum pump, scrap water slide and more.
- User Convenience: Many features assure ease of use including auto dressing, smart cutting sequences, 8 channels, auto search and write, individual velocity control, cutting simulator, etc.
Technical Specification
| Vision align accuracy | 2 µm |
| Cutting accuracy | ±50 µm |
| Vacuum pump | 5.4 HP standard, 7.5 HP option |
| Chunk table speed | Max. 1250 mm/s |
| Spindle-vision axis speed/ Index step | Max. 500 mm/s |
| Z-Axis actuator | AC servo (ethercat) |
| Wide tool cleaning fuction | Standard |
| Water filter | Standard |
| Auto blade dressing fuction | Standard |
| Cutting channel | 8 Channels |
| Individual cutting path | Standard |
| Foot print | 1500&1710*1800 |
