Haimer – Measuring Instruments – 3D-Sensors and Centering Devices
The HAIMER 3D-Sensors are very precise and wide-ranging measurement devices for milling and EDM machines (isolated probe tip). They are clamped into a tool holder and inserted into a milling spindle and make it possible to position the spindle axis exactly on the edges of the workpiece. This allows for zeros to be set and the length to be measured quickly and easily. You may approach in any direction (X-, Y-, Z-Axis). When the dial gage shows zero, the spindle axis is exactly on the workpiece edge.
Only the HAIMER 3D-Sensor allows for the edge to be found on the first attempt. No calculating of the probe’s ball diameter is necessary – just Zero it out! Problems with mathematics or calculations are eliminated, allowing for fewer operator errors.
By using the HAIMER Centro centering bores and arbors is quick and precise.
Available Models
Technical Specifications
| L1 | 101 mm. | |
| L2 | 25 mm. | |
|---|---|---|
| Ø D1 | 12 mm. | |
| Ø D2 | 4 mm. | |
| B | 62 mm. | |
| Smallest unit of measure | 0.01 mm. | |
 | ||
Technical Specifications
| L1 | 5.67 Inch. | |
| L2 | 1.89 Inch. | |
|---|---|---|
| Ø D1 | 0.63 Inch. | |
| Ø D2 | 0.2 Inch. | |
| B | 2.52 Inch. | |
| Smallest unit of measure | 0.0004 Inch. | |
| Centering accuracy | 0.0001 Inch. | |
| Max. rotation speed | 150 rpm. | |
 | ||
Technical Specifications
| L1 | 4.4 Inch. | |
| L2 | 1.97 Inch. | |
|---|---|---|
| Ø D1 | 0.75 Inch. | |
| Ø D2 | 0.2 Inch. | |
| B | 2.6 Inch. | |
| Smallest unit of measure | 0.0004 Inch. | |
 | ||
Technical Specifications
| L1 | 4.4 Inch. | |
| L2 | 1.97 Inch. | |
|---|---|---|
| Ø D1 | 0.75 Inch. | |
| Ø D2 | 0.2 Inch. | |
| B | 2.6 Inch. | |
| Smallest unit of measure | 0.00005 Inch. | |
| Repeatability | 0.00005 Inch. | |
| Measuring accuracy | 0.0002 Inch. | |
| Display size | 1.8×0.9 Inch. | |
| Height of numbers | 0.3 Inch. | |
| Service life of battery approx. (continuous operation) | 3000 hrs. | |
 | ||
Technical Specifications
| L1 | 3.7795 Inch. | |
| L2 | 0.9764 Inch. | |
|---|---|---|
| Ø D1 | 0.39 Inch. | |
| Ø D2 | 0.2 Inch. | |
| B | 1.92 Inch. | |
| Smallest unit of measure | 0.0004 Inch. | |
 | ||
Key Features
HAIMER – Measuring Instrument | 3D-Sensor New Generation
- Exact positioning of the spindle axis on the edges of the workpiece.
- Smallest unit of measure of 0,01 mm. / 0.0004″.
- Replaceable probes for maximum flexibility.
- IP 67 waterproof.

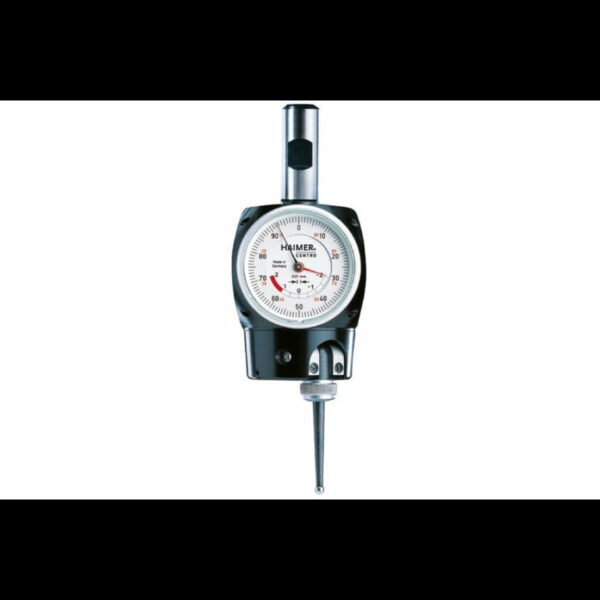

HAIMER – Measuring Instrument | Centro
- Quick and exact centering of borings and shafts.
- Centering accuracy of 0,003 mm. / 0.0001″.
- Replaceable probes for maximum flexibility.
HAIMER – Measuring Instrument | Universal 3D-Sensor
- Exact positioning of the spindle axis on the edges of the workpiece.
- Smallest unit of measure of 0,01 mm. / 0.0004″.
- Replaceable probes for maximum flexibility.
- IP 67 waterproof.
HAIMER – Measuring Instrument | 3D-Sensor Digital
- Exact positioning of the spindle axis on the edges of the workpiece.
- Smallest unit of measure of 0.001 mm. / 0.00005″.
- Replaceable probes for maximum flexibility.
- IP 64 dust- and waterproof.
HAIMER – Measuring Instrument | Zero Master
- Exact positioning of the spindle axis on the edges of the workpiece.
- Smallest unit of measure of 0.01 mm. / 0.0004″.
- Replaceable probes for maximum flexibility.
- IP 67 waterproof.
HAIMER 3D-Sensors
HAIMER sensors are solid, reliable, practical and easy to use and produce reliable results. For many years now, they have been used all around the world in numerous different machines, from a manual milling machine to machining centres, they accurately position the spindle axis by the easiest method possible.
Key Industries
- Aerospace
- Automotive
- Die & Mould
- Education & Academics
- Electronics
- Machinery & Manufacturing
- Medical
- Mining & Minerals
- Oil & Gas
- Semiconductor, Solar & Electronics
- Shipbuilding
Brand
HAIMER is a family run, medium size company located in Igenhausen, Bavaria near Augsburg, Germany. We design, produce and sell innovative, high precision products for metal cutting as well as for other branches including automotive, aerospace, energy, rail and general machining. In addition to our large offering of tool holders in all popular interfaces and lengths, including our shrinking and balancing machines, as well as our 3-D Sensors, solid carbide cutting tools, our product offering now also includes tool presetting machines.
