Haas – CNC Lathes, 2 Axis / Y-axis – ST-30 Series

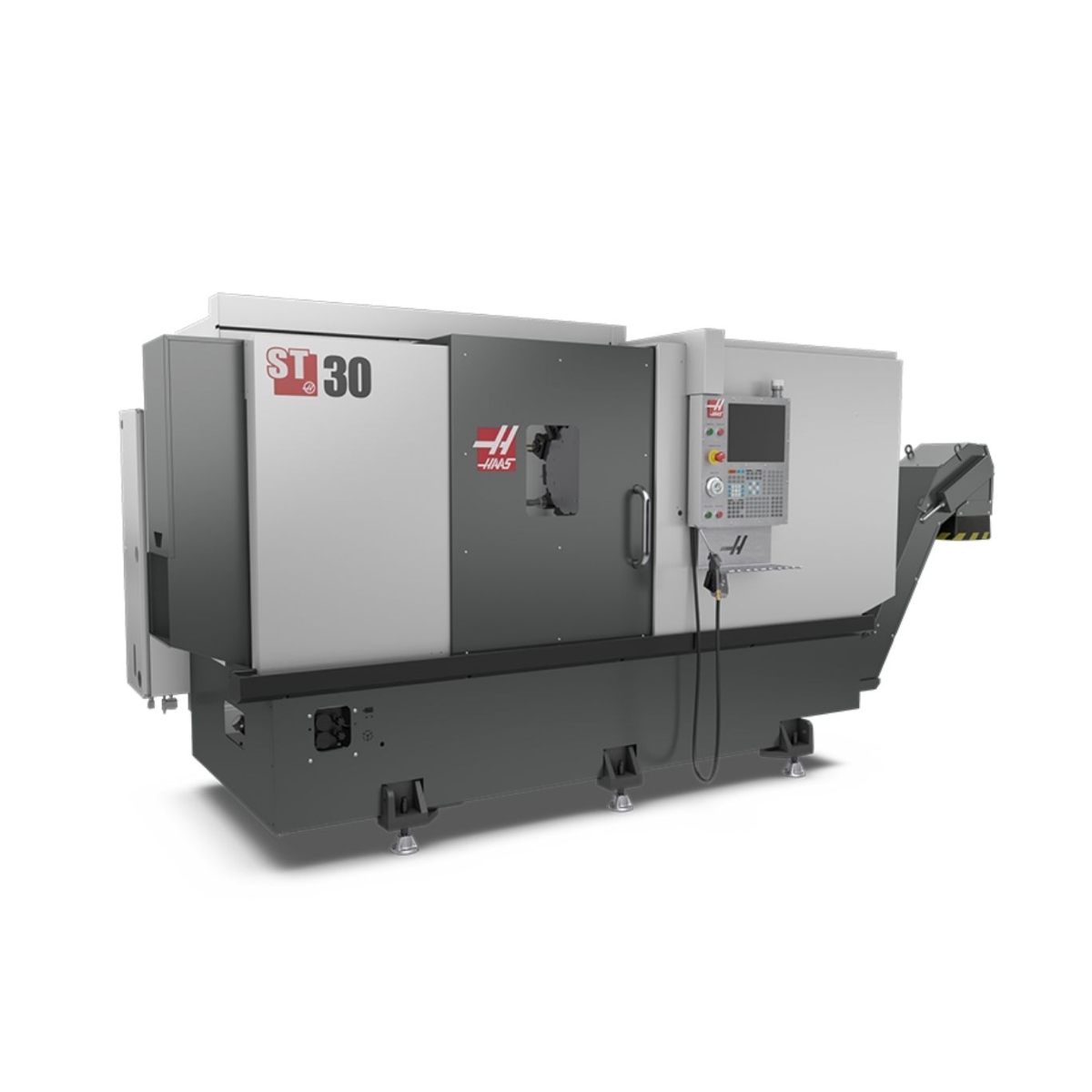

The Haas ST-30 Series high-performance turning centers were designed from the ground up to provide heavy cutting ability, extreme rigidity, and high thermal stability. Available in standard and Super Speed models, these 254 mm chuck machines offer the best combination of performance and value in their class. With available 6 000-rpm live tooling and C axis, it’s possible to machine multiple features and perform secondary operations in a single setup.
The Haas ST-30 Series Y-axis turning centers provide 101 mm of Y-axis travel (±51 mm from the centerline) for off-center milling, drilling, and tapping, and come standard with 6000-rpm live tooling and a servo-driven C axis for versatile 4-axis capability. They are available in standard and Super Speed configurations.
Available Models
Technical Specifications
CNC Lathe; 21″ x 26″ (533 x 660 mm) max capacity, 3.0″ (76 mm) bar, 31.75″ (806 mm) swing, 30 hp (22.4 kW) vector drive, 3400 rpm, A2-6 spindle,10″ (254 mm) chuck, 12-station bolt-on turret, 15″ color LCD monitor, memory lock keyswitch, USB port and rigid tapping. Standard toolholder kit included with BOT or Hybrid turret. The Haas Bar Feeder is not compatible with the optional gear-drive spindle.
Technical Specifications
CNC Lathe; 16″ x 26″ (406 x 660 mm) max capacity, 31.75″ (806 mm) swing, 30 hp (22.4 kW) vector drive, 4500 rpm, A2-6 spindle, 10″ (254 mm) chuck, 24-station hybrid turret (12 VDI/12 BOT), 15″ color LCD monitor, memory lock keyswitch, USB port and rigid tapping. Standard toolholder kit included.
Key Industries
- Aerospace
- Automotive
- Defense
- Die & Mould
- Education & Academics
- Electronics
- Machinery & Manufacturing
- Medical
- Mining & Minerals
- Oil & Gas
- Semiconductor, Solar & Electronics
- Shipbuilding
Brand
Haas Automation is the largest machine tool builder in the western world, manufacturing a complete line of CNC vertical machining centers, horizontal machining centers, CNC lathes, and rotary products. High-quality Haas machines are engineered for simple maintenance, easy setup, and low-cost operation.
