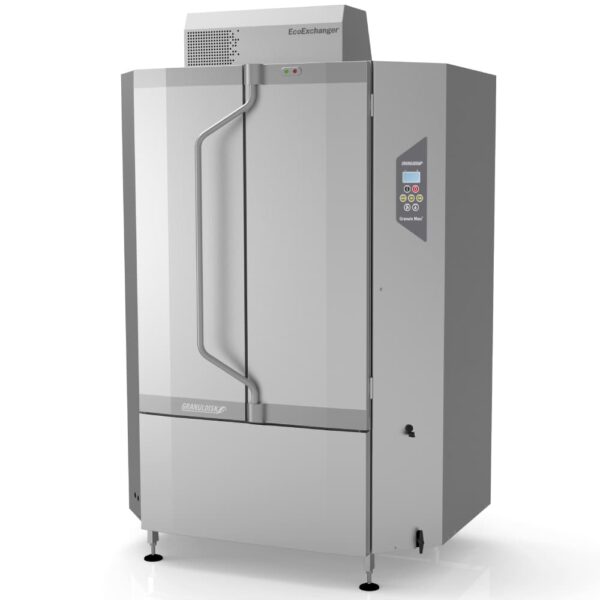

Granuldisk Granule Maxi
Granule Maxi® is a front loaded No Pre-Washing™ pot washer that suits medium to large-sized kitchens. The handling of pots is extremely important to the workflow and Granule Maxi is the high capacity machine that makes sure that pots are quickly ready to use again. To maximize this benefit, Granule Maxi can be customized by using the right combination of accessories.
Use Granule Maxi as a stand-alone solution or as a system with mobile multi-cassettes and trolleys.
Maximum output for production ranging from 400 to 3000 hot meals a day
The Granule Maxi model is suitable for large scale food production facilities, preparing between 400 and 3000 hot meals a day – and beyond. However, the food production and distribution processes are of great importance and might override the meals per day indication. The Granule Maxi model comes in three different editions – Compact, Flow and FreeFlow. Wash almost any kitchen utensil with ease with the help of a few accessories.
Technical Specifications
| Design | Compact Edition / Flow Edition / FreeFlow Edition |
| Outer dimensions (H x W x D) | 2,039 x 1,452 x 1,089 mm |
|---|---|
| Loading volume | 450 litres (B 540 x H 1,060 x D 680 mm) |
| Weight (filled / empty) | 666 kg / 485 kg |
| Wash tank volume | 165 litres |
| Rinse water volume | 7 litres (ECO program) 14 litres (Short / Normal program) |
| Granule volume | 16 litres |
| Wash water temperature | 65 °C |
| Rinse water temperature | 85 °C |
| Sound pressure level | < 70 dB (A) |
Available Models
Technical Specifications
| Design | Compact Edition / Flow Edition / FreeFlow Edition |
|---|---|
| Outer dimensions (H x W x D) | 2,039 x 1,452 x 1,089 mm |
| Loading volume | 450 litres (B 540 x H 1,060 x D 680 mm) |
| Weight (filled / empty) | 666 kg / 485 kg |
| Wash tank volume | 165 litres |
| Rinse water volume | 7 litres (ECO program) 14 litres (Short / Normal program) |
| Granule volume | 16 litres |
| Wash water temperature | 65 °C |
| Rinse water temperature | 85 °C |
| Sound pressure level | < 70 dB (A) |
Compact Edition offers the highest capacity per square meter of all the Granule Maxi Editions and can wash up to 192 GN 1/1 per hour in just 1.5 m2 in floor space. Suitable for operations that prepare between 400 and 1500 meals/day and consists of a Granule Maxi machine fitted with a retractable cassette insert.
GN pans are loaded by sliding them into the metal guides of either the upper or lower sides of the cassette and pots can be loaded directly onto the bottom grid of the cassette. Add suitable accessories to provide further loading options.
Technical Specifications
| Design | Compact Edition / Flow Edition / FreeFlow Edition |
|---|---|
| Outer dimensions (H x W x D) | 2,039 x 1,452 x 1,089 mm |
| Loading volume | 450 litres (B 540 x H 1,060 x D 680 mm) |
| Weight (filled / empty) | 666 kg / 485 kg |
| Wash tank volume | 165 litres |
| Rinse water volume | 7 litres (ECO program) 14 litres (Short / Normal program) |
| Granule volume | 16 litres |
| Wash water temperature | 65 °C |
| Rinse water temperature | 85 °C |
| Sound pressure level | < 70 dB (A) |
Flow Edition fits kitchen operations that prepare between 1000 and 3000 meals/day and have a little bit more space to allocate in the pot wash area. Includes 2 cassettes, 1 cassette trolley and two sets of wall hooks to hang the cassettes on when loading and unloading. Creates an efficient flow and permits multitasking. While one cassette is used in a wash cycle, the other can be emptied or filled.
If there is a future increase in capacity demand, the system can easily be expanded by adding one or more cassettes, trolleys and wall hooks. The Flow System will help you make more efficient use of your time, space and utensils in the kitchen and in the long run even allow you to reduce the number of utensils you need. In turn you will need less room for storage.
Technical Specifications
| Design | Compact Edition / Flow Edition / FreeFlow Edition |
|---|---|
| Outer dimensions (H x W x D) | 2,039 x 1,452 x 1,089 mm |
| Loading volume | 450 litres (B 540 x H 1,060 x D 680 mm) |
| Weight (filled / empty) | 666 kg / 485 kg |
| Wash tank volume | 165 litres |
| Rinse water volume | 7 litres (ECO program) 14 litres (Short / Normal program) |
| Granule volume | 16 litres |
| Wash water temperature | 65 °C |
| Rinse water temperature | 85 °C |
| Sound pressure level | < 70 dB (A) |
FreeFlow is the most flexible and efficient of the four Granule Maxi Editions, and fits kitchen operations that produce between 1000 and 3000 meals a day. The Granule Maxi machine comes with 2 cassettes and 2 trolleys, but you can add more if you feel additional capacity will be needed. The FreeFlow System offers maximum flexibility and flow and also saves time, as the trolleys can be used to transport the cassettes with clean items back to the storage location instead of carrying them or using a mobile trolley.
The FreeFlow System will help you make more efficient use of your time, space and utensils in your kitchen and in the long run even allow you to reduce the quantity of utensils, which in turn leads to less room needed for storage.
Key Features
Granuldisk Granule Maxi
- High capacity: 8 GN 1/1 or 4 GN 2/1 per cycle up to 192 GN 1/1 or 96 GN 2/1 or 384 GN 1/2 per hour
- Water saving: Saves up to 226 liters per cycle
- Time saving: Clean wares in 2 min 30 sec – No Pre-washing!
- Chemical saving: Saves up to 8.4 liters per day, up to 2500 liters per year
Granule Maxi Trolley System
Granule Maxi Pot Washer
Key Industries
- Food & Beverage
Brand
GRANULDISK, part of Sandberg Development AB, is based in Malmö, Sweden with headquarters, manufacturing and R&D. GRANULDISK was founded in 1987 and is now the market leader in the field of commercial pot washers using Granules. GRANULDISK is represented around the world by subsidiaries, dealers and service partners. We are constantly devising new areas of application through innovation and development processes, which in turn generates new customer groups.
