GETECH – GSR Series Semi-auto Router Machine
The GSR series standalone routers are designed to be high performance and cost-effective solutions to meet your PCB depaneling requirements. The system allows continuous routing without stoppages and has a user-friendly software that allows the user to program the routing paths within minutes. Key components are protected from dust and dirt to increase machine performance and lifespan.
Using a high-resolution CCD camera, and GSR user-friendly Windows-based software allows the user to program the routing paths in minutes. There are also no limitations in the number of programs stored. GSR1200E uses high-quality components and a welded steel structure to ensure rigidity and high performance. All the axes and linear guides used are protected from dust and dirt to increase lifespan and performance.
Key Features
- High-speed Routing
- Manual Loading/ Unloading
- High-resolution Camera
- Rigid Fixturing and Easy Replacement
- Universal/ Dedicated Fixtures Available
- Safety Protection Enclosure Cabinet W/ Internal Partition
- High Accuracy & Quality
- Powerful System
- User Friendly Software
Available Models
Technical Specifications
| Panel size | 350mm x 350mm |
| Panel thickness | 0.4 mm – 3.0 mm (Option: 0.4 mm – 8.0 mm with 0.5 kW Spindle) |
|---|---|
| Panel component height | Top max. 12 mm Bottom max. 25 mm (standard) / 50 mm (option) |
| Non-routing speed | 1000mm/sec |
| Accuracy or repeatability | ±0.1 mm straight lines, curves and interpolated profiles |
| Cutting speed | 100 mm/sec max (depending on material, cutting quality & tool diameter) |
| Machine dimensions | 1300 mm x 1300 mm x 1700 mm |
| Additional machine information | It is available in many configurations, offering twin and single table sizes, vacuum fixtures and dual head spindles. |

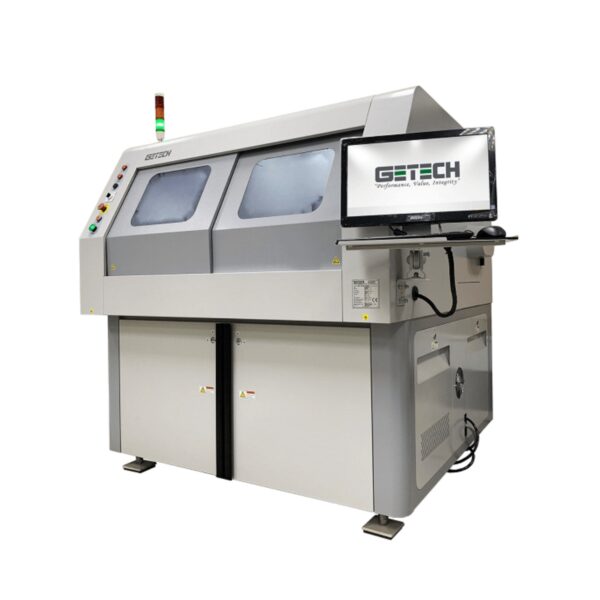

The GSR1200 is a standalone router machine specially designed to route (de-panelize)large panels with PCB size of 350mm x 350mm into individual units. It is capable of speeds of up to 100mm/s and positioning speeds of 1000mm/s. It has two worktables that allows continuous routing with no stoppages during panel loading and unloading. The superior servo axis system provides high acceleration/deceleration, reducing cycle time (increase in production output) and at the same time maintaining high accuracy cutting.
Using a high-resolution CCD camera, and GSR user-friendly Windows-based software allows the user to program the routing paths in minutes. There are also no limitations in the number of programs stored. GSR1200 uses high-quality components and awelded steel structure to ensure rigidity and high performance. All the axes and linear guides used are protected from dust and dirt to increase lifespan and performance.
Key Features
- Dual tables
- High-speed routing
- Manual loading/unloading
- High-resolution camera
- Rigid fixturing and easy replacement
- Universal/dedicated fixtures and top clamp lifter available
- Safety protection enclosure cabinet with internal partition
- High accuracy and quality cut
- Powerful dual vacuum system
- User friendly software
- CE certification (option)
Technical Specifications
| Panel size | 500 mm x 500 mm (19.6” x 19.6”) |
| Panel thickness | 0.4mm – 8.0mm |
|---|---|
| Panel component height | Top max. 12 mm Bottom max. 25 mm (standard) / 50 mm (option) |
| Non-routing speed | 1000mm/sec |
| Accuracy or repeatability | ±0.1 mm straight lines, curves and interpolated profiles |
| Cutting speed | 100 mm/sec max (depending on material, cutting quality & tool diameter) |
| Machine dimensions | 1700mm x 1570mm x 1700mm |
| Additional machine information | It is available in many configurations, offering twin and single table sizes, vacuum fixtures and dual head spindles |
The GSR1280 is a standalone router machine specially designed to route (de-panelize)large panels with PCB size of 500mm x 500mm into individual units. It is capable of speeds of up to 100mm/s and positioning speeds of 1000mm/s. It has two worktables that allows continuous routing with no stoppages during panel loading and unloading. The superior servo axis system provides high acceleration/deceleration, reducing cycle time (increase in production output) and at the same time maintaining high accuracy cutting.
Using a high-resolution CCD camera, and GSR user-friendly Windows-based software allows the user to program the routing paths in minutes. There are also no limitations in the number of programs stored. GSR1280 uses high-quality components and a welded steel structure to ensure rigidity and high performance. All the axes and linear guides used are protected from dust and dirt to increase lifespan and performance
Key Features
- Dual tables
- High-speed routing
- Manual loading/unloading
- High-resolution camera
- Rigid fixturing and easy replacement
- Universal/dedicated fixtures and top clamp lifter available
- Safety protection enclosure cabinet with internal partition
- High accuracy and quality cut
- Powerful dual vacuum system
- User friendly software
- CE certification (option)
Technical Specifications
| Panel size | 610 mm x 610 mm (24” x 24”) |
| Panel thickness | 0.4mm – 8.0mm |
|---|---|
| Panel component height | Top max. 12 mm Bottom max. 25 mm (standard) / 50 mm (option) |
| Non-routing speed | 1000mm/sec |
| Accuracy or repeatability | ±0.1 mm straight lines, curves and interpolated profiles |
| Cutting speed | 100 mm/sec max (depending on material, cutting quality & tool diameter) |
| Machine dimensions (W x D x H) | 1300mm x 1745mm x 1700mm |
| Additional machine information | It is available in many configurations, offering twin and single table sizes, vacuum fixtures and dual head spindles |
The GSR1280E is a single table standalone router machine that is specially designed to route (de-panelize) large panels with PCB size of 610mm x 610mm into individual units. It is capable of speeds of up to 100mm/s and positioning speeds of 1000mm/s. The superior servo axis system provides high acceleration/deceleration, reducing cycle time (increase in production output) and at the same time maintaining high accuracy cutting.
Using a high-resolution CCD camera, and GSR user-friendly Windows-based software allows the user to program the routing paths in minutes. There are also no limitationsin the number of programs stored. GSR1280E uses high-quality components and a welded steel structure to ensure rigidity and high performance. All the axes and linear guides used are protected from dust and dirt to increase lifespan and performance.
Key features
- High-speed routing
- High-resolution camera
- Manual loading/unloading
- Rigid fixturing and easy replacement
- Universal/dedicated fixtures and top clamp lifter available
- Safety protection enclosure cabinet with internal partition
- High accuracy and quality cut
- Powerful dual vacuum system
- User friendly software
- CE certification (option)
Technical Specifications
| Panel size | 910mm x 610mm |
| Panel thickness | 0.4mm – 8.0mm |
|---|---|
| Panel component height | 12mm (Subjected to review) |
| Non-routing speed | 1000mm/sec |
| Accuracy or repeatability | ±0.1 mm |
| Cutting speed | 100mm/sec max |
| Machine dimensions (W x D x H) | 1620mm x 1745mm x 1700mm |
| Additional machine information | It is available in many configurations, offering twin and single table sizes, vacuum fixtures and dual head spindles |

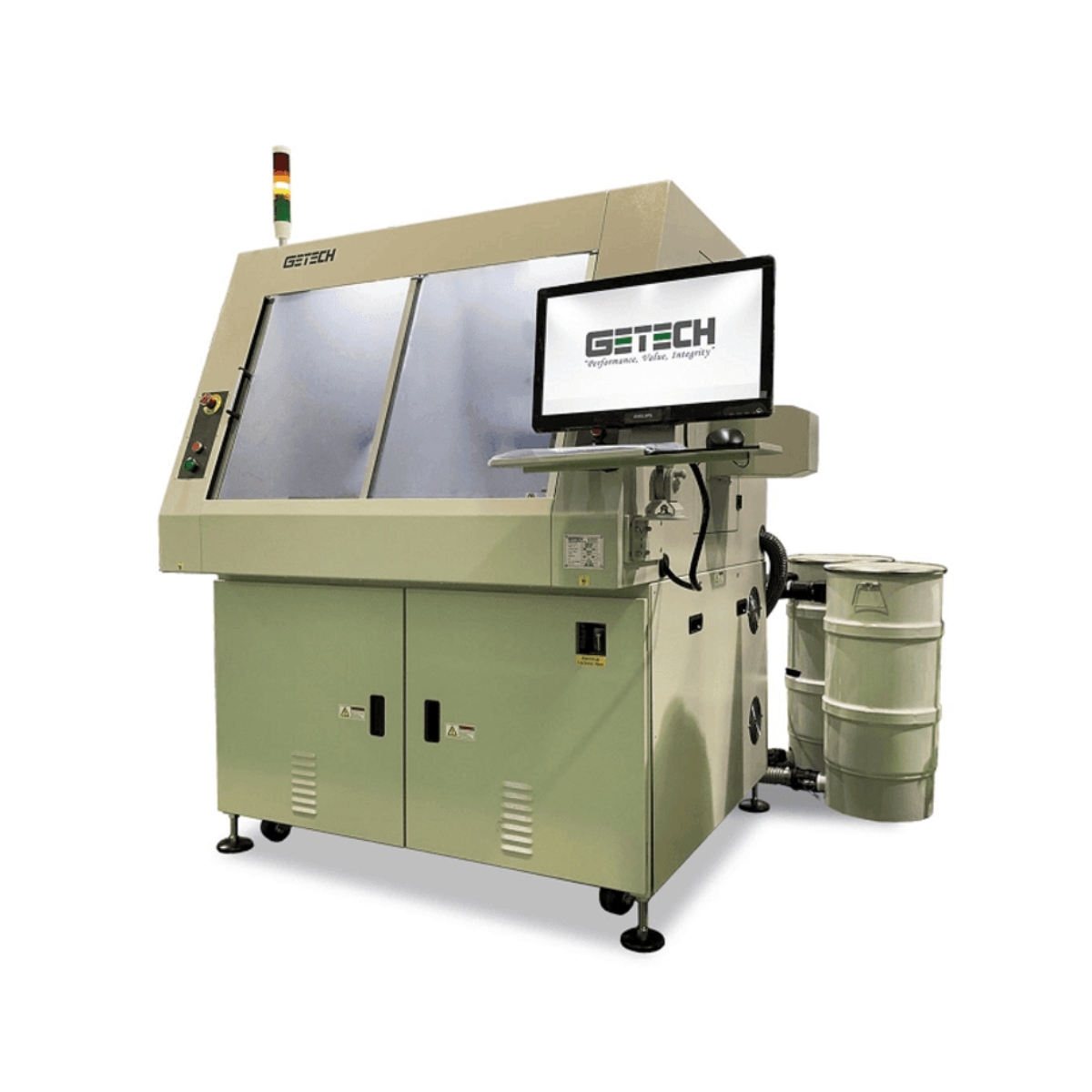

The GSR1290 is a single workstation standalone router which can handle large panel sizes up to 910mm x 610mm (35.5” x 24.0”).
The GSR series standalone routers are designed to be high performance and cost-effective solutions to meet your PCB depaneling requirements.
The system allows continuous routing without stoppages and has a user-friendly software that allows the user to program the routing paths within minutes. Key components are protected from dust and dirt to increase machine performance and lifespan.
Key Features
- High-speed routing
- High-resolution camera
- Manual loading/unloading
- Rigid fixturing and easy replacement
- Universal/dedicated fixtures available
- Safety protection enclosure cabinet with internal partition
- High accuracy and quality cut
- Powerful dual vacuum system
- User friendly software
- CE certification (option)
Technical Specifications
| Panel size | 550mm x 585mm |
| Panel thickness | 0.4mm – 8.0mm |
|---|---|
| Panel component height | 12mm (Subjected to review) |
| Accuracy or repeatability | ±0.1 mm |
| Machine dimensions (W x D x H) | 1670 mm x 1620 mm x 1700 mm |

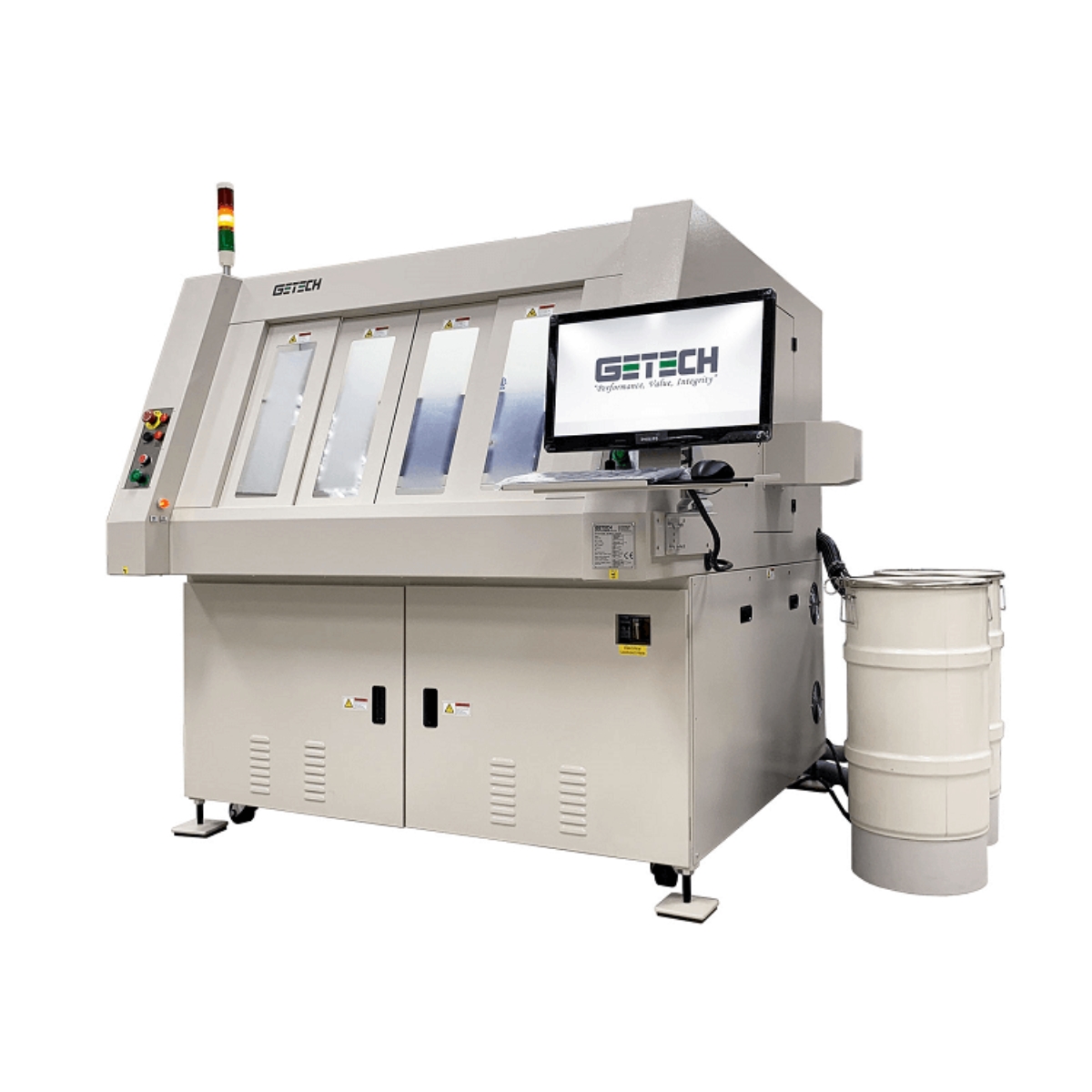

The GSR2280 is a dual workstation standalone router and is known as the world’s fastest router with a cycle rate of only 0.3 seconds per tab.
It can accommodate larger PCBs with paximum panel size of 550mm x 585mm (21.5” x 23”).
Equipped with Getech’s new Graphical User Interface, “Move, Teach & Cut”, the GSR has a user-friendly visual programming experience for rapid and accurate machine control.
Key Features
- Dual tables
- High-speed routing
- High accuracy and quality cut
- Manual loading/unloading
- Automatic sliding doors
- Universal or dedicated fixtures and top clamp lifter available
- Safety protection enclosure cabinet with internal partition
- Rigid fixturing and easy replacement
- High-resolution camera
- Powerful dual vacuum system
- CE certification (option)
Key Industries
- Electronics
- Machinery & Manufacturing
- Semiconductor, Solar & Electronics
Getech Automation was established in 1992 to focus on developing and manufacturing machines and systems to meet key needs of…
