Georg Kesel – Bandsaw Setting Machine – TSM 160s
Saw tooth setting has evolved. Your tooth tips, the most important and valuable part of your products, are also continually evolving so why would you continue to set them with outdated, aged technology? The Bandsaw Setting Machine TSM 160s from Kesel will change that.
The TSM 160s automatic setting machine has been designed and engineered upon our foundation of decades of experience working alongside the world’s best bandsaw manufacturers. Our patented Baseline-Setting technology will not only deliver you the most precise, reliable set you have ever seen, it will also deliver unbeatable protection to your tooth tips.
A world-class set, continually monitored and automatically adjusted by our integrated quality control system will ensure perfect and consistent symmetry and set width. The result? Unrivalled cutting efficiency and chip clearance for your customers. Tooth setting has evolved. Shape the future with the TSM 160s from Kesel.
Technical Specification
| Bandsaw Data | Bandwidth | 10 – 95 mm |
| Band Thickness | 0.6 – 1.65 mm | |
| Band Material | Carbon, bi-metal (soft or hardened state) and carbide-tipped band material | |
| TPI | 0.5 – 32 | |
| Control | Siemens SIMATIC HMI IPC | |
| Precision and Productivity | Setting Tolerance | ± 0.02 mm |
| Symmetry Tolerance | ± 0.02 mm | |
| Output | Up to 660 m per hour | |
| Setting Index | Up to 160 mm | |
| Dimensions and Weight | Installation dimensions (L x W x H) | 7,100 x 4,520 x 2,000 mm (with Speed 90 coiling system) |
| Machine weight | 1,850 kg (incl. elec. cabinet and coiling system) | |
| Options | Speed 90 coiling system. Software extension for variable set profiles. Customised tooling. |
Key Features
- Patented ‘Baseline’ setting technology delivers the world’s best set.
- A huge 160 mm setting area for record productivity.

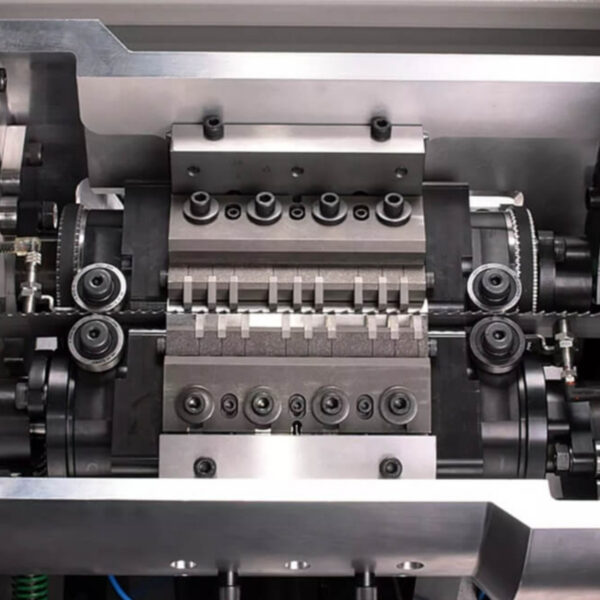

- A powerful centric vise ensures precise set symmetry even on hardened bands.
Kesel TSM 160s Bandsaw Setting Machine

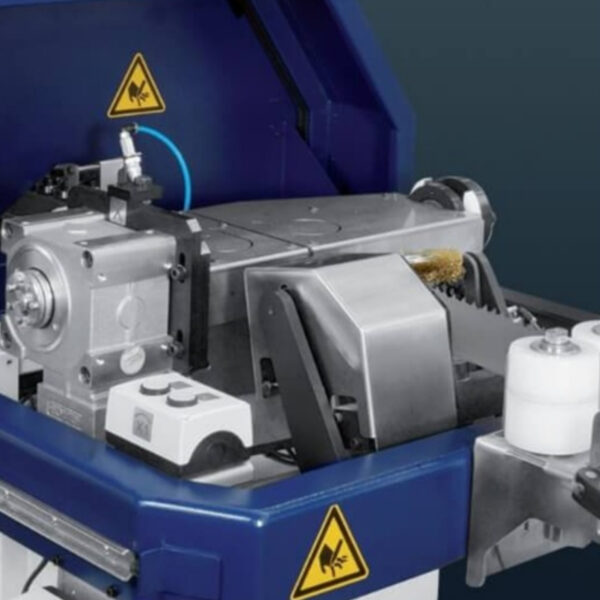

The Kesel TSM 160s automatic bandsaw setting machine uses patented, baseline setting technology to set bandsaw blades with precision and speed. Carbon, bi-metal and carbide-tipped bands can be set with fully automated setting width and symmetry adjustments.
Key Industries
- Aerospace
- Automotive
- Defense
- Die & Mould
- Education & Academics
- Electronics
- Machinery & Manufacturing
- Medical
- Mining & Minerals
- Oil & Gas
- Semiconductor, Solar & Electronics
- Shipbuilding
Brand
Georg Kesel GmbH & Co. KG is an internationally recognized manufacturer of machine tools for linear tooth profile milling. These milling machines offer optimized production techniques for bandsaw blades, racks, steering racks, steering pistons and workpiece with customer specific tooth profiles. Our product range also covers setting machines, bandsaw blade straightening machines, coiling systems and gear deburring machines. Our second business division is clamping systems. The Kesel clamping technology covers mechanical, pneumatic and hydraulic machine vices and clamping systems including customer specific modifications.
