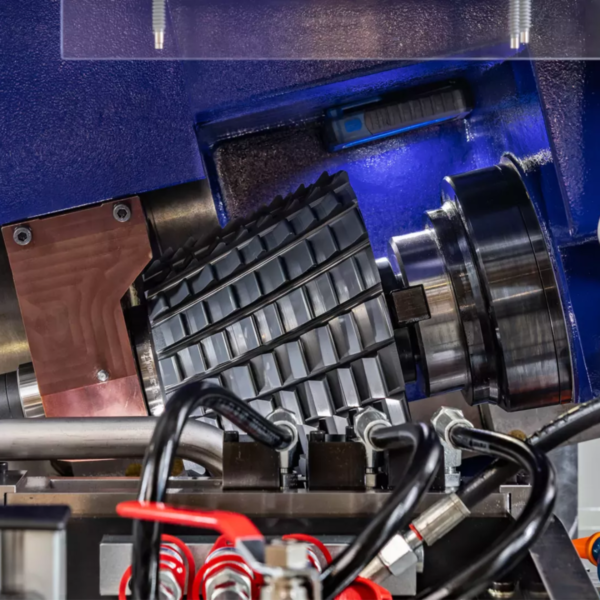

Georg Kesel – Bandsaw Blade Milling Machine – B240M
Performance is power. Used by the world’s leading bandsaw and saw accessory manufacturers, the B240M bandsaw blade milling machine has taken over as the most powerful machine on the market. With unmatchable productivity and quality performance, the B240M provides a manufacturing platform to beat all others.
The first in the new B Series of machines from Kesel, the B240M not only builds upon the global success of the FS 2500, but truly redefines the performance level of bandsaw blade milling machines. A completely new machine from Kesel, the B240M has been designed and engineered for pure productivity. The hybrid core, consisting of a steel and mineral-composite machine bed and column, delivers increased machine stiffness and dampening which transfers through to ensure the smoothest, highest quality milling ever achieved.
Technical Specification
| Bandsaw Data | Bandwidth | Up to 125 mm |
| TPI | 32 – 0.5 | |
| Milling Head | Type | F1-HSK |
| Power | 45kW S6 40 % | |
| RPM | max. 450 | |
| Max. Tool width | 240 mm (Subject to cutter taper and rake angle) | |
| Milling Arbor | HSK 125B | |
| Control | Siemens SINUMERIK 840D sl | |
| Clamping System | Zero-loss clamping system with servo-driven levelling unit. | |
| Max. packet width | 60 mm | |
| Dimensions and Weight | Installation dimensions (L x W x H) | 7,400 x 7,800 x 2,550 mm |
| Machine weight | Approx. 16.000 kg | |
| Options | Tooth-tip height measuring unit. Pay-out and take-up coiling systems. Extended remote connectivity and data overwatch options. |
Key Features
- Tool widths up to 310 mm for unbeatable productivity.
- Huge 60 mm clamping width.
- State-of-the-art operating system delivers ultimate connectivity.
Kesel B240M Bandsaw Blade Milling Machine
Performance is power. Used by the world’s leading bandsaw and saw accessory manufacturers, the B240M bandsaw blade milling machine has taken over as the most powerful machine on the market. With unmatchable productivity and quality performance, the B240M provides a manufacturing platform to beat all others. The first in the new B Series of machines from Kesel, the B240M not only builds upon the global success of the FS 2500, but truly redefines the performance level of bandsaw blade milling machines.
Key Industries
- Aerospace
- Automotive
- Defense
- Die & Mould
- Education & Academics
- Electronics
- Machinery & Manufacturing
- Medical
- Mining & Minerals
- Oil & Gas
- Semiconductor, Solar & Electronics
- Shipbuilding
Brand
Georg Kesel GmbH & Co. KG is an internationally recognized manufacturer of machine tools for linear tooth profile milling. These milling machines offer optimized production techniques for bandsaw blades, racks, steering racks, steering pistons and workpiece with customer specific tooth profiles. Our product range also covers setting machines, bandsaw blade straightening machines, coiling systems and gear deburring machines. Our second business division is clamping systems. The Kesel clamping technology covers mechanical, pneumatic and hydraulic machine vices and clamping systems including customer specific modifications.
