Georg Kesel – Bandsaw Blade Grinding Machine – B127G

Technical Specification

Bandwidth		max. 125 mm
Grinding Head	Type	S98
	Power	98 kW S1
	Grinding wheel width (max.)	127 mm
	Grinding wheel diameter (max.)	400 mm
	Grinding wheel diameter (min.)	270 mm
Control		Siemens SINUMERIK ONE
Dimensions and Weight	Installation dimensions (L x W x H)	Approx. 4,700 x 8,600 x 3,200 mm
	Machine weight	Approx. 18,000 kg

Key Features

• Tool widths up to 310 mm for unbeatable productivity.
• Huge 60 mm clamping width.
• State-of-the-art operating system delivers ultimate connectivity.

Band Feeding and Transportation

The band feed system of the B127G has been updated significantly to increase speed of use and dramatically reduce material wastage. Re-designed roller guides and a pneumatic band packet holder ensure band changeovers are completed quickly and effectively.

The zero-loss feed system, a standard feature of the B127G, ensures that grinding begins from the very first millimetre of band material. For organisations conscious of their carbon footprint, the B127G goes a long way to supporting more responsible manufacturing.

Dressing

Total flexibility and precision. Our standard single axis-dressing unit allows splitsecond wheel profiling with total control over all the critical performance parameters. Alternatively, the GP2 system allows single and 2-axes dressing, providing an invaluable, additional capability.

Control

The B127G runs on the SINUMERIK ONE system from Siemens, a multicore architecture comprising of state-of-theart microprocessors. The result? Maximum speed combined with fluid CNC operation, even in high-load scenarios. Implementation of the SIMATIC S7-1500 PLC reduces non-productive times at the machine and offers the best conditions for integrating the B127G into higher-level automated systems.

Coolant & Filtration Management

The intelligent coolant management system supplied with the B127G is fully automated to increase operation efficiency. Coolant volumes and pressures are continually monitored and maintained via the coolant unit’s control system which is fully integrated into the grinding machine’s operating architecture. More complex coolant applications, such as volume and pressure changes during roughing and finish grinding can be easily programmed.

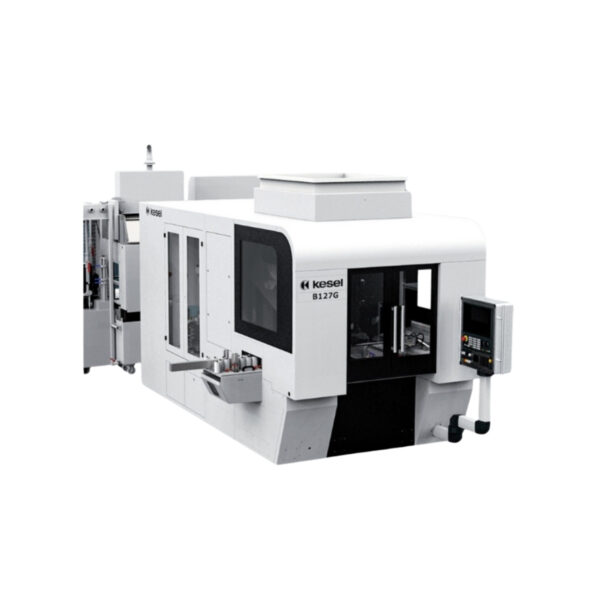

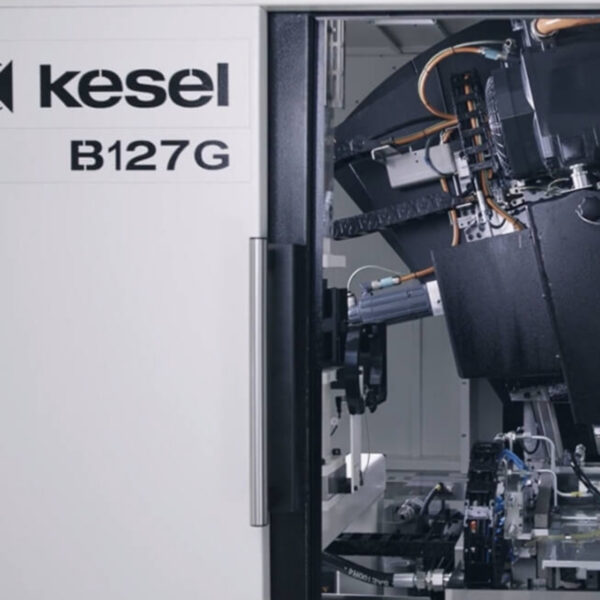

KESEL B127G Bandsaw Blade Grinding Machine

Powerful. Innovative. A machine like no other. The B127G embodies the spirit of Kesel, offering speed, precision and productivity with the incredible power of the industry-first S98 grinding head. With the B127G Bandsaw Blade Grinding Machine, we have redefined the experience and the possibilities within the bandsaw grinding world. Developed to push your grinding experience to the limit. The B127G’s modern and digitally enabled SINUMERIK ONE operating platform creates a seamless and ground-breaking interface between man and machine, enabling never seen before results. At the heart of the machine is the powerhouse, S98 grinding head allowing the B127G to cope with huge band packets and the toughest tooth profiles. Flexibility and utility is further boosted with the optional GP2, twin axes dressing unit. Designed to be easy to operate whilst delivering maximum output, the B127G allows you to harness the full performance that our engineering team have created. A new era begins. Join us in sculpting the future.

Key Industries

• Aerospace
• Automotive
• Defense
• Die & Mould
• Education & Academics
• Electronics
• Machinery & Manufacturing
• Medical
• Mining & Minerals
• Oil & Gas
• Semiconductor, Solar & Electronics
• Shipbuilding
