Gecam – Finishing Machines – Deburring Machines
For over 20 years Gecam has developed and manufactured machines for grinding, polishing, deburring and finishing of sheet metal. DKSH offers complete range of Gecam Deburring Machines: GT06 Sanding Deburring Machine, GCB Sanding Deburring Machine, GE30 Belt Deburring Machine, GE60 RX Finishing Deburring Machine and Stiffelio G11 Sanding Deburring Machine.
Gecam’s range of machines allow for work pieces of various shapes, sizes and materials, from stainless steel to iron and copper. Their machines are suited to a wide array of industries.
Technical Specifications
| Abrasive belt dimension head 844 | 900 x 35 mm |
| Abrasive belt speed | 24 m/sec |
|---|---|
| Conveyor belt dimensions | 1100 x 400 mm |
| Conveyor belt speed | da 6 a 30 m/min |
| Abrasive belt dimension head 845 | 1100 x 25 mm |
| Abrasive belt dimension head 846 | 900 x 25 mm |
| Air consumption | 700 m³/h |
| Maximum dimensions | 800 x 600 x 1480 mm |
| Approx weight | from 295 kg |
Available Models
Technical Specifications
| Working width | 600 mm |
|---|---|
| Abrasive belt size | 2500 x 50 mm |
| Brushes dimension | 66 x 32 mm |
| Working thickness min/max | 0,5/80 mm |
| Feed speed | 0,7-6 m/min |
| Suction required | 6000 m³/h |
| Maximum dimensions L x P x H | 1680 x 1750 x 2100 mm |
| Approx weight | from 2000 kg |
Sanding Deburring Machine
- Associated function: brushing, deburring, sanding
- Applications: for sheet metal, metal parts
Transversal sanding machine for metal surface deburring and rounding of edges, with 6 upper and lower working groups for simultaneous processing on both sides. Fixed bench with motorized dragging rollers in reinforced steel at variable speed. Independent motors for each work group for greater control of processing and management of different working pressures. Equipped with two abrasive belt units and 4 tracks with translating abrasive strips. Touch screen control panel with storage of work programs and alarm self-diagnosis.
Machine Elements
ransversal abrasive belt unit with pressure pad to facilitate the entry of the pieces with independent motor with automatic braking. Tensioning system Group with double belts with strips brushes for perfect brushing on all edges of the sheet even inside the holes. The maintenance of previous surface treatments is guaranteed. Motorized and independent pressure regulation from 0 to 35 mm.
Technical Specifications
| Working table dimension | 2500/3000 x 800 mm |
|---|---|
| Abrasive belt size | 120 x 8000/9000 mm |
| Table stroke Z | 600 mm |
| Maximum piece weight on table | 100 kg |
| Maximum weight on locking system | 8 kg |
| Maximum weight on manipulator | 37 kg |
| Maximum dimensions | 1000 x 3750 x 2200 mm |
| Approx weight | from 790 kg |
Sanding Deburring Machine
- Associated function: finishing, sanding, edge sanding machine
- Applications: for sheet metal, metal parts
Double abrasive belt grinding machine with high working capacity, with belt speed control from 0 to 3000 rev / min. Pneumatic tension system and various accessories for the workpiece machining according to the need, rubber roller, shoe, brush. Special configuration of guide rollers and idle rollers that allow the operator to move the accessory to any point on the belt. Motorized workpiece support table.
Vacuum handling system available with suction cups to block the most difficult pieces to work in any position, with 360 ° horizontal shaft rotation, 360 ° vertical axis rotation and 90 ° horizontal inclination.
Machine Elements
Transversal abrasive belt unit with pneumatic tensioning system, high flexibility to adapt to all conditions of the piece.
Technical Specifications
| Model | GE30 wet | GE30 dry |
|---|---|---|
| Working width | 300 mm | 300 mm |
| Abrasive belt dimensions | 320 x 1900 mm | 320 x 1900 mm |
| Max working thickness | 140 mm | 170 mm (Min: 0,5 mm) |
| Feed speed min/max | 5/10 m/min | – |
| Suction hood | – | n. 1 |
| Suction required | – | 2000 m³/h |
| Maximum dimensions | 1430 x 860 x 2100 mm | 1430 x 860 x 2100 mm |
| Approx weight | from 660 kg | from 590 kg |
Belt Deburring Machine / Automatic
- Associated function: finishing, deburring, sanding
- Applications: for sheet metal, for steel parts, aluminum parts, for sawing burrs
Belt sanding machine for metal surfaces with a useful working width of up to 300 mm with a single and mobile feed bench with ascent and descent thanks to the handwheel, with double feed speed up to 10 m / min. Configurable up to 3 work groups independently controllable from the control panel.
Technical Specifications
| Working width | 650 mm |
|---|---|
| Abrasive belt size | 650 x 2200 mm |
| Working thickness min/max | 0,8 – 170 mm |
| Feed speed | 0,75/6 m/min |
| Suction required | 2440 m³/h |
| Maximum dimensions | 1100 x 1350 x 2150 mm |
| Approx weight | from 930 kg |
Finishing Deburring Machine / Brush / Belt / Automatic
- Associated Function:Â Edge Rounding, Grinding, Polishing
Mobile bench abrasive belt sander that supports up to 3 internal work groups for a configuration adaptable to the need for finishing. Motorized lifting work table with the possibility of inserting a vacuum system. Fine control piece thickness adjustment +/- 0.1. Alarm diagnostic unit with immediate display of emergencies and faults. Variable feed speed with automatic centering belt. Electronic control of inlet thickness. Dust extraction hoods for each work group
Wet version available for processing materials tending to deformation with heat, equipped with tank with motorized pump for water filtration.
Machine Elements
Abrasive belt unit with 125 mm diameter contact roller with heat-resistant nitrile rubber with helical groove and standard hardness 55 ° shore. 7.5 kW 1-speed motor with automatic braking. Automatic belt centering system with electronic photocell. Pneumatic belt tensioning system
Group composed of 8 top quick-change brushes rotating clockwise and counterclockwise simultaneously with transversal movement of the whole group. Motorized and automatic group positioning system according to the program. Brush diameter 115 mm.
Group with scotch brite brush diameter 200 mm, manual ascent and descent system with mechanical height indicator, 1 speed motor 3.0 kW and transversal oscillation system. Rotation in both directions possible.
Technical Specifications
| Working width | 1100 mm |
|---|---|
| Abrasive belt size | 1120 x 1524 mm |
| Working thickness min/max | 0,5/130 mm |
| Feed speed | 2-9 m/min |
| Suction hood | 120 mm |
| Maximum dimensions | 1650 x 1150 x 2000 mm |
| Approx weight | 800 kg |
Edge Rounding Deburring Machine / Finishing / Belt / for Sheet Metal
- Associated function: finishing, deburring, sanding
- Applications: for sheet metal, metal parts
Deburring machine with single abrasive belt working group with mobile bench with adjustment lever with fine control +/- 0.1 and digital thickness display. Advance group with self-centering rubber belt with rubberised pressure rollers before and after the work group and idle roller at the input and output.
Machine Elements
Abrasive belt unit with contact roller 150 mm diameter with heat-resistant nitrile rubber with helical groove and standard hardness 55 ° shore. 1 speed motor kW 11 with automatic braking. Automatic belt centering system with electronic photocell. Pneumatic belt tensioning system.
GT06
GE30 WET
G60

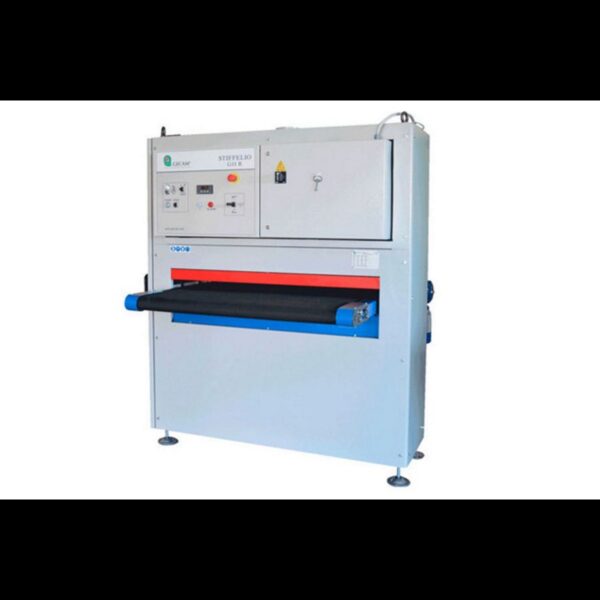

Stiffelio G11 R
Key Industries
- Aerospace
- Automotive
- Defense
- Electronics
- Medical
Brand
GECAM has developed and manufactured machines for grinding, polishing, deburring and finishing of sheet metal. GECAM’s innovative machines can work on objects with various shapes, sizes and materials, from stainless steel to iron and copper. GECAM’s machines can be applied to a wide variety of industrial fields.
With DKSH’s well established market access and coverage of the Aerospace, Automotive, Die and Mold, Education and Academics, Semiconductor and Electronics industries in Malaysia, we will assist in the sales of GECAM machines, while simultaneously developing our global presence in these sectors.
