Gecam – Finishing Machines – Brushing Machines
For over 20 years Gecam has developed and manufactured machines for grinding, polishing, deburring and finishing of sheet metal. DKSH offers complete range of Gecam Brushing Machines: Gecam CUB Brushing Machine, 761 Brushing Machine, GT13 Brushing Deburring Machine and Easy T Edge Rounding Deburring Machine.
Gecam’s range of machines allow for work pieces of various shapes, sizes and materials, from stainless steel to iron and copper. Their machines are suited to a wide array of industries.
Available Models
Technical Specifications
| Brush diameter | 180 mm |
|---|---|
| Working size | 300 mm |
| Speed | 1-7 m/min |
| Minimum item length | 100 mm |
| Min/max working depth | 0,5/250 mm |
| Max size | 1150 x 750 x 1200 mm |
| Weight | 385 kg |
Manual brushing machine for different metal surface working processes, depending on the type of brush that is mounted. Adjustable conveyor belt feed speed to ensure necessary finishing result. Variable brush speed also available on request. Machine user frendly that allows a clear reduction of costs compared to traditional automatic sanders. Brush group in unique structure with manual handwheel for positioning the heads on the work surface. The heads are open on the operator side to allow to process pieces wider than the conveyor belt. Suitable to be equipped with any type of cylindrical brush.
Technical Specifications
| Brush diameter min/max | 350/600 mm |
|---|---|
| Brush holder shaft height | 620/820 mm |
| Maximum dimensions | 750 x 910 x 1160 mm |
High performance industrial brushing machine with 2 speed or electronically variable speed motor. The machine was created for heavy cleaning and polishing operations on pieces of any shape and material. The brush protection guards are adjustable in height, depth and rotation, and are equipped with a small extendable final guard; the rotation speed of the brush holder shaft is electronically variable to always ensure the optimal cutting speed. The brush holder shaft works on two large diameter bearings with the last one near the brush to ensure maximum rigidity. Prepared for the connection of a suction system, it can be fitted with a spreader accessory for polishing the pieces.
Technical Specifications
| Working width | 1300 mm |
|---|---|
| Strips brushes numbers | 150 |
| Brush dimension | 60 x 50 mm |
| Working thickness min/max | 0,5-90 mm |
| Feed speed | 0,7-6 m/min |
| Suction hood | 180 mm |
| Suction required | 4000 m³/h |
| Maximum dimensions | 2550 x 1250 x 1950 mm |
| Approx weight | from 2200 kg |
Associated Function:Â Edge Rounding, Brushing, Sanding
Transversal sanding machine for metal surfaces for rounding edges, with 2 upper and lower work groups for simultaneous processing on the edges of both sides. Fixed bench with motorized rubber drive rollers at variable speed. Independent motors for each work group for greater control of processing and management of different working pressures. Touch screen control panel with storage of work programs and alarm self-diagnosis. The maintenance of previous surface treatments is guaranteed by not working on the surface of the piece.
Technical Specifications
| Working table | 800 x 1300 mm |
|---|---|
| Table height | 945 mm |
| Vacuum area | 250 x 350 mm |
| Motor power | 0.75 kW |
| Brush diameter | 150 mm |
| Pieces max thickness | 150 mm |

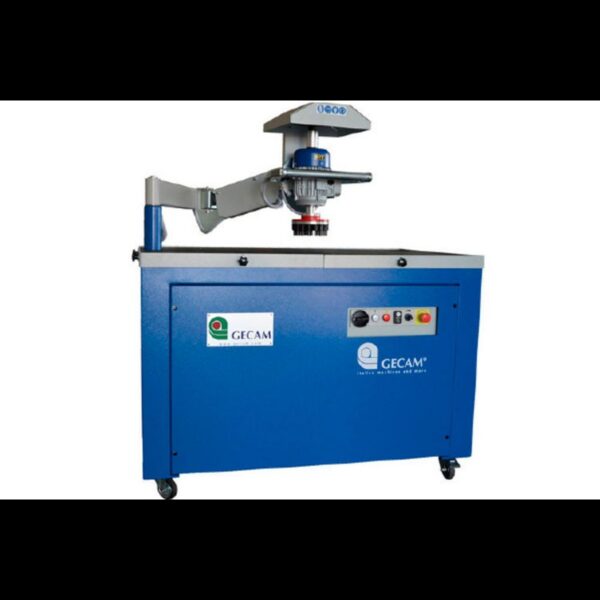

Associated Function: Edge Rounding, Grinding, Polishing
Double tools deburring machine suitable for various processes of metalworking, grinding, deburring, rounding edges and polishing. Equipped with a head mounted on an oscillating arm, which can be tilted through 180 ° for a quick change of the two rotating tools. Adjustable speed and vacuum system for holding the pieces on the work table. In consideration of the desired material and finish, it is possible to mount different types of brushes. Internal dust extraction hood.
Gecam Brushing Machine CUB 30
Manual Grinding, Polishing Machine EASY T
Key Industries
- Aerospace
- Automotive
- Defense
- Electronics
- Medical
Brand
GECAM has developed and manufactured machines for grinding, polishing, deburring and finishing of sheet metal. GECAM’s innovative machines can work on objects with various shapes, sizes and materials, from stainless steel to iron and copper. GECAM’s machines can be applied to a wide variety of industrial fields.
With DKSH’s well established market access and coverage of the Aerospace, Automotive, Die and Mold, Education and Academics, Semiconductor and Electronics industries in Malaysia, we will assist in the sales of GECAM machines, while simultaneously developing our global presence in these sectors.
