Foss – Fibertec™ 8000
The first fully automated fiber analysis solution following official reference methods. Lowest operator time of any fibre analysis solution. Official reference method results with unrivalled accuracy (ISO, AOAC). Safest fibre analysis solution available.
Fibertec™ 8000 is a fully automated system for determination of crude fibre, detergent fibre and related parameters according to standard reference ‘crucible’ methods such as Weende, van Soest etc.
The lowest operator time of any fibre solution
Unattended measurement of up to six samples releases staff to do other things. On board heating and automatic dispensing of all reagents, antifoam and rinsing with water saves time and prevents the risk of human error.
Official reference method results with unrivalled accuracy
No sample transfer or risk of error as sample residue remains in the crucible throughout the procedure. Discrete analysis of each sample according to official methods ensures reliable reference results, while consistent heating rate and time to boiling ensures repeatability.
Safest fibre analysis solution available
Ensure safety with automatic functions such as dispensing of reagents to prevent contact with chemicals and fumes, heat reduction at boiling point to prevent spillage and addition of enzymes and anti-foam when required.
Key Features

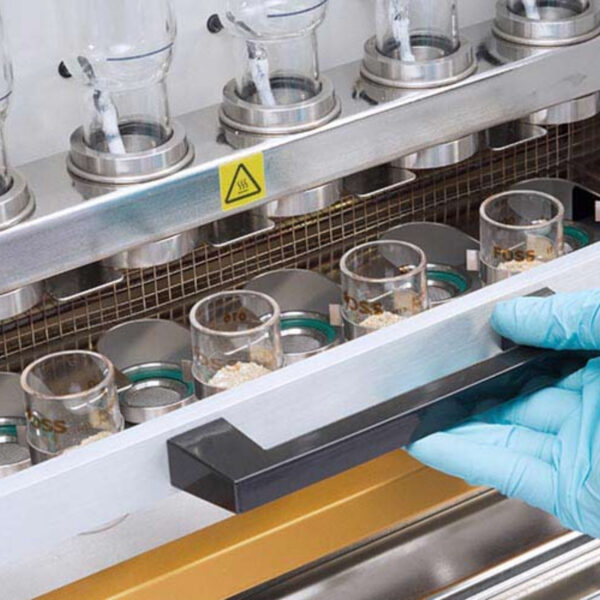

- No sample transfer: Samples are handled separately in standard filter crucibles which are used both as an integral part of the assembly during extraction, rinsing and filtration and as sample vessels during weighing, drying and ashing. Sample residue remains in the crucible during the whole procedure, avoiding sample transfer and associated risk of error.
- The FT 121 Fibertec cold extraction unit: The FT 121 Fibertec™ cold extraction unit can be used in combination with the fully automated Fibertec™ 8000 for de-fatting samples and extraction at ambient temperatures and solvent dehydration of fibre residues.
- Official reference method results: The Fibertec™ 8000 provides official method results (ISO, AOAC), with the safest fibre analysis solution available for crude fibre, ADF, ADL and NDF. Non-attended measurement of up to six samples simultaneously releases staff to do other things – it can even run overnight.

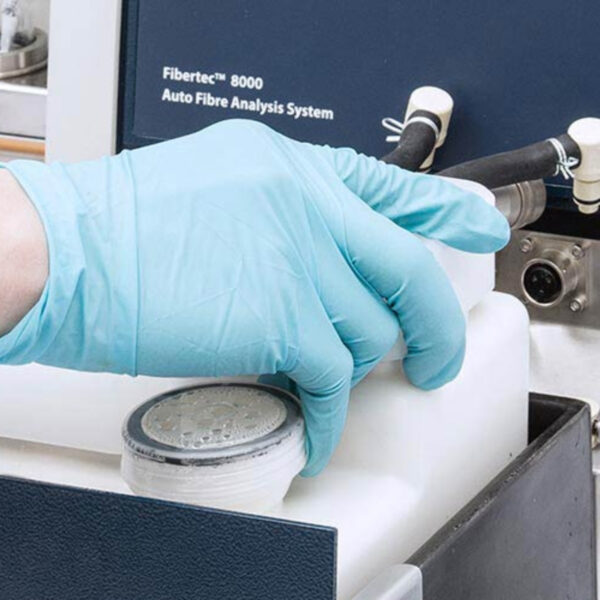

- On-board heating and dispensing of reagents: Innovative safety features help you to raise the safety level in everyday operations. All reagents are dispensed automatically avoiding any contact with hot chemicals and their fumes. In addition, automatic heat reduction when the boiling point is reached prevents spillage. The system adds antifoam and enzymes automatically (when required).
Technical Specifications
| Sample size | 0.5 – 3g | |
| Measuring range | 0.1 % – 100 % | |
|---|---|---|
| Capacity per batch | Up to 6 samples | |
| Capacity per day | Up to 36 analysis (crude fibre method) | |
| Repeatability | ± 1 % relative at 5 % – 30 % fibre level | |
| Power supply | 200 – 240 V 50 – 60 Hz | |
| Power consumption | 2000 W | |
| Water supply | Fibertec 8000: Tap water minimum 2 l/min (4-25 °C, depending on water pressure), FT 121 Cold extraction unit: Tap water 2 l/min | |
| Weight | Fibertec™ 8000 : 67 kg FT 121 Fibertec™ : 14 kg | |
| W x D x H (mm) | Fibertec™ 8000 : 730 × 390 × 640 FT 121 Fibertec™ : 560 × 380 × 280 | |
| Accessories:Crucible stand for 6 crucibles, crucible holder, acid tank, alkali tank, NDS tank, ADS tankOptional accessories:Crucibles, P0 (porosity 160 – 250 µm), set of 6Crucibles, P1 (porosity 100 – 160 µm), set of 6Crucibles, P2 standard (porosity 40 – 100 µm), set of 6Crucibles, P2 US (porosity 40 – 60 µm), set of 6Crucibles, P3 (porosity 16 – 40 µm), set of 6 | ||
Highlights
Official Feference Method Results
The Fibertec™ 8000 provides official method results (ISO, AOAC), with the safest fibre analysis solution available for crude fibre, ADF, ADL and NDF. Non-attended measurement of up to six samples simultaneously releases staff to do other things – it can even run overnight.
No Sample Transfer
Samples are handled separately in standard filter crucibles which are used both as an integral part of the assembly during extraction, rinsing and filtration and as sample vessels during weighing, drying and ashing. Sample residue remains in the crucible during the whole procedure, avoiding sample transfer and associated risk of error.
On-Board Heating and Dispensing of Reagents
Innovative safety features help you to raise the safety level in everyday operations. All reagents are dispensed automatically avoiding any contact with hot chemicals and their fumes. In addition, automatic heat reduction when the boiling point is reached prevents spillage. The system adds antifoam and enzymes automatically (when required).
The FT 121 Fibertec Cold Extraction Unit
The FT 121 Fibertec™ cold extraction unit can be used in combination with the fully automated Fibertec™ 8000 for de-fatting samples and extraction at ambient temperatures and solvent dehydration of fibre residues.
