Foss – Digestor™ 2508 and 2520
Free up time for other tasks with fully automated digestion. Convenient, safe and flexible operation backed by data and application logging.
2501 Scrubber Unit
For Kjeldahl digestions the 2501 Scrubber Unit should always be considered for safe and efficient neutralisation of corrosive gases. This replaces the water aspirator, supplied as standard.
Exhaust manifolds

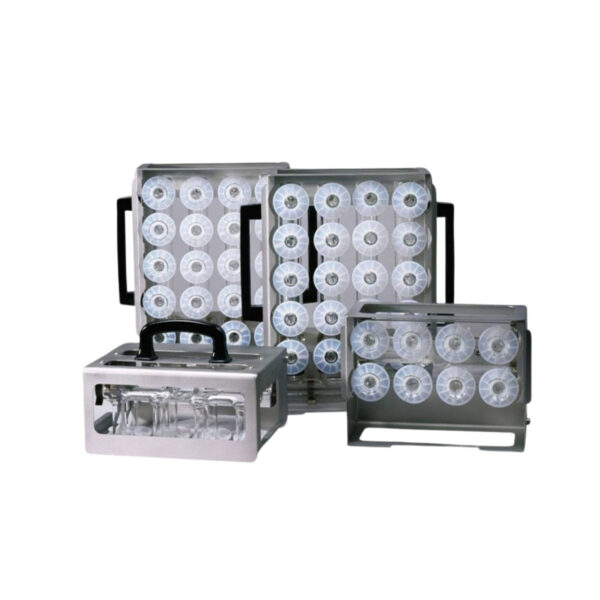

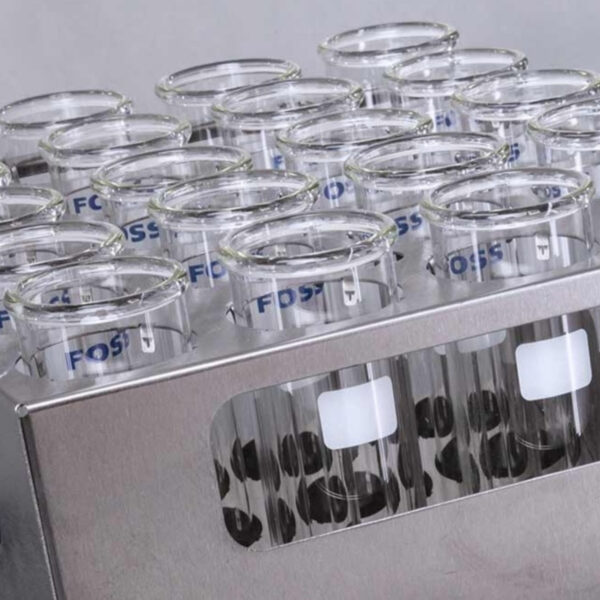

All models are delivered with a tube rack with integrated heat shields. They should always be combined with a matching exhaust manifold designed for each Digestion Unit facilitating fume removal, or reflux head and test tubes – 100 ml, 250 ml or 400 ml volume.
Software
Auto systems have memory for up to 127 FOSS Applications and 127 User Applications. There are currently more than 80 FOSS applications in the CD Library supplied.
Digestor™ 2508 and 2520
The 2508 and 2520 Digestor™ series for flexible and safe Kjeldahl digestion with different levels of automation.
| Digestor 2508 | Digestor 2520 | ||
|---|---|---|---|
| Tubepositions | 8 tubes | 20 tubes | |
| Automation | Automated | Automated | |
| Tube volume | **100 ml, 250 ml and 400 ml | 250 ml and 400 ml | |
| Options | Rack system / Auto lift / Exhaust / Scrubber | Rack system / Auto lift / Exhaust / Scrubber | |
| Power supply | 200-240 V, 50-60 Hz | 200-240 V, 50-60 Hz | |
| Power consumption | 1100 W | 2300 W | |
| W x D x H (mm) | 300 × 440 × 140 | 300 × 600 × 140 | |
| Water supply | EM 2508 Exhaust Manifold: 3 -5 l/min for 5 minutes, then 1 l/min | EM 2520 Exhaust Manifold: 10 – 12 l/min for 5 minutes, then 3-5 l/min | |
| Weight net | 10 kg | 18 kg | |
| * Time and temperature** Adapter required | |||
Technical Specifications
| Performance data at 230 V | |
|---|---|
| Temperature range | Ambient – 440°C |
| Temperature setting repeatability | 1°C |
| Temperature stability at 100°C | ± 2°C |
| Temperature stability at 400°C | ± 1°C |
| Heating up time 20 to 400°Cat 230 V | Digestor 2508: ~35 min Digestor 2520: ~40 min |
| Digestion application memory | Up to 254 |
| Digestion steps per application | Up to 23 |
| Lift connection | Yes, full control |
| Scrubber | Digestor 2508/2520: Yes, full control |
| Ventilation requirement | Exhaust system and Fume hood |
Learn How Automated Kjeltec Provides More Consistent Lab Results
