Foss – DT 208 & 220 Digestor™
Full integration with Kjeltec systems for efficient and cost effective operations. Accessories that reduce handling hazards with minimum bench space.
SR 210 Scrubber Unit
For Kjeldahl digestions the SR 210 Scrubber Unit should always be considered for safe and efficient neutralisation of corrosive gases. This replaces the water aspirator, supplied as standard.
Exhaust manifolds

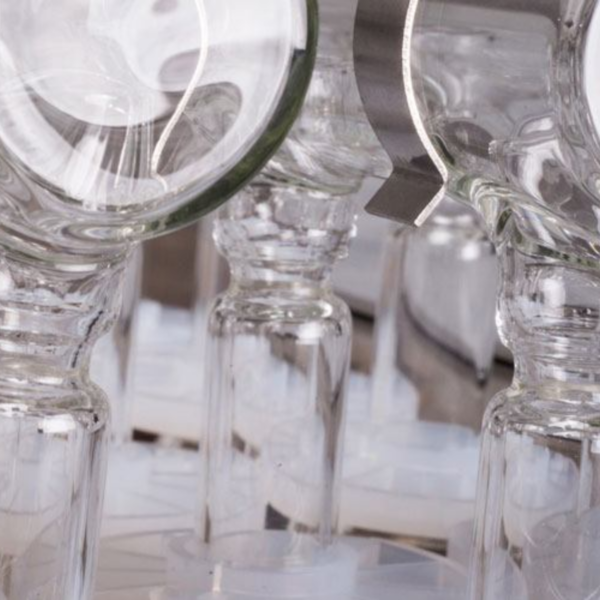

All models are delivered with a tube rack with integrated heat shields. They should always be combined with a matching exhaust manifold designed for each Digestion Unit facilitating fume removal, or reflux head and test tubes – 100 ml, 250 ml or 400 ml volume.
Technical Specifications
| Performance data at 230 V | DT 208 | DT 220 |
|---|---|---|
| Temperature range | Ambient – 440°C | Ambient – 440°C |
| Temperature setting repeatability | 1°C | 1°C |
| Temperature stability at 100°C | ± 2°C | ± 2°C |
| Temperature stability at 400°C | ± 1°C | ± 1°C |
| Heating up time 20 to 400°C at 230 V | ~35 min | ~40 min |
| Digestion application memory | Up to 254 | Up to 254 |
| Digestion steps per application | Up to 23 | Up to 23 |
| Lift connection / Scrubber | Yes, full control | Yes, full control |
| Tubes/batch | 8 tubes | 20 tubes |
| Power supply | 200-240 V, 50-60 Hz | 200-240 V, 50-60 Hz |
| Power consumption | 1100 W | 2300 W |
| Weight net | 10 kg | 18 kg |
| W x D x H (mm) | 300 × 440 × 140 mm | 300 × 600 × 140 mm |
| Water supply | EM 2508 Exhaust Manifold: 3 -5 l/min for 5 minutes, then 1 l/min | EM 2520 Exhaust Manifold: 10 – 12 l/min for 5 minutes, then 3-5 l/min |
| Ventilation requirement | Exhaust system and Fume hood | Exhaust system and Fume hood |
DT 220 Digestor
