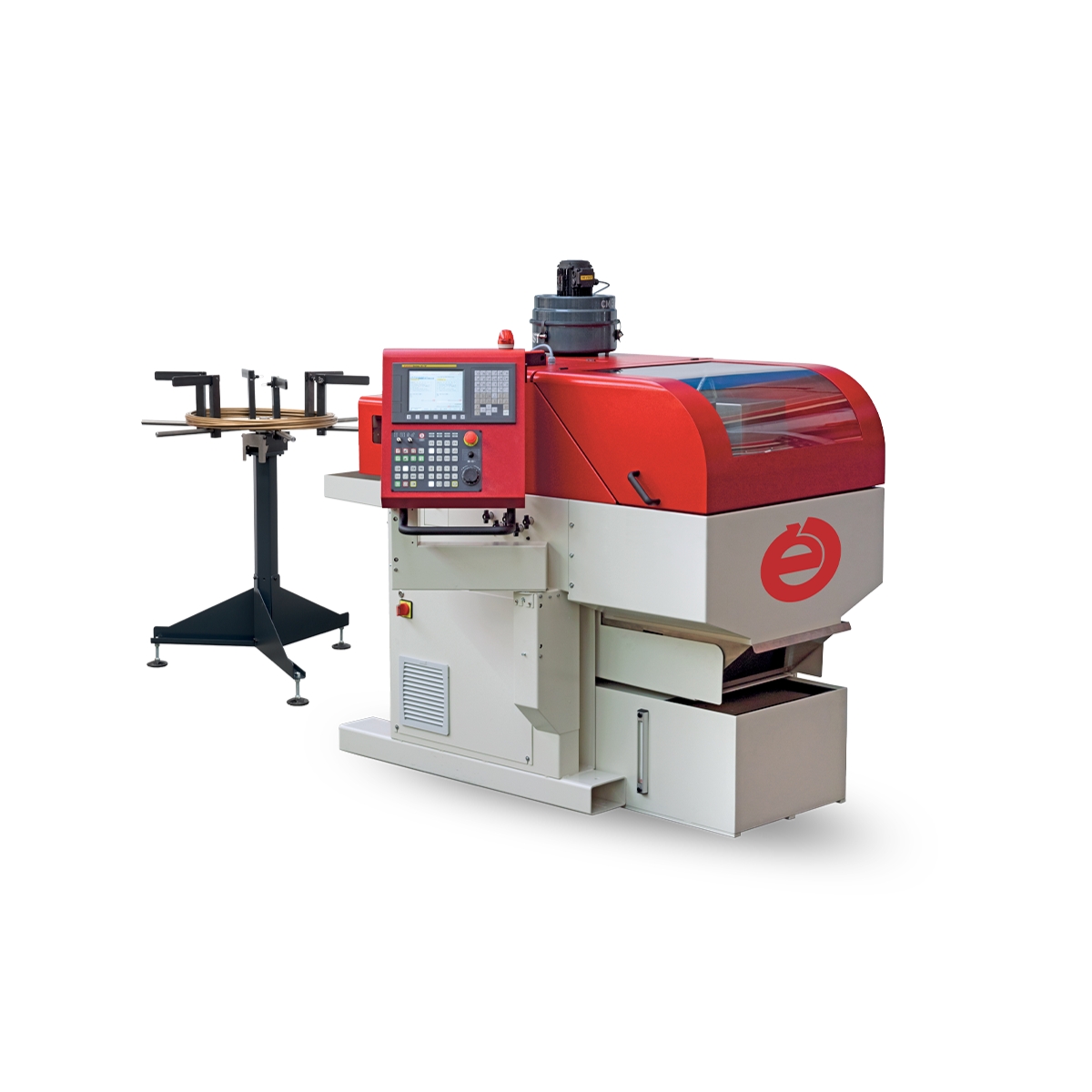

Escomatic – CNC – NM6 Flexi
Unveiled on the 5th of October 2015 at the EMO in Milan, a new machine comes to complete the renewal of the escomatic products. This machine takes its place in the center of the Esco SA range between the DX CNC (escomatic D2 / D5 CNC, D5 Ultra, D5 TWIN) and the EC (escomatic EC 8). It will succeed the New Mach 64x range which has held a successful position for many years.
Technical Specifications
| Turning | Secondary operations |
|---|---|
| Max material diameter : 6.50 mm | Number of front slides axial : 3 (+1 lateral option) |
| Work piece length standard : 150 mm | Number of rear spindles axial : 4 (+2 vertical option) + 2 or 4 tool holders |
| Number of tools : 4 | Max speed of counter spindle : 10’000 t/min. |
| Max tool head speed : 10’000 t/min. (12’000 option) | Included : C and Y-Axis |
Key Features
- More flexible, thanks to the possibility to program the secondary slides independently and because the straightening can be controlled and adjusted from the console
- Easier, through a wide-open access for the operator and the use of the latest programming technologies FANUC 0i-TF.
- Faster, because the independent functioning of the two front and back units will ensure for improved cycle times.
Key Industries
- Aerospace
- Automotive
- Machinery & Manufacturing
- Energy
- Semiconductor, Solar & Electronics
Brand
For over 60 years, the ESCO company has been dedicated to and specialized in the development and manufacturing of automatic and numerically-controlled lathes used for the production of small diameter parts ranging from 0.30 to 8.00 mm. Unlike conventional lathes, escomatic lathes are based on a unique concept. The material, which is coil stock or bar, does not rotate. The cutting tools are mounted onto the tool head which rotates around the material to produce the components. ESCO SA is represented by Agents or Distributors experienced on Escomatic products in more than 20 countries.
