Dubor – Spray Technology – TSA Airmix
DKSH offer DÜBÖR special release agents for bread cutters, bread slicers, cutting frames, dough dividers, dough funnels and dough shelves.
Available in :
With the Airmix method can process all known viscosities, nearly mist-free dispersion with precise dosage
Key Features
- Airmix low pressure manual spraying device
- Compact tabletop device, also available with wall bracket
- For all release agents
Available Models
Technical Specifications
| Max. operating pressure | 2,5 bar, oil-free |
| Working pressure | 0,1 – 0,5 bar |
| Filling volume | 5 l |
| Compressed-air consumption | approx. 60 l / min |
| Dimensions (W x D x H) | 300 x 300 x 330 mm |
| Empty weight | approx. 6 kg |

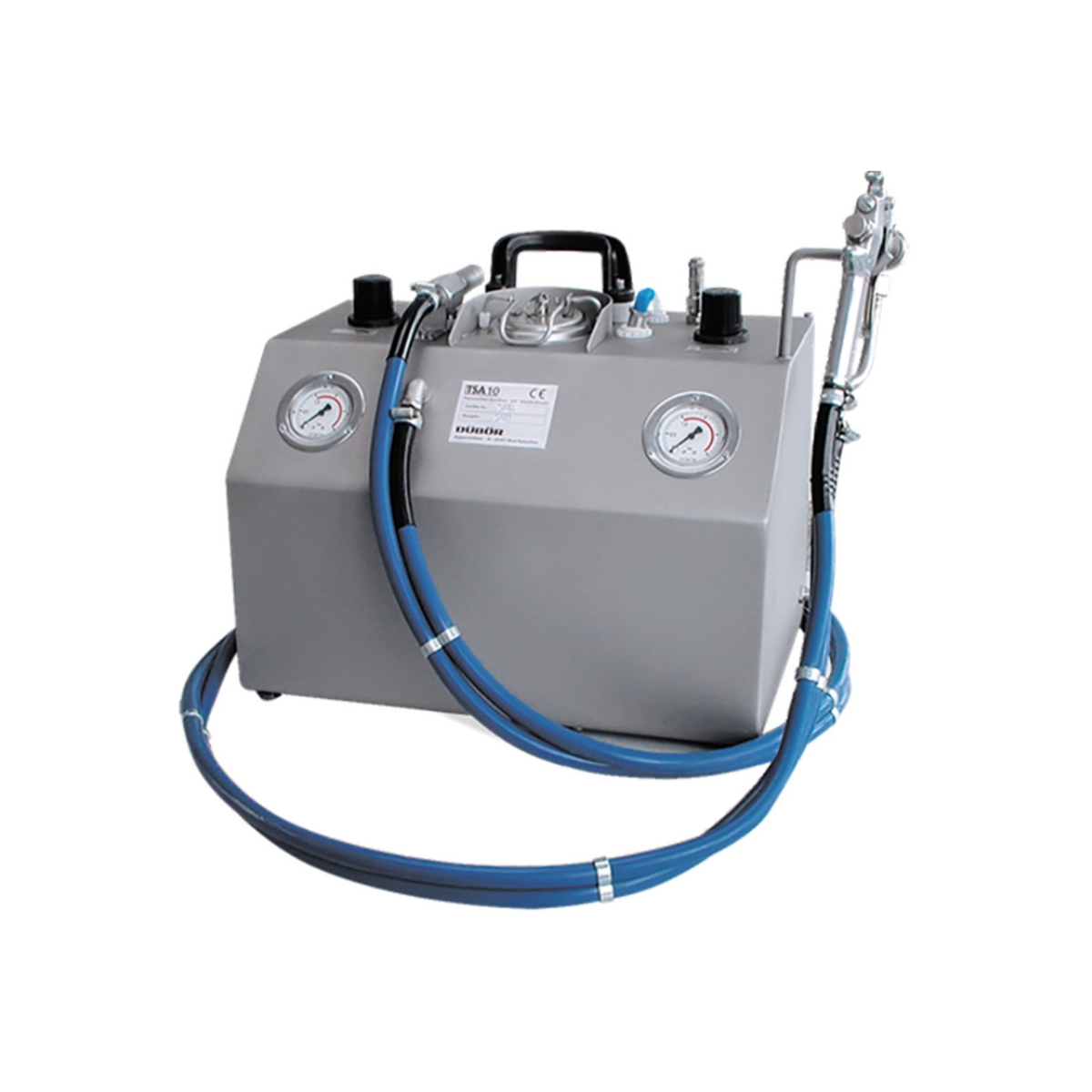

Key Features
- low-pressure handspray unit
- small, compact spray unit
- low space requirement, portable
- stainless steel pressure tank
- 5 liters
Technical Specifications
| Max. operating pressure | 2.5 bar, oil-free |
| Working pressure | 0.1-0.5 bar |
| Filling volume | 10 litres |
| Compressed-air consumption | approx. 120 l / min. |
| Dimensions (W x D x H) | 510 x 350 x 460 mm |
| Weight | approx. 18 kg |
Key Features
- low-pressure handspray unit
- compact tabletop unit
- stainless steel pressure tank
- 10 liters
Technical Specifications
| Max. Operating pressure | 2,5 bar, oil-free |
| Working pressure | 0.1 – 0.5 bar |
| Filling volume | approx. 19,5 litres |
| Compressed-air consumption | approx. 60 l / min. |
| Dimensions (W x D x H) | 400 x 400 x 800 mm |
| Weight | approx. 12 kg |

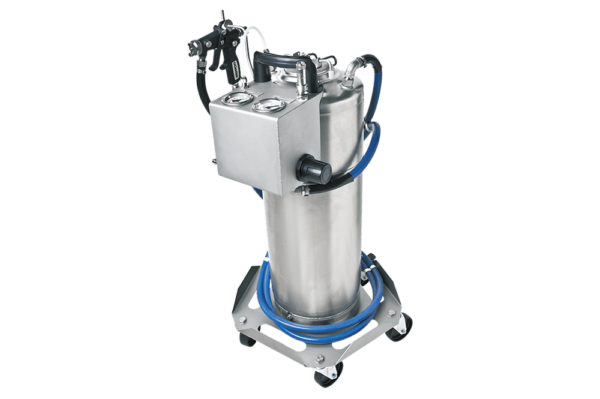

Key Features
- low-pressure Handspray unit
- wheeled
- low-pressure / Airmix
- stainless steel pressure tank
- 19,5 liters
Technical Specifications
| Max. Operating pressure | 2,5 bar, oil-free |
| Working pressure | 0.1 – 0.5 bar |
| Filling volume | approx. 38 litres |
| Compressed-air consumption | approx. 120 l / min. |
| Spray output | 380 g / Min. |
| Weight | approx. 30 kg |

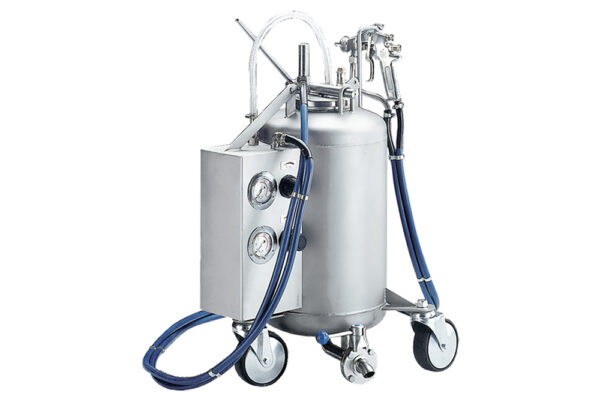

Key Features
- low-pressure spray unit
- wheeled
- stainless steel pressure tank
- drain tap
- 38 liters
Technical Specifications
| Max. Operating pressure | 6 bar, oil-free |
| Working pressure | 0.1 – 0.5 bar |
| Filling volume | 19,5 litres |
| Dimensions (W x D x H) | 530 x 475 x 1430 mm |
| Weight | 28 kg |
Key Features
- low-pressure Handspray unit
- for all release agents
- wheeled
- 19,5 liters
Technical Specifications
| Max. Operating pressure | 6 bar, oil-free |
| Working pressure | 0.1 – 0.5 bar |
| Dimensions ( W x D x H) | 530 x 475 x 1430 mm |
Key Features
- mobile spray unit
- for all release agents
- wheeled
- low-pressure / Airmix
- 30 liter returnable KEG system
Technical Specifications
| Max. compressed-air | 4 bar, oil-free |
| Working pressure | 0.1 – 0.5 bar |
| Dimensions (W x D x H) | 470 x 230 x 630 mm |
| Weight | 18 kg |
Key Features
- spray unit for all release agents
- as wall or table unit
- space-saving
- low-pressure / Airmix
- for use with all container sizes
Technical Specifications
| Max. Operating pressure | 6 bar, oil-free |
| Working pressure | 0.1 – 0.5 bar |
| Dimensions (W x D x H) | 530 x 475 x 1430 mm |
Key Features
- mobile spray unit
- for all release agents
- wheeled
- low-pressure / Airmix
- for 15 liter can
The company DÜBÖR, a specialist for release agents and spraying equipment, has focused on the manufacture of a wide range…
